* Display Type: Active Matrix TFT LCD,LED Backlight
* Touch Type: PCAP,10 Points Touch
* Water-proof/Dust-proof/Explosion-proof: IP65(Front)/IK06(Front)
* Interface: VGA, DVI (optional HDMI,DP)
* Touch Systems: Windows,Android,Linux
* Certificates: RoHS,FCC,CE,CB,HDMI Testing
* Warranty: 1 Year

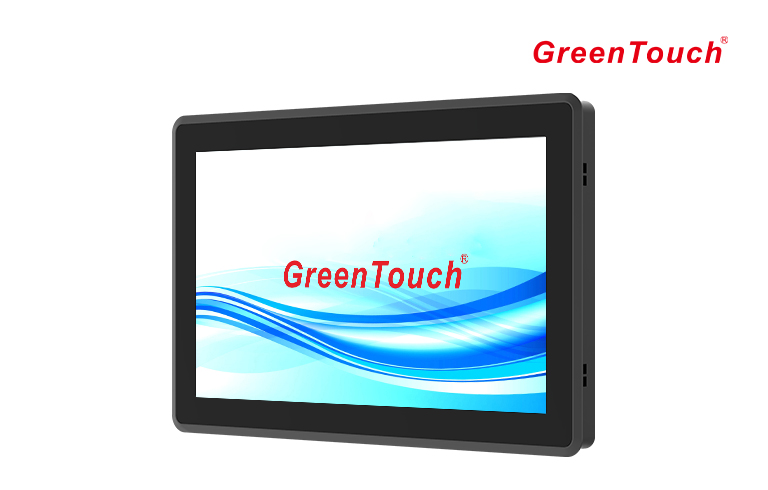

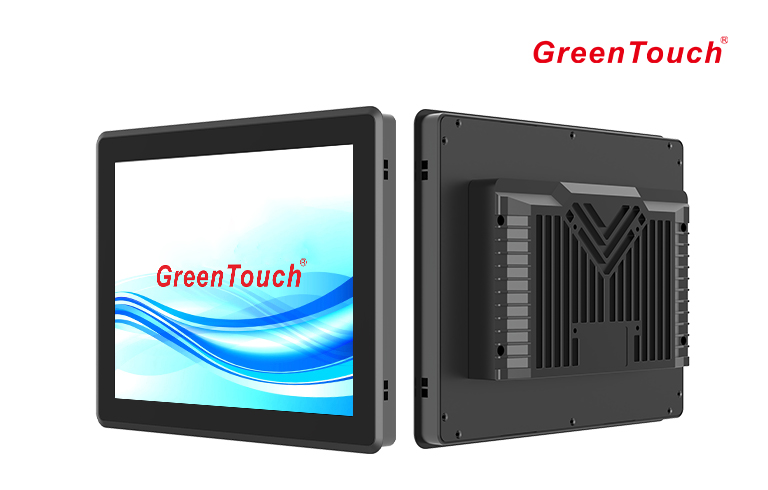

GreenTouch industrial touch monitor adopts a precise small frame design, which completely seals the touch screen, making it better dustproof, antifouling and waterproof. The model adopts aluminum alloy custom mold, one-time die-casting, with durable military quality; the rear shell adopts fin-type heat dissipation design to increase the heat dissipation area. GreenTouch industrial touch monitors are fully configured and available in various sizes, and support customized services such as LCD brightness, customer LOGO, and interfaces.
♦ Using LG, AUO, Chi Mei, Mitsubishi, BOE original industrial screen
♦ Industrial grade LED panel, 50,000 backlight life
♦ Flat front IP65 waterproof and dustproof

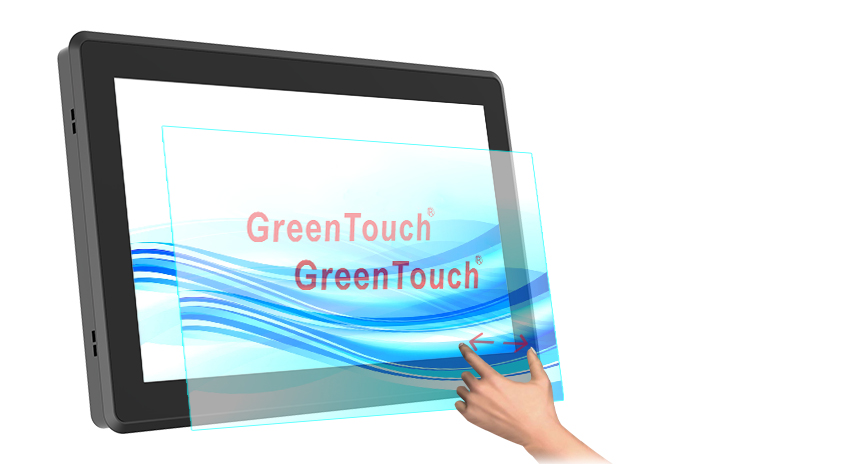

♦ 10-point capacitive touch, touch response time>20ms
♦ Meets EMC anti-interference standards
♦ One-piece forming, standard structure, tighter overall
♦ Fully enclosed fanless silent design, dustproof and thickened aluminum alloy heat dissipation

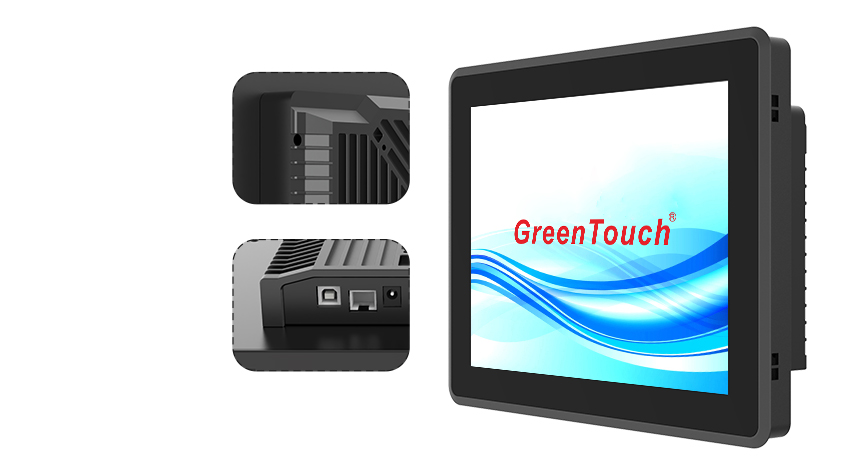

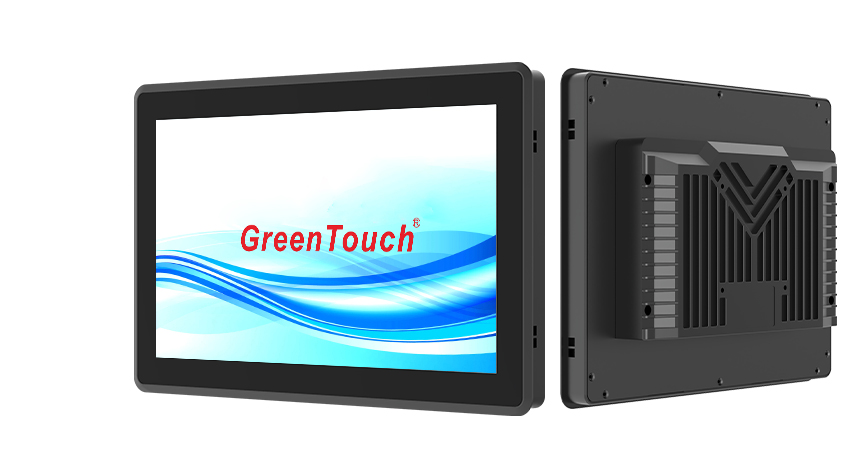

The display frame back shell adopts aluminum alloy custom mold, one-time die-casting, more standard structure and tighter overall.

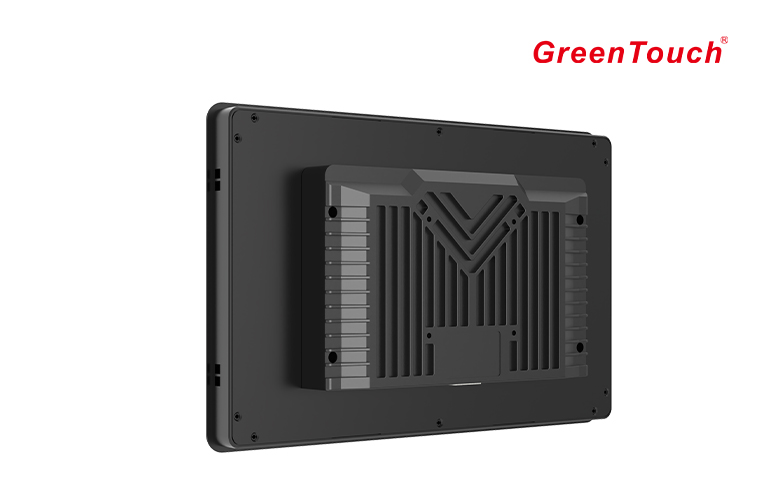

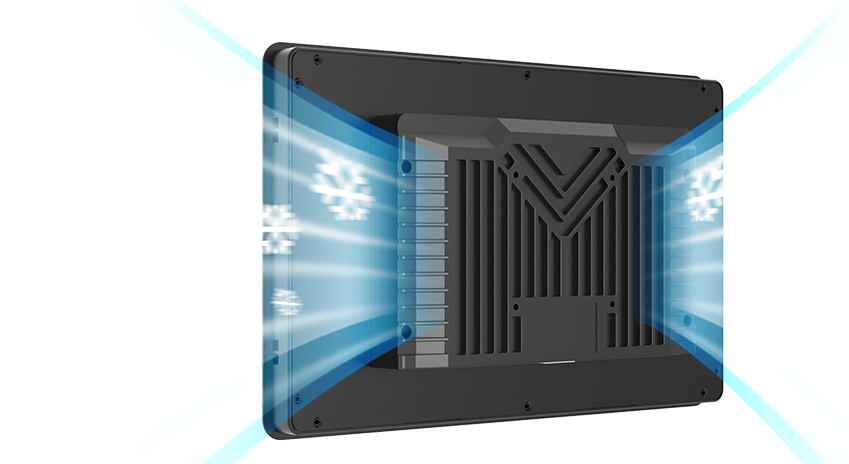

The rear shell of the machine adopts a fin-type heat dissipation design to increase the heat dissipation area; no fan and zero noise, it can run stably even under 7*24 hours of high-intensity work.
① Product size
② Customer Logo
③ LCD brightness(250-800 cd/m²)
④ Glass of surface treatment AG,AF,AR

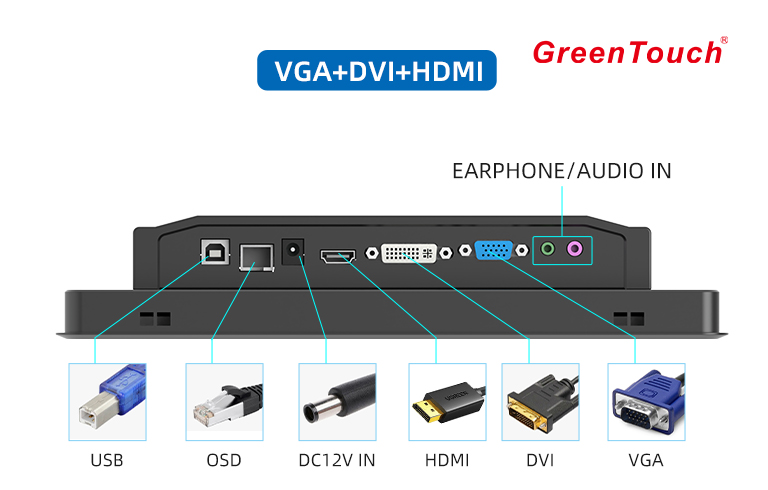

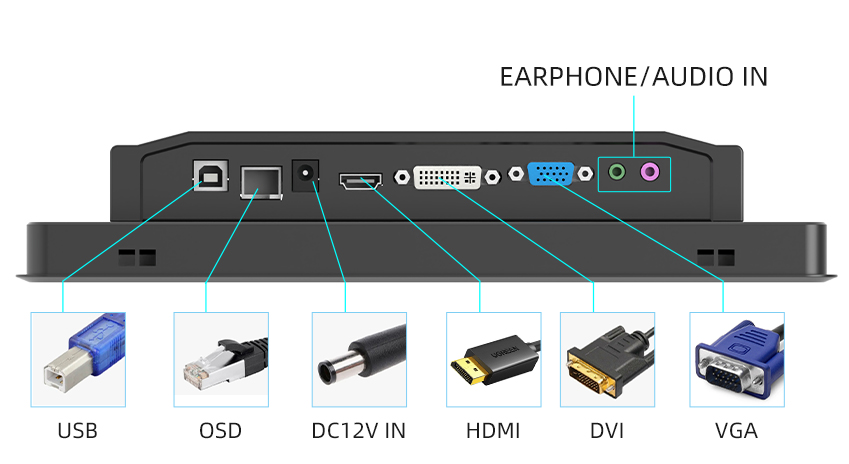

⑤ Display ports（ VGA,DVI,HDMI,DP,USB or more）

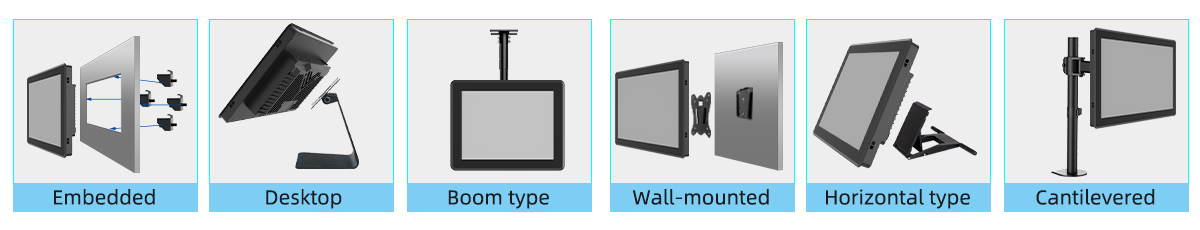

Installation
Application Scenario
| Size | Model | Display ports | Ratio | Display Size (W*H*T) | Active Area Dimensions(H*V) | Brightness (nits） | Resolution @60Hz | Data Download |
| 10.1" | GT-TM1013D | VGA,DVI,HDMI,DP | 16:10 | 263x182x55mm | 217x136mm | 500 | 1280 x 800 | |
| 10.4" | GT-TM1043D | VGA,DVI,HDMI,DP | 4:3 | 266x213x55mm | 210x158mm | 400 | 1024 x 768 | |
| 12.1" | GT-TM1213D | VGA,DVI,HDMI,DP | 4:3 | 299x237x55mm | 246x184mm | 500 | 1024 x 768 | |
| 13.3" | GT-TM1333D | VGA,DVI,HDMI,DP | 16:9 | 346x218x55mm | 294x166mm | 300 | 1920 x 1080 | |
| 15" | GT-TM1503D | VGA,DVI,HDMI,DP | 4:3 | 364x288x56mm | 304x228mm | 300 | 1024 x 768 | |
| 15.6" | GT-TM1563D | VGA,DVI,HDMI,DP | 16:9 | 397x246x56mm | 344x194mm | 250 | 1920 x 1080 | |
| 17" | GT-TM1703D | VGA,DVI,HDMI,DP | 5:4 | 395x328x56mm | 338x270mm | 250 | 1280x1024 | |
| 18.5" | GT-TM1853D | VGA,DVI,HDMI,DP | 16:9 | 465x286x56mm | 410x230mm | 250 | 1366x768 | |
| 19" | GT-TM1903D | VGA,DVI,HDMI,DP | 5:4 | 431x356x56mm | 376x301mm | 250 | 1280x1024 | |
| 21.5" | GT-TM2153D | VGA,DVI,HDMI,DP | 16:9 | 523x323x56mm | 476x268mm | 250 | 1920 x 1080 | |
| 23.6" | GT-TM2363D | VGA,DVI,HDMI,DP | 16:9 | 583x346x56mm | 521x293mm | 250 | 1920 x 1080 | |
| 23.8" | GT-TM2383D | VGA,DVI,HDMI,DP | 16:9 | 583x355x56mm | 527x296mm | 250 | 1920 x 1080 |
