High brightness LCD digital signage 43 to 65 inches

* Panel technology: IPS, M+ (WRGB)

* Touch Type: No touch or 10-point nano touch

* Contrast ratio: 5000:1

* Resolution: 1920 X 1080p (4K optional)

* Display Color: 16.7M

* Material management: video, audio, pictures

* Video output port: 1 HDMI1.4 standard interface

* Interface: 2 USB external interfaces

* Motherboard: Optional Android/Windows/stand-alone version

* Water-proof/Dust-proof/Explosion-proof: IP65(Front)/IK08(Front)

* Surface treatment: AG AR AF (optional)

* Certificates: UL, CUL (Recognized), FCC, CE, CB, China ROHS CQC

* Warranty: 1 year


Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

    Product Overview

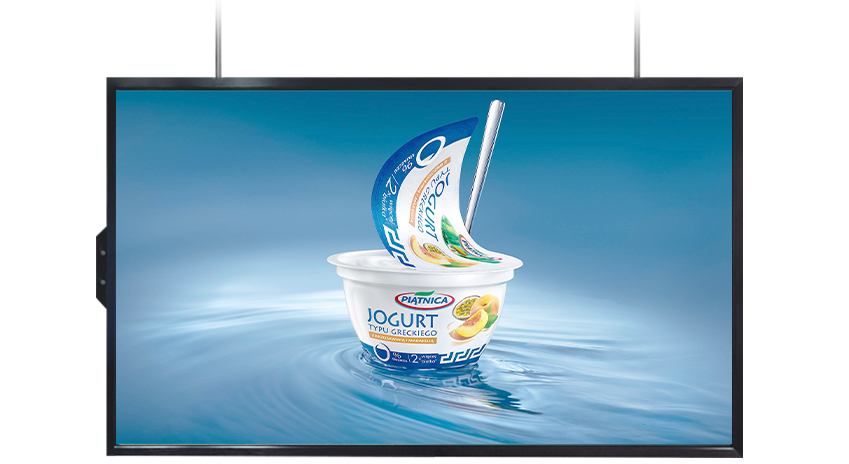

    GreenTouch high-brightness LCD digital signage adopts ultra-thin metal shell, which is simple and stylish, beautiful and atmospheric, and has a 178° ultra-wide high-definition viewing angle. 1080P high-definition picture quality, restore the real visual enjoyment; support horizontal and vertical screen playback, automatic loop playback, intelligent split screen playback. This model is rich in functions, the playback interface can be freely changed to settings, the machine can be switched on and off regularly, managed and released in the cloud, one machine can be connected to multiple devices, and the U disk can be automatically recognized and played. Various version configurations are optional, support custom LOGO, to meet the application needs of various scenarios.


    Product Structure

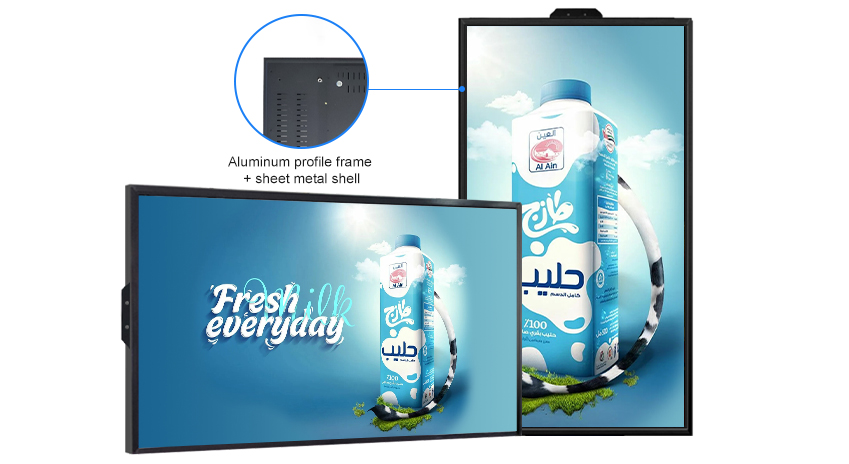

    1. Ultra-thin aluminum profile frame + sheet metal shell/black, the appearance is simple and fashionable

    2. Adopt high-brightness display, the brightness reaches 2500nits, and the design life is 50000h

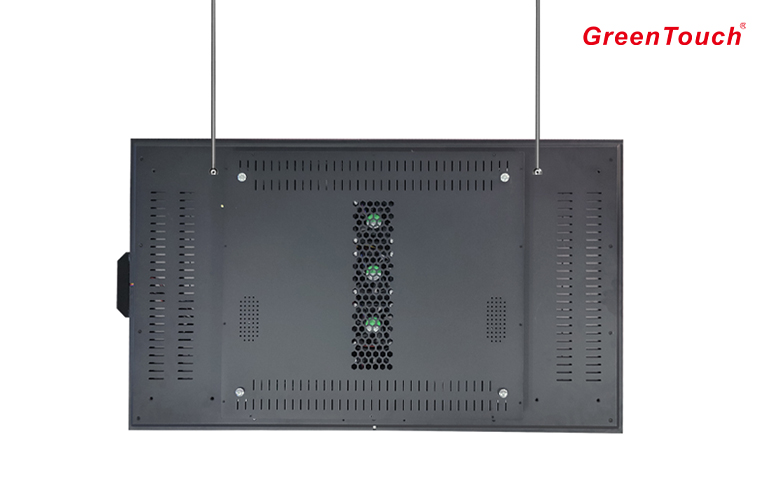

    3. Built-in 4 silent fans to ensure heat dissipation, and the low-noise design allows the product to integrate with the surrounding environment

    Product Features

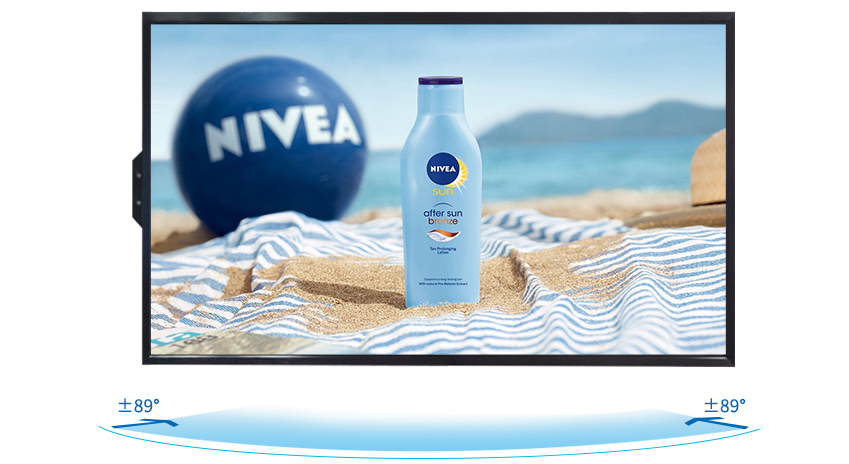

    ♦ The panel adopts IPS technology, with a viewing angle of up to 178°

    ♦ The front of the display screen reaches IP65 waterproof and dustproof, IK08 explosion-proof grade

    ♦ 7*24 hours of stable work, support timing switch, timing playback

    ♦ Support U disk automatic identification content playback

    ♦ It can automatically adjust the brightness according to the light and dark of the environment

    ♦ Standard equipped with wall bracket installation, optional hanging bracket and floor bracket

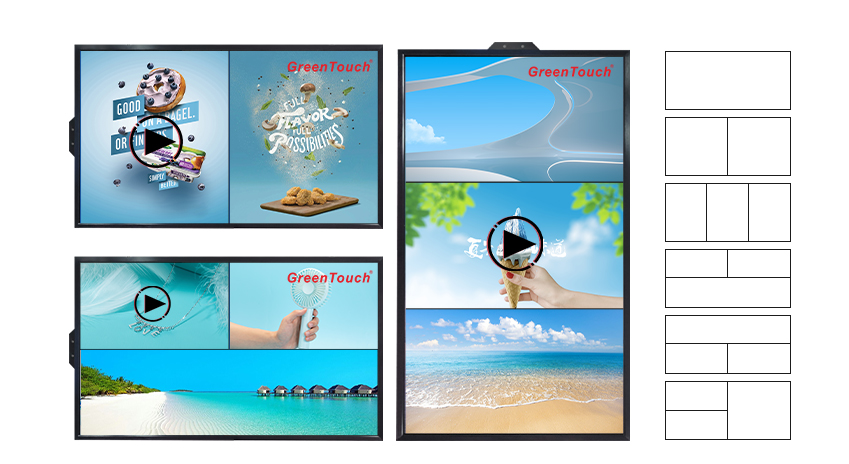

    Intelligent Split Screen System

    ⑴ Can support a variety of split screen methods. When creating an ad, you can stretch and drag the display area and size freely.

    ⑵ You can edit video, pictures, subtitles, RSS text, mix broadcast, time, weather, logo, web page, SWF, AV synchronous playback, etc.;

    ⑶ The system has a digital calendar clock, weather forecast and program template library, supports self-designed templates, and provides template preview function.



    System compatibility and scalability

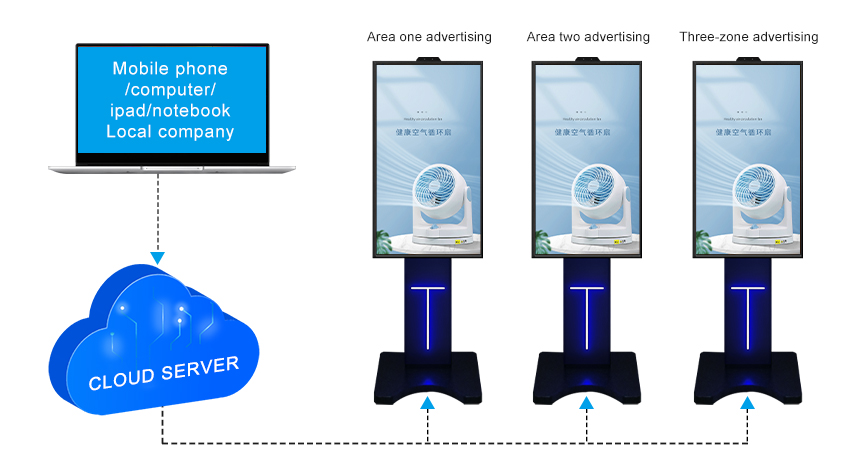

    The system adopts B/S architecture, without installing the client, you can open the IE browser on any computer to log in to the control background, and perform any cloud management on all terminals.

    Picture special effect playback - You can set the picture playback special effect function, such as: blinds.

    Live Streaming - Supports various forms of live streaming such as live streaming, live web video, etc.

    Play plan management - all the programs that need to be sent can be planned in advance.

    Remote control terminal - through management software, remote power on/off, restart, volume, etc.

    Remote real-time monitoring - can remotely monitor terminal dynamics in real time.

    Timing switch - can set multiple rounds of timing switch


    Extended functions (customizable)

    It can support the expansion of camera (video call, face recognition), microphone, touch screen, printer, QR code scanning, motion sensor, light box, virtual display, card reader, one-key alarm, voice control module and other functions.

    Technical parameter


    Installation

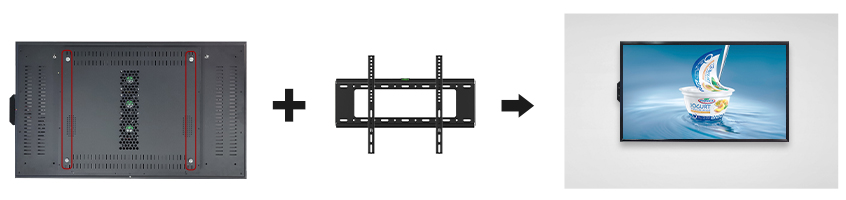

    (Mounting option 1) 400*500mm VESA hole for wall mounting

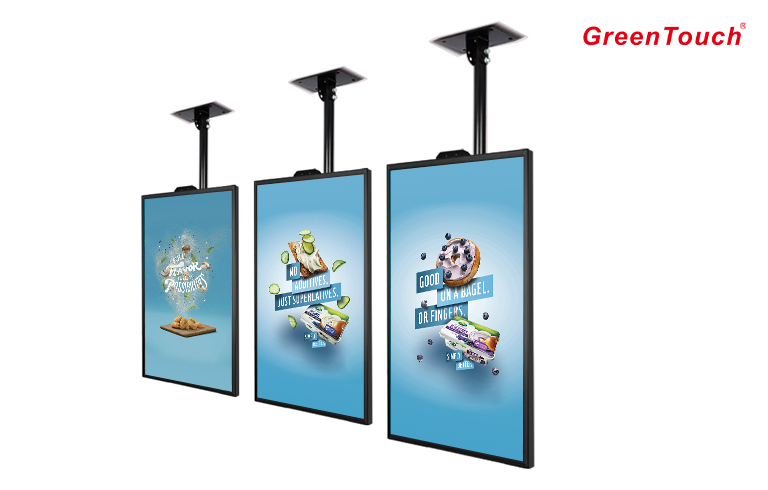

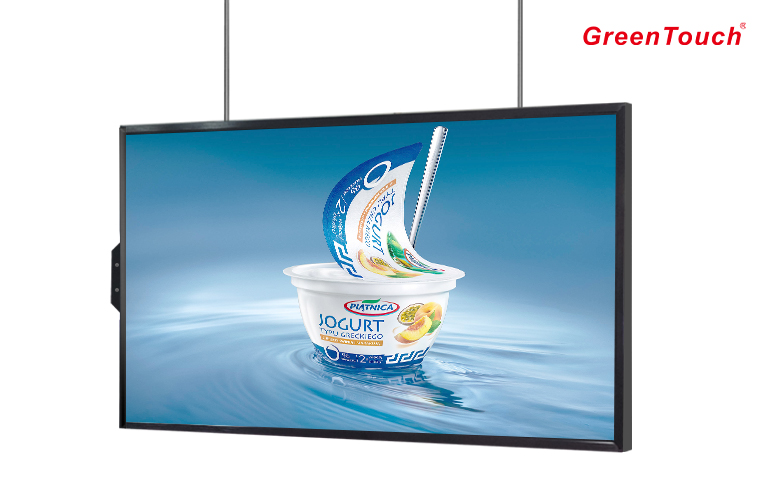

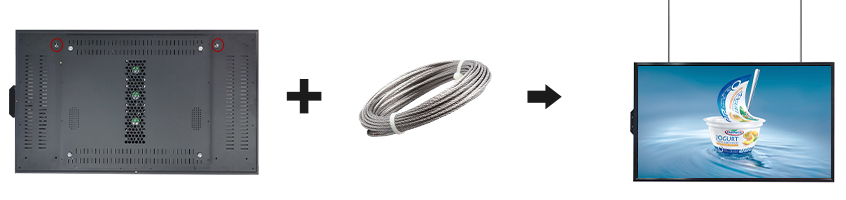

    (Mounting option 2) Hanging bracket mounting with handle holes

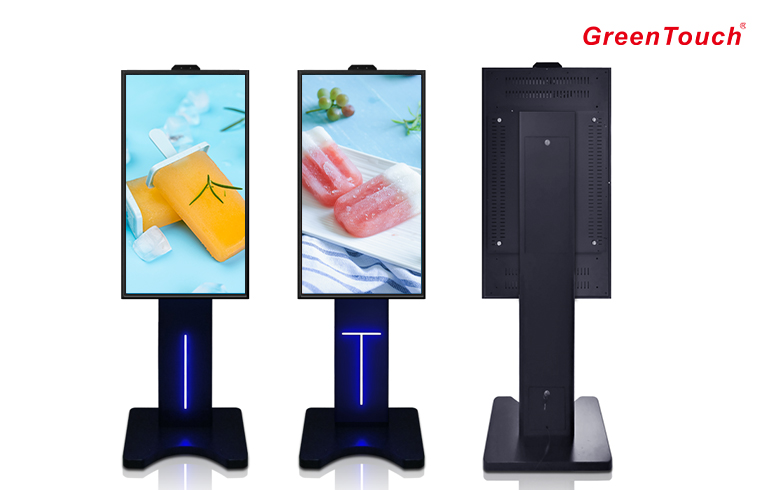

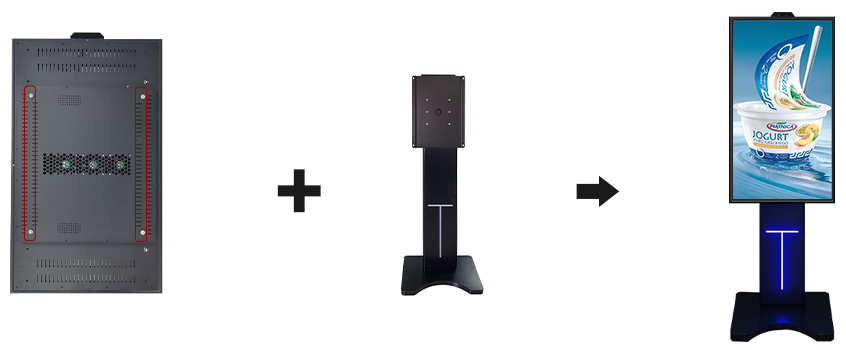

    (Mounting option 3) 400*500mm VESA hole for floor stand mounting

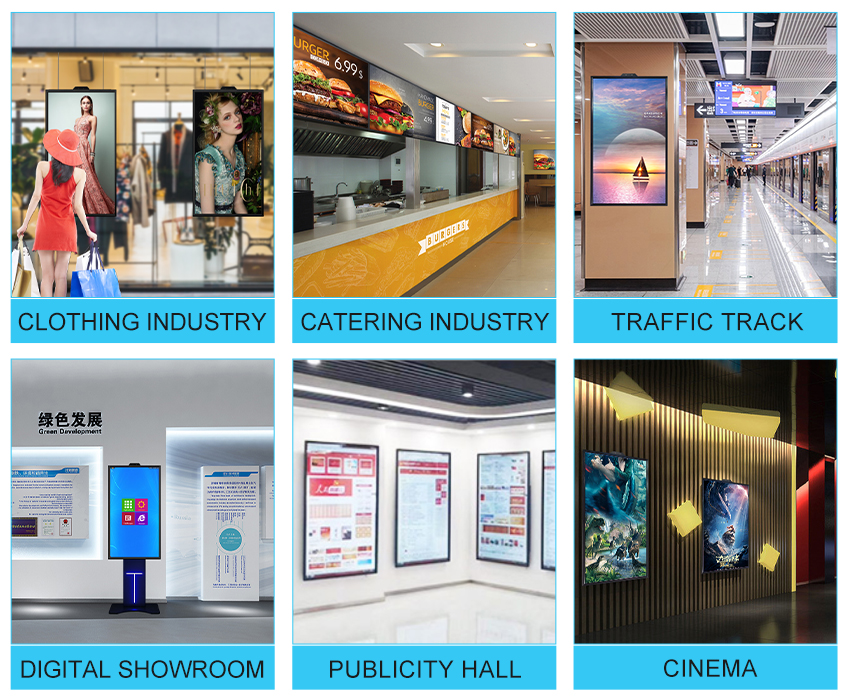

    Application Scenario




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download
    43"CC-430WDHDMI,USB*2

    16:9

    981.9x570.1x78.8mm944.5×532.7mm2500 1920 X 1080

    Download

    55"CC-550WDHDMI,USB*2

    16:9

    1250.2x720.2x78.6mm1212.8×682.8mm2500 1920 1080

    Download

    65"

    CC-650WD

    HDMI,USB*216:91469.6x845.6x83.3mm1432.2×808.2mm25001920 X 1080

    Download
