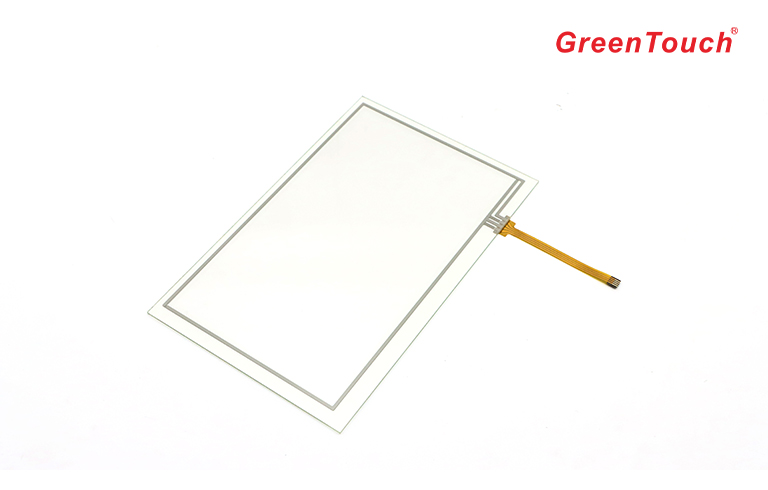

Resistive Touch Screen 2.7 to 10.1 inches
  • Size:2.7"-10.1"

  • Touch Type:4 Wire Resistive,Single Touch

  • Material:Film+Glass,Film+Film

  • Resolution:4096 X 4096

  • Surface Hardness:≥3H

  • Warranty:1 Year

  • OEM/ODM: Support

  • Certificates:CE,FCC,RoHS

  • Operation Systems:Windows,Android,Linux


Contact us
+(0086) 13823548639
peter@greentouch.com.cn
wanli889
Product video

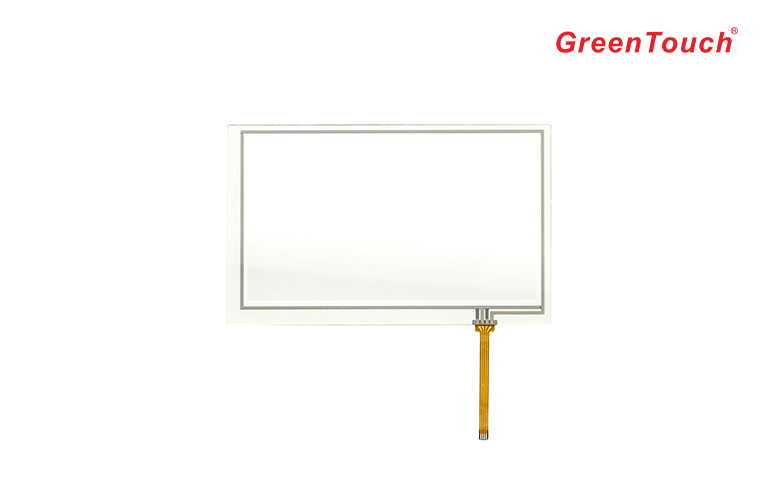

    Product  Overview

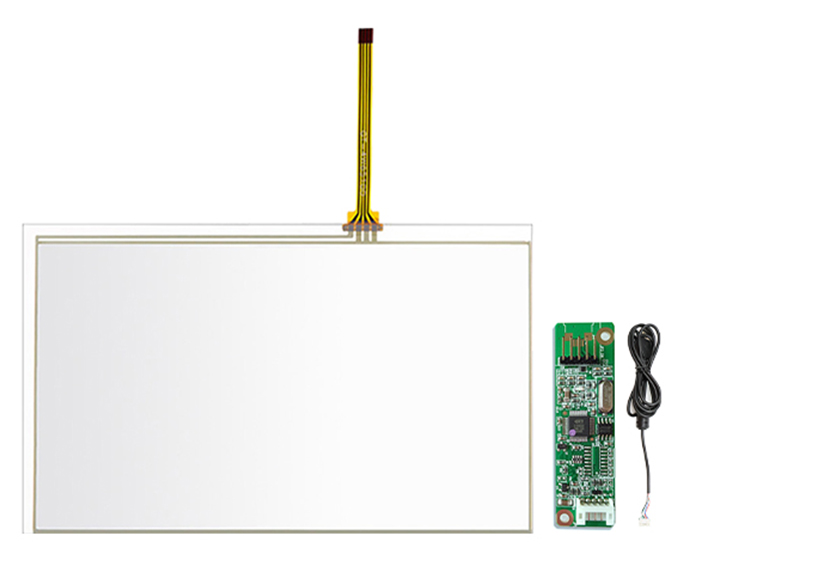

    GreenTouch touchscreens are based on proven 4-wire resistive technology,the preferred solution for applications that demand reliability,input flexibility,and anti-interference.The screens work with standard EETI/GreenTouch controller/chip solutions and drivers under a wide variety of operating systems,and are available in a set of standard products as well as customized designs.




    Product Quality And Service

    GreenTouch's resistive touchscreens are available with proprietary GreenTouch technology to deliver a touch response that is drift-free and accurate in high-use applications.These touch screens provide a longer product life,designed to withstand more than 1 million touches.

    We use stable IC and bonding equipment to maintain high yield and quality.Touch function requires professional calibration to avoid the interference of the motherboard,driver board and other electrical appliances to achieve the best experience.We have professional knowledge,technology and clean room to bring customers high reliability products!

    Product Features

    ♦ Pure plane structure,excellent craftsmanship,slim and smooth design,total thickness about 2.3mm.

    ♦ Accurate touch,high sensitivity,smooth writing,no disconnection,no drift.

    ♦ Can be sealed against contamination,support NEMA 4/4x/12.

    ♦ Can meet the pencil hardness 3H per ASTM D3363.

    ♦ Use mist hard coating & anti-newton rings,prevent scratches.

    ♦ Own class 1,000 clean room,full inspection,high quality,fast delivery.

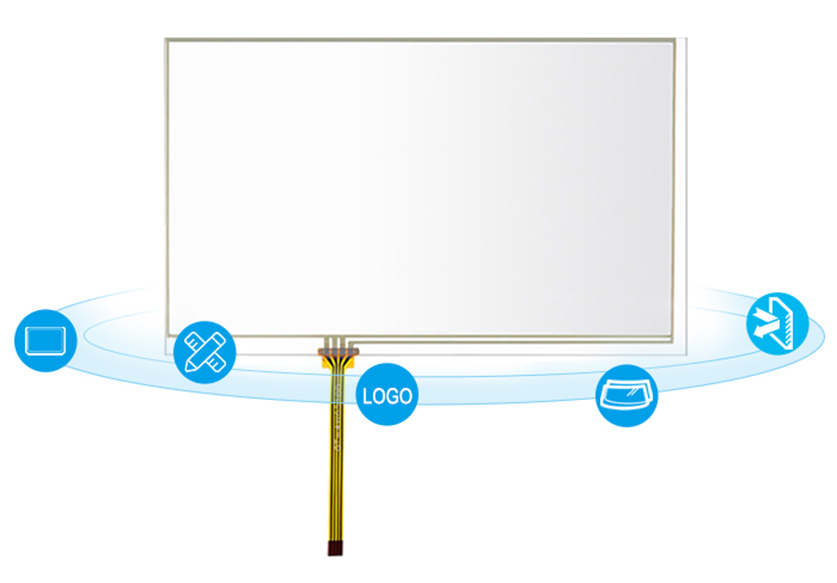

    Product Customizable

    ① Touch screen size

    ② FPC outlet location

    ③ ITO glass thickness

    ④ Customer Logo

    ⑤ Matte anti-newton ring

    Technical parameter
    Product Name:Four Wire Resistive Touch ScreenRegular Size:
    2.7",4.3",5.7",6.0",6.2",6.5",7",9.0",9.7",10.1"

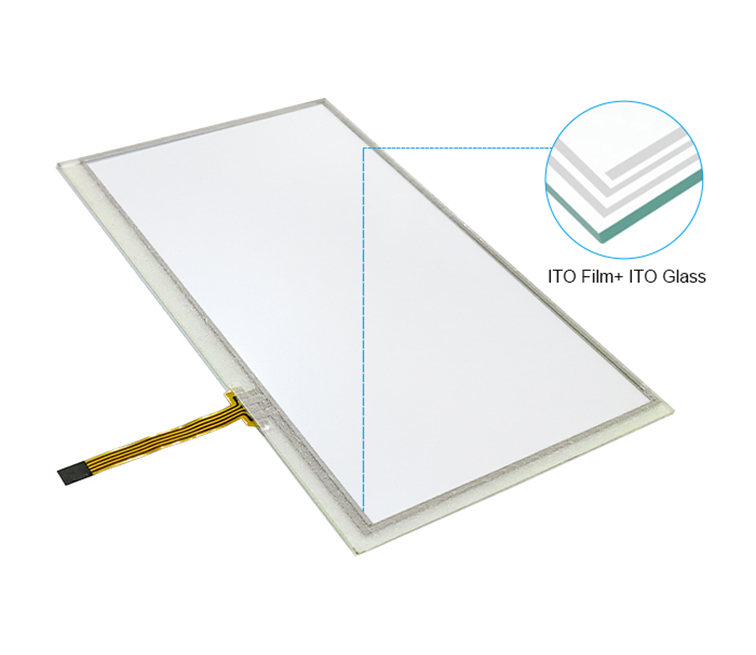

    Product Structure:ITO Film+ITO Glass,ITO Film+ITO FilmLight Transmissi On:≥75%
    Input Method:Finger,Pen StylusInsulation Impedance:Exceeds 20M ohm,@DC 25
    Operational Voltage:2.5V to 5V DCSurface Hardness:3H
    Touch strength:>80 g(Finger),>50 g(Pen Stylus)Touch Durability:1 Million Touches
    Operation Temperature:-20° C -65° CStorage Temperature:-30° C~ 70° C
    Humidity:90% RH,NoncondensingResponse Time:<10ms
    Support Systems:Windows,Android,LinuxResolution:4096 X 4096
    Product Certified:CE,FCC,RoHSWarranty:1 Year

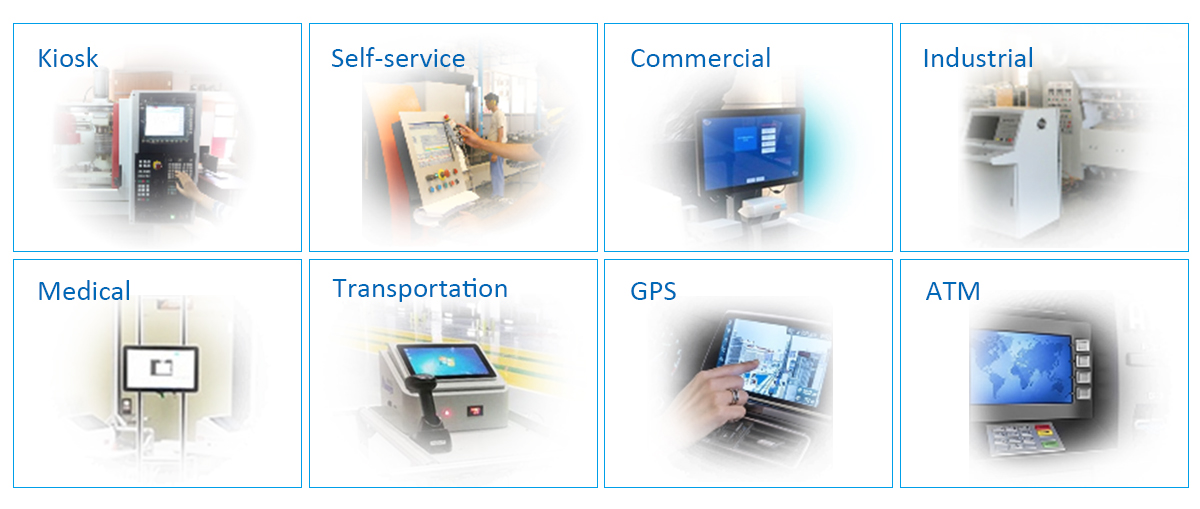

    Product Applications


    Resistive touch screens are widely used inquiry machines,vending machines,POS machines,ATM,GPS,industrial/pharmacy automation,etc.





    Product Packaging




    Specification and download

          Size

                Model

             Dimensions

             View Area

                   Support Systems

       Proportion

        Drawing Download

    2.7"

    GT-4W-2.7A-1

    63*58mm

    60*35mm

    Windows,Android,Linux

    16:9

    GT-4W-2.7A-1

    2.7"

    GT-4W-2.7B-1

    65*46mm

    59*40mm

    Windows,Android,Linux

    16:9

    GT-4W-2.7B-1

    4.3"

    GT-4W-4.3A-1

    103*66mm

    99*58mm

    Windows,Android,Linux

    16:9

    GT-4W-4.3A-1

    5.7"

    GT-4W-5.7A-1

    132*104mm

    123*94mm

    Windows,Android,Linux

    4:3

    GT-4W-5.7A-1

    6.0"

    GT-4W-6.0A-1

    138*101mm

    124*92mm

    Windows,Android,Linux

    4:3

    GT-4W-6.0A-1

    6.2"

    GT-4W-6.2A-1

    165*70mm

    154*59mm

    Windows,Android,Linux

    16:9

    GT-4W-6.2A-1

    6.5"

    GT-4W-6.5A-1

    152*117mm

    136*102mm

    Windows,Android,Linux

    4:3

    GT-4W-6.5A-1

    7.0"

    GT-4W-7.0B-1

    165*104mm

    155*94mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0B-1

    7.0"

    GT-4W-7.0B-2

    165*104mm

    155*94mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0B-2

    7.0"

    GT-4W-7.0C-1

    164*103mm

    155*94mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0C-1

    7.0"

    GT-4W-7.0C-2

    164*103mm

    155*94mm

    Windows,Android,Linux

    16:9

    GT-4W-07PC-2

    7.0"

    GT-4W-7.0D-1

    165*104"

    154*93mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0D-1

    7.0"

    GT-4W-7.0K-1

    164*100mm

    156*89mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0K-1

    7.0"

    GT-4W-7E-1

    161*105mm

    153*96mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0E-1

    7.0"

    GT-4W-7H-1

    164*103mm

    155*94mm

    Windows,Android,Linux

    16:9

    GT-4W-7.0H-1

    7.0"

    GT-4W-7J-1

    172*115mm

    154*86mm

    Windows,Android,Linux

    16:9

    GT-4W-7J-1

    9.0"

    GT-4W-9.0A-1

    211*126mm

    200*113mm

    Windows,Android,Linux

    16:9

    GT-4W-9.0A-1

    9.0"

    GT-4W-9.0B-1

    210*126mm

    201*115mm

    Windows,Android,Linux

    16:9

    GT-4W-9.0B-1

    9.7"

    GT-4W-9.7A-1

    210*164mm

    200*152mm

    Windows,Android,Linux

    4:3

    GT-4W-9.7A-1

    10.1"

    GT-4W-10.1A-1

    235*143mm

    225*128mm

    Windows,Android,Linux

    16:9

    GT-4W-10.1A-1


    Resistive touch screen calibration software download
