Product Name: Waterproof Infrared Touch Screen
Regular Size:15"-21.5"
Touch Points:10 Touch Points
Material: Injection Molding Frame+Tempered Glass
Interface:USB,Plug And Play
Certificates:CE,FCC,RoHS
Warranty:1 Year
Support Systems:Windows,Android,Linux,Mac
GreenTouch TE series waterproof infrared touch screen is suitable for standard size LCD screen equipment or special equipment that needs to achieve waterproof effect. This product can achieve IP65 waterproof and dustproof, can withstand long-term exposure to sunlight and rain, can resist light at all angles, and can operate touch functions normally under strong light. This series of infrared touch frames has self-developed programs and the latest algorithms, with USB2.0+UATR interface plug-and-play, supports IPA (software interface) and is driver-free. It is widely used in self-service vending machines, outdoor smart charging piles, outdoor advertising all-in-one machines, outdoor inquiry machines, self-service express cabinets and other outdoor waterproof equipment.
♦ Multi-touch: 10-point infrared touch, fast response and no drift, no continuous touch, no jump;

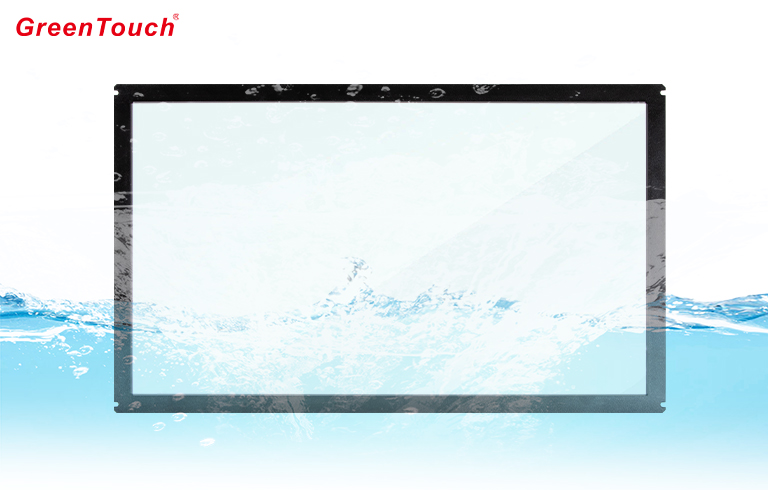

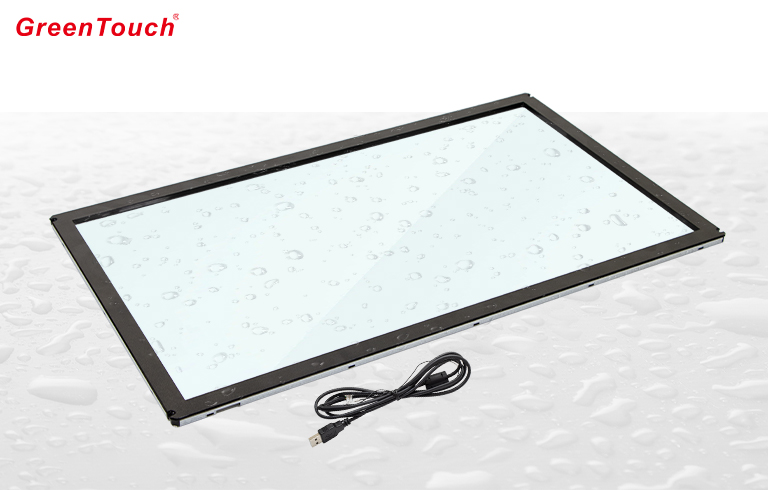

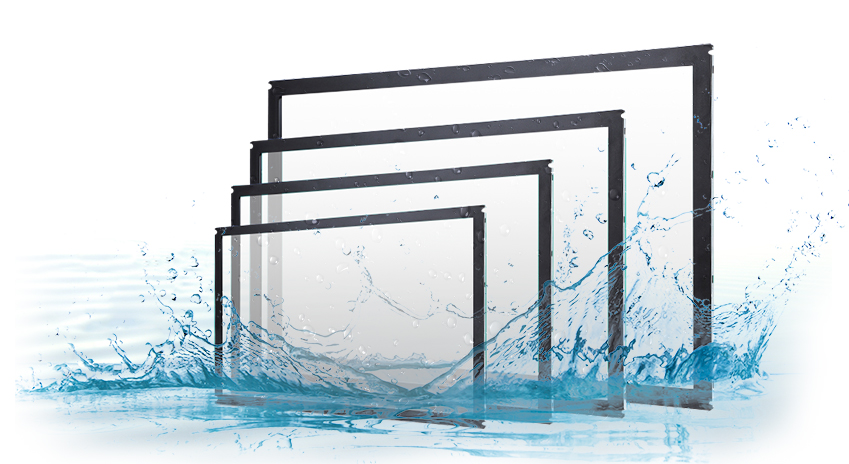

♦ IP65 waterproof and dustproof: can be used in outdoor and complex industrial environments;
♦ Level 3 anti-static: tested in accordance with EN 6100-4-2 2008: Level 3;

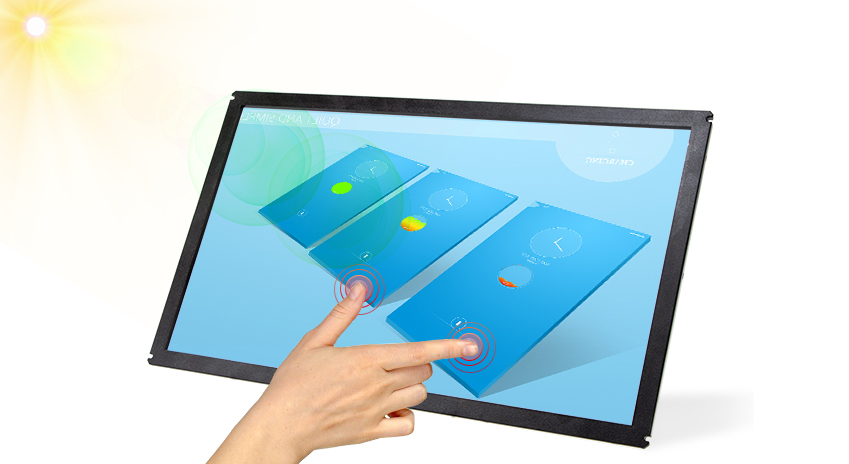

♦ Full-angle light resistance: anti-light 8000Lux, touch function can be operated normally under strong light;
♦ Explosion-proof: full tempered glass coverage, easy to deal with violent impact, can protect LCD devices;
♦ High humidity and high temperature operation: can operate normally at -15℃~55℃ temperature and 10%~90%RH (no condensation) humidity.

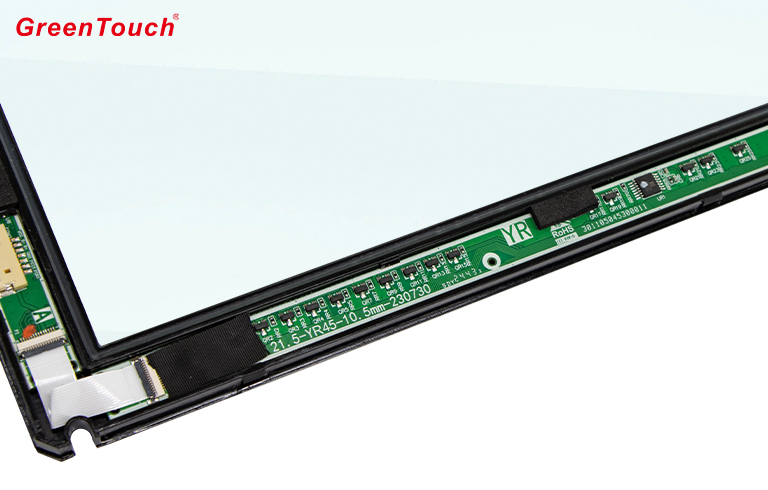

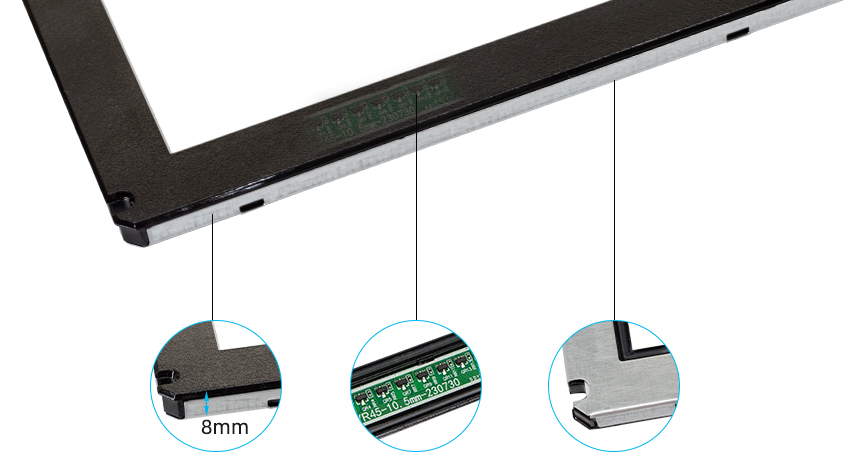

GreenTouch TE series waterproof infrared touch screen adopts the structure of one-piece injection-molded light-transmitting frame + waterproof glue + mechanized glass bonding process, and the ultra-narrow frame thickness is only 8mm; advanced wick, LED infrared transmitting and receiving tubes, can draw smooth and accurate curves, and the failure of individual LED tubes will not affect the use effect.

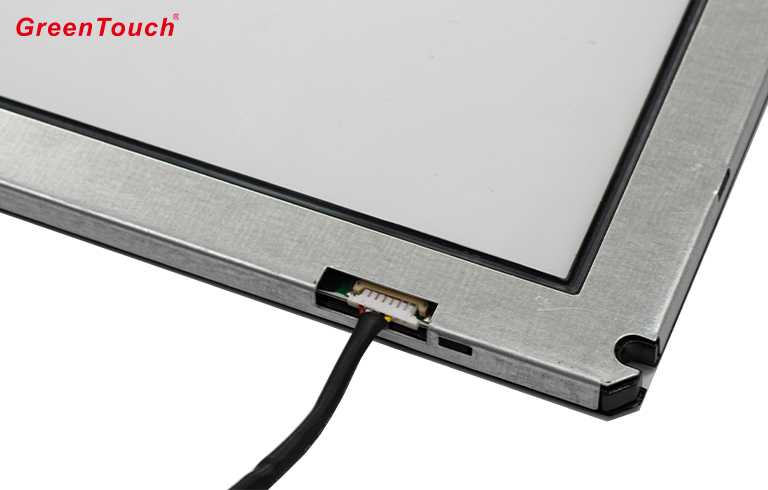

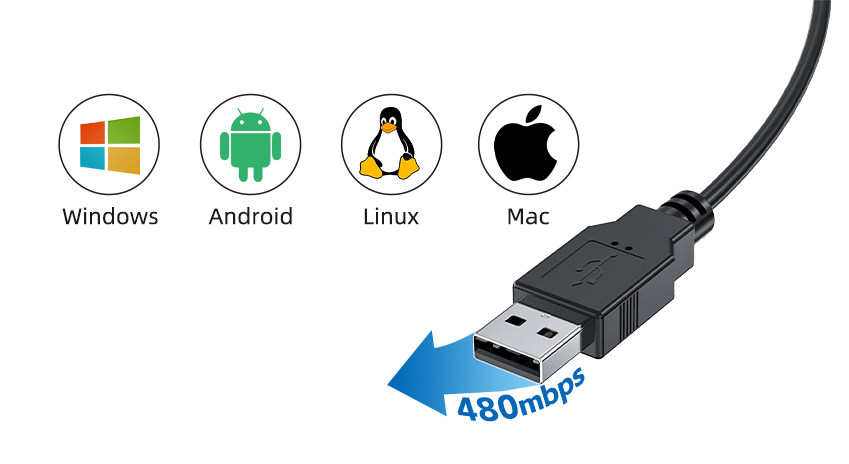

USB2.0+UATR interface, supports API (software interface); alloy plug plug and play USB recognition time increased by 3 times, transmission speed 480mbps. Support Windows, Android, Linux and Mac operating systems.
1. Screen customization→ Surface treatment (AG/AF/AR), size, glass thickness customization
2. Appearance customization→ LOGO, frame color/size/material and other appearance customization
3. Special environment customization→ High and low temperature environment, high humidity environment, interference environment, other environment customization
Product Name: | Waterproof Infrared Touch Screen TE Series | Touch Pressure: | Zero |
Touch Points: | 10 Points | Material: | Injection Molding Frame+ Tempered Glass |
Transparency: | >92% | Touch Resolution: | 32768*32768 |
Input Method: | Finger or Touch Pen | Response Speed: | <10ms |
Touch Object: | >7mm In Diameter | Operating Voltage: | DC 5V ±5% |
Operating Current: | <200mA | Interface: | USB2.0+UATR,plug an play |
About Noies: | No Noies | Transmission Speed: | 480Mbps |
Temperature Operation: | –15°C to 55°C | Temperature Storage: | –40°C to 75°C |
Durability: | Unlimited Touches | Sunlight-proof: | Support |
Certificates: | CE,FCC,RoHS | Support Systems: | Windows,Android,Linux,Mac |
Product Applications
The waterproof infrared touch screen is suitable for self-service vending machines, outdoor smart charging piles, outdoor advertising all-in-one machines, outdoor inquiry machines, self-service express cabinets and other outdoor waterproof equipment.
Sizes | Model | Dimensions | View Area | Proportion | Interface | Drawing Download |
15" | GT-IR-TE15.0-1 | 342*266mm | 306*230mm | 4:3 | USB2.0 | |
17" | GT-IR-TE17.0-1 | 376*308mm | 340*272mm | 4:3 | USB2.0 | |
19" | GT-IR-TE19.0-1 | 413*338mm | 378*303mm | 4:3 | USB2.0 | |
21.5" | GT-IR-TE21.5-1 | 515*306mm | 479*270mm | 16:9 | USB2.0 |
