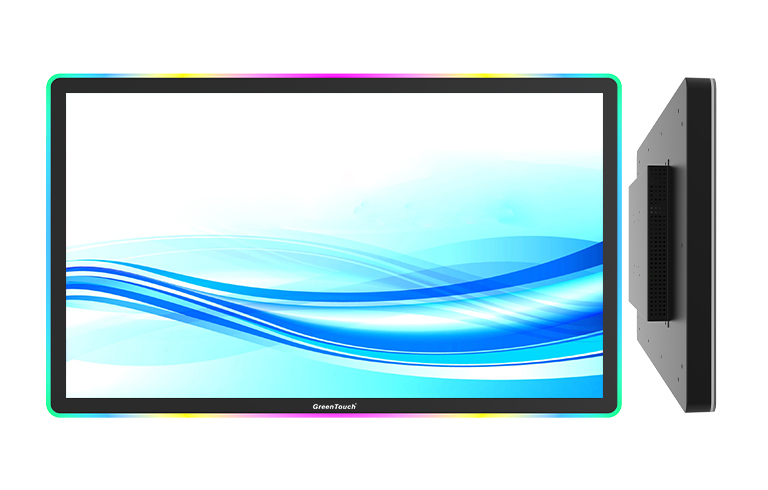

Capacitive LED-Frame Touch Monitor

* Display Type: active matrix TFT LCD,LED backlight

Regular Sizes: 21.5,27,32,43

* Outer Edge: colorful LED marquee design

* Water-proof/Dust-proof: IP65(Front)

* Explosion-proof: IK08(Front)

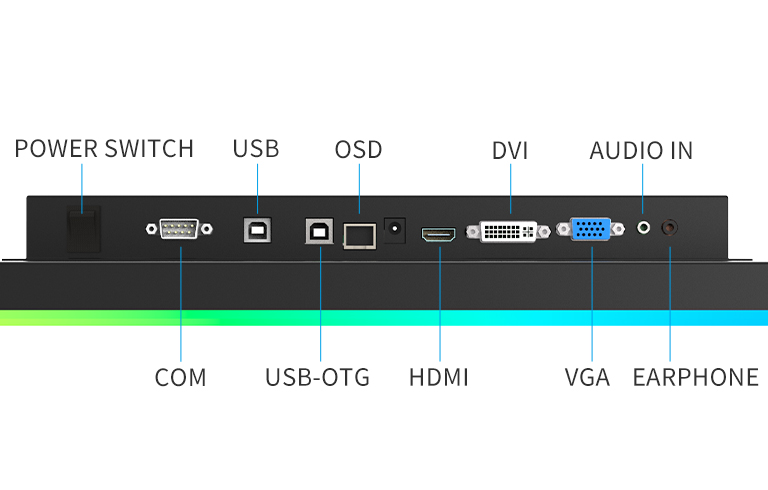

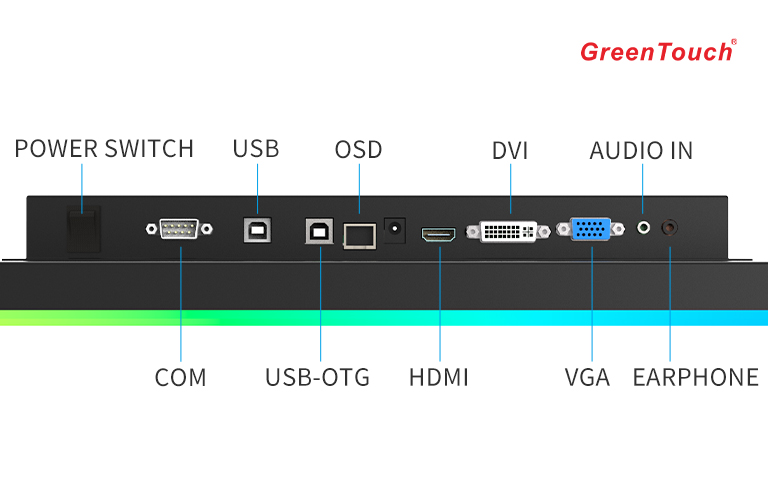

* Interface: VGA,DVI,HDMI,DP,COM,USB(optional)

* Touch Systems: Windows,Android,Linux,3M

* Certificates: RoHS,FCC,CE,CB,HDMI Testing


Contact us
+(0086) 13823548639
peter@greentouch.com.cn
wanli889
Product video

    Overview

    GreenTouch is the world's excellent manufacturer and seller of capacitive led-frame touch monitors,they are widely used in various commercial environments.We are proud of our advanced technology,the monitor perform consistently even when running 24-hours a day in high humidity and high temperatures.GreenTouch unique capability to provide customized solutions ensures that our optimized displays are ideal for an engaging and leisure commercial environment.


    Markret

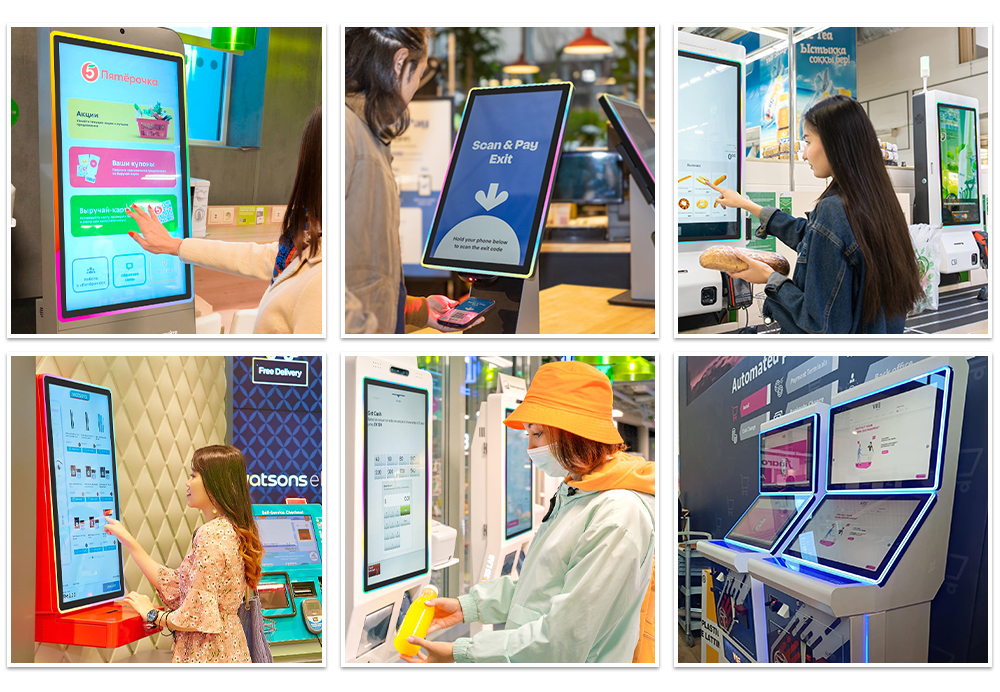

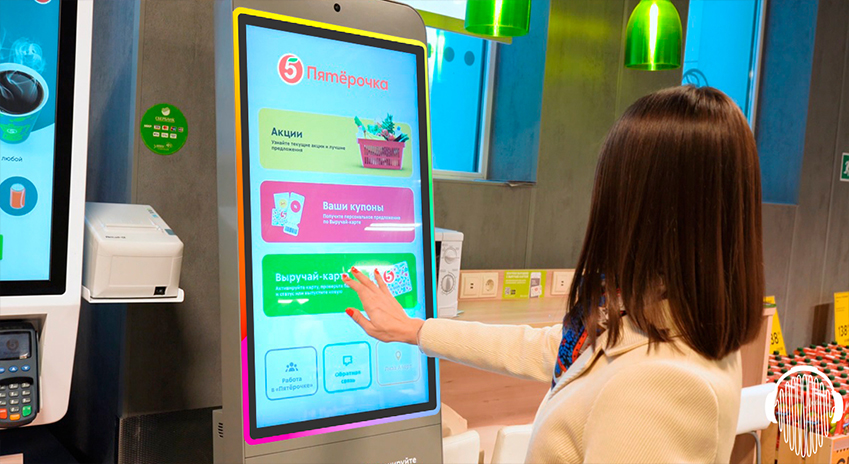

    LED-Frame touch monitor has its unique design and performance,and is mainly used in self-services,information kiosks,arcades,KTVs,digital signage and other commercial places.

    Led Describe

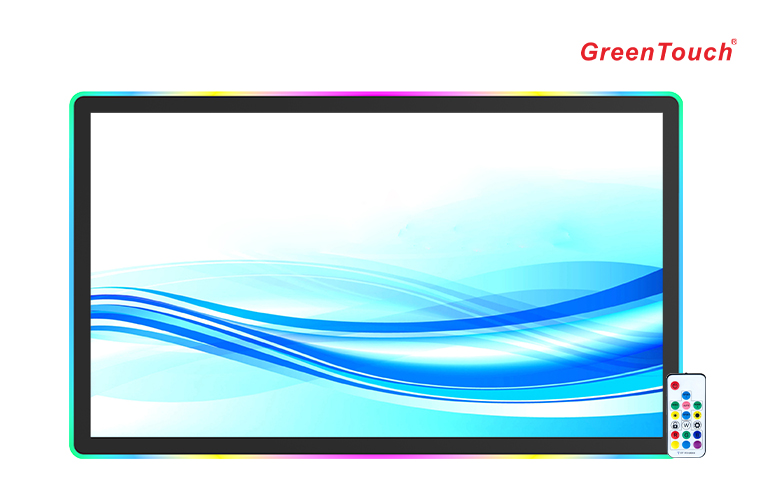

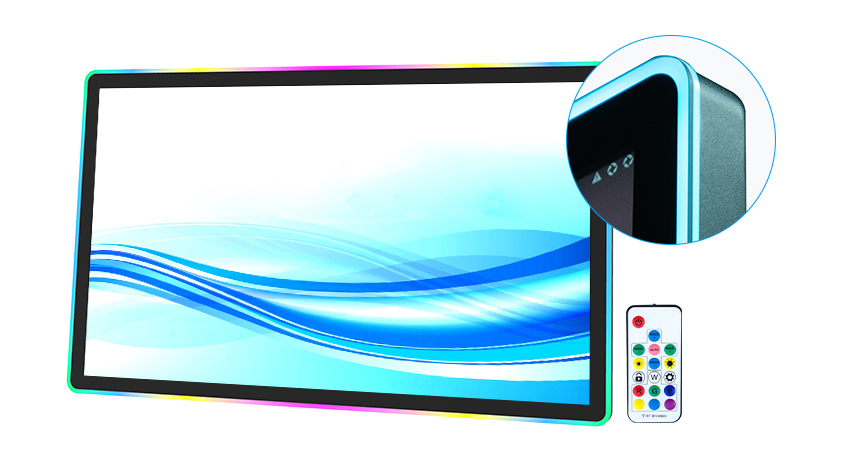

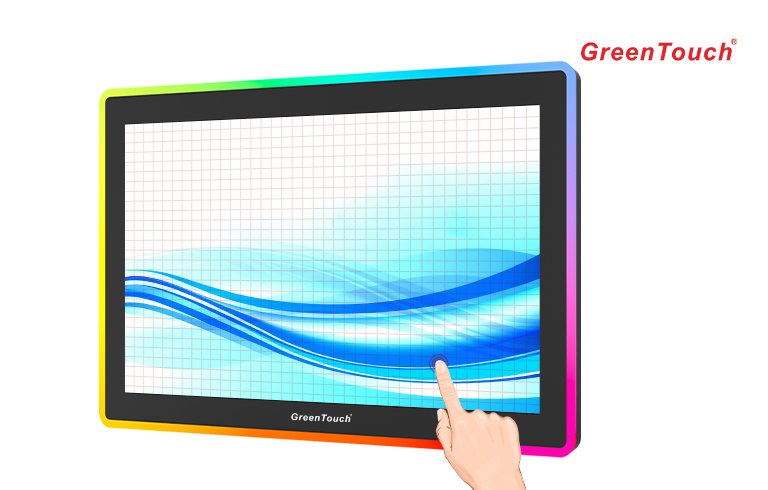

    LED frame touchscreen monitor  (21.5",27",32",43") adopts the trendy colorful LED marquee design on the outer edge.Each display is equipped with an light adjustment remote control,which can select RGB colorful (red,green,blue,white,yellow,orange,purple) jump mode to set a variety of lighting effects,support 358 lighting modes,customize the composite color,change speed,direction,sequence,etc.


    Features

    ★ Highly-reliable display solutions for round-the-clock operation.

    ★ High definition TFT LCD,pure flat front panel,good visual experience.

    ★ Capacitive flexible touch,adopt A+grade original industrial Led screen.

    ★ Front panel is waterproof(IP65),dustproof (IP65) and explosion-proof(IK08).

    ★ Industrial plastic front shell,industrial black metal frame,durable and reliable.

    ★ Compatible with Windows,Android,Linux systems and supports 3M protocol.


    Customizable

    ① Product size

    ② Customer Logo

    ③  LCD brightness(300-800 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

    ⑤ Display ports( VGA,DVI,HDMI,DP,USB or more)

    Technical parameter


    Installation

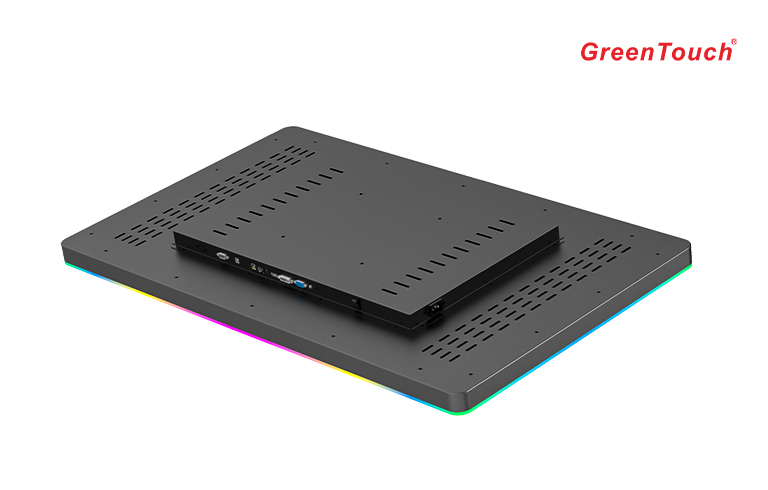

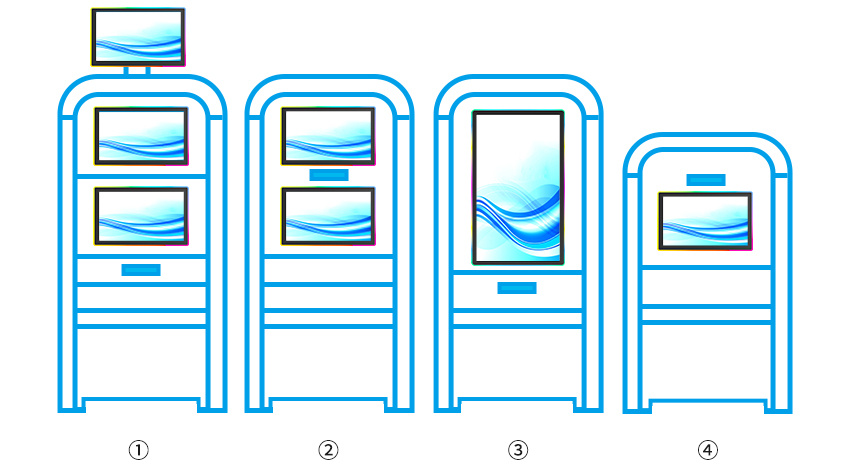

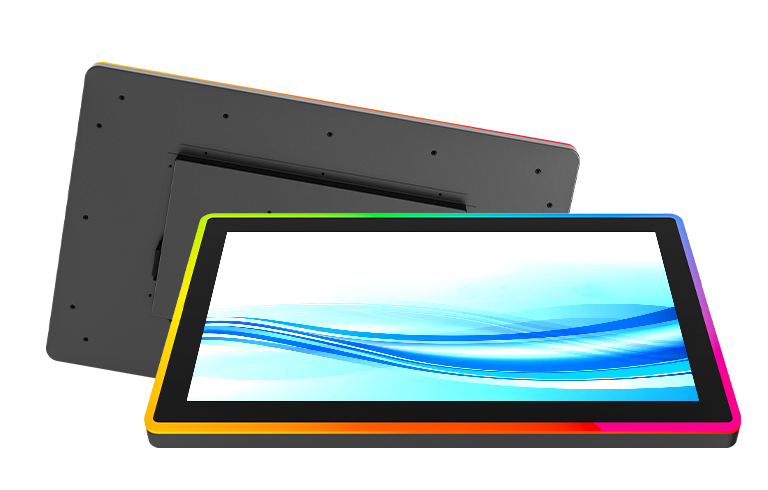

    Back shell has mounting holes for embedded or wall mounted installation.







    Environment




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download
    21.5"GT-PM-2153M-CTW-HDVGA,DVI,HDMI

    16:9

    545.1 x 342 x 56.5mm476.6 x 267.7mm250 1920 1080

    Download

    21.5"GT-PM-2153M-CTW-HD-DPVGA,HDMI,DP

    16:9

    545.1 x 342 x 56.5mm476.6 x 267.7mm250 1920 1080

    Download

    27"

    GT-PM-2703M-CTW-HD

    VGA,DVI,HDMI16:9668 x 406 x 66mm597.6 x 336.1mm3001920 1080

    Download

    27"

    GT-PM-2703M-CTW-HD-DP

    VGA,HDMI,DP16:9668x 406x 66mm597.6 x 336.1mm3001920 1080

    Download

    32"GT-PM-3203M-CTW-HDVGA,DVI,HDMI16:9765.9 x 466.5 x 66mm699.9 x 394.5mm4001920 x 1080Download
    32"

    GT-PM-3203M-CTW-HD-DP

    VGA,HDMI,DP16:9765.9 x 466.5 x 66mm699.9 x 394.5mm4001920 1080Download
    43"

    GT-PM-4303M-CTW-HD

    VGA,DVI,HDMI16:91024 x 612.5 x 70.5mm941.1 x 529.4mm4001920 1080Download
    43"GT-PM-4303M-CTW-HD-DPVGA,HDMI,DP16:91024 x 612.5 x 70.5mm941.1 x 529.4mm4001920 x 1080Download
