Products

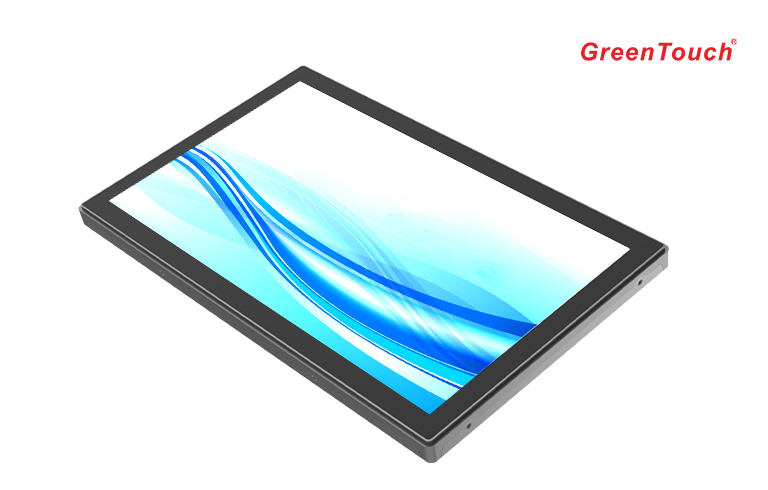

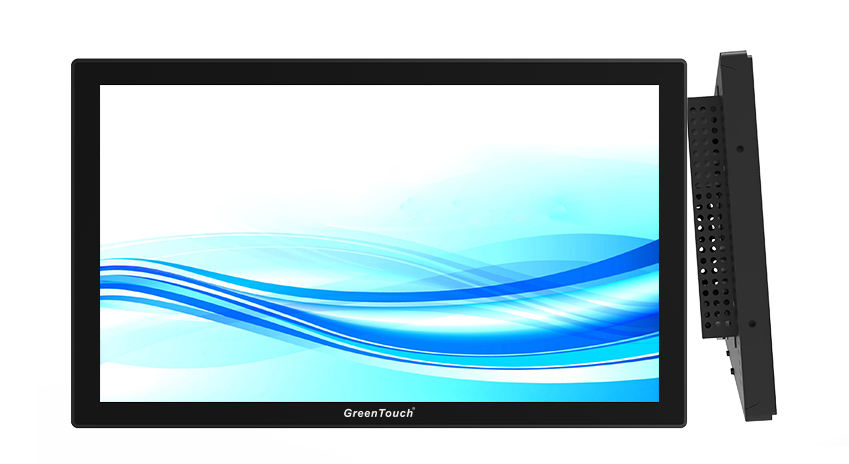

Open Frame LCD Touch Monitor

* Display Type: active matrix TFT LCD,LED backlight

Regular Sizes: 15 to 55 inches

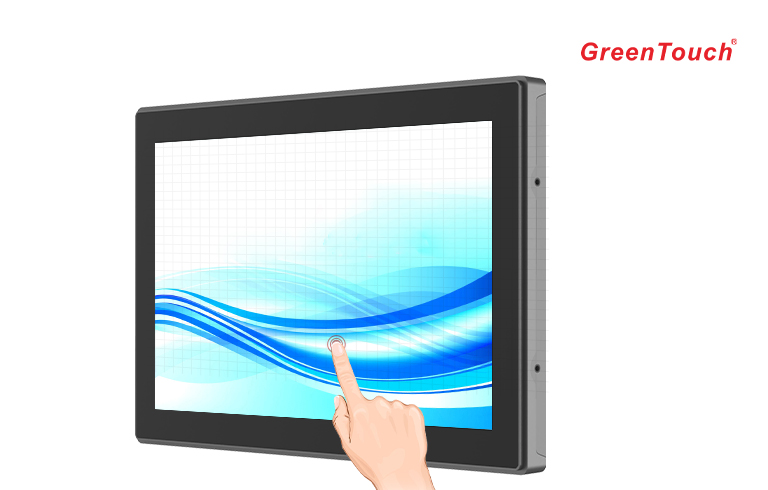

* Touch Technology: capacitive touch

* Water-proof/Dust-proof: IP65(Front)

* Explosion-proof: IK08(Front)

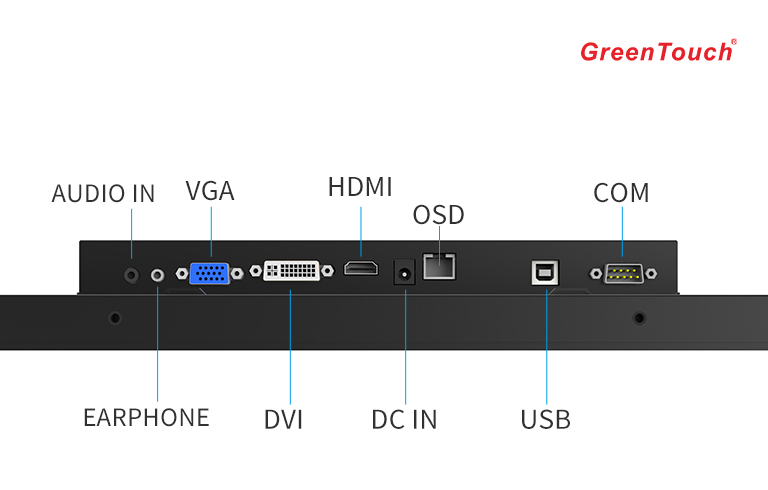

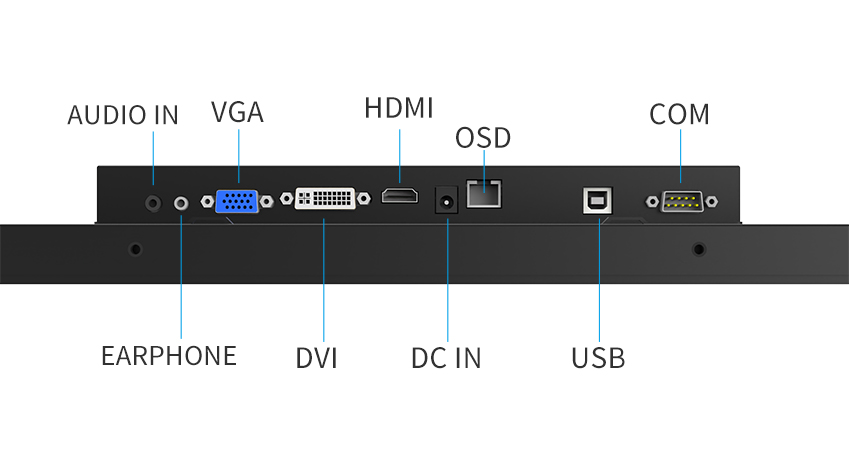

* Interface: VGA,DVI,HDMI,DP,COM,USB(optional)

* Touch Systems: Windows,Android,Linux,3M

* Certificates: RoHS,FCC,CE,CB,HDMI Testing


Contact us
+(0086) 13823548639
peter@greentouch.com.cn
wanli889
Product video

    Overview

    GreenTouch is the world's excellent manufacturer and seller of LCD touch monitors,they are widely used in commercial places.We are proud of our advanced technology,the monitor perform consistently even when running 24-hours a day in high humidity and high temperatures.GreenTouch unique capability to provide customized solutions ensures that our optimized displays are ideal for an engaging and fun business environment.


    Markret

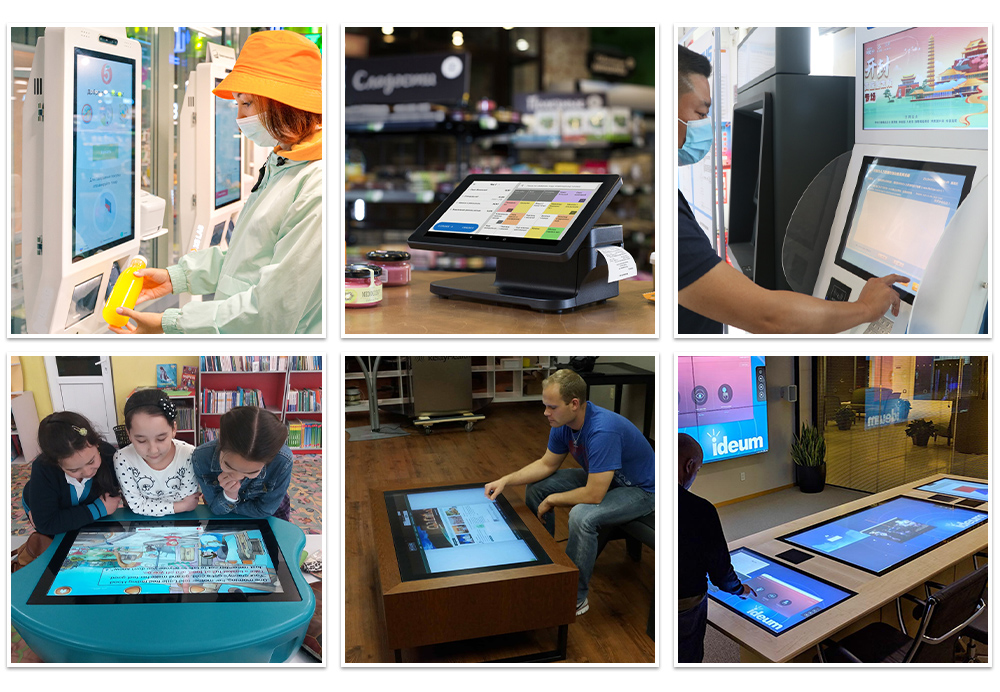

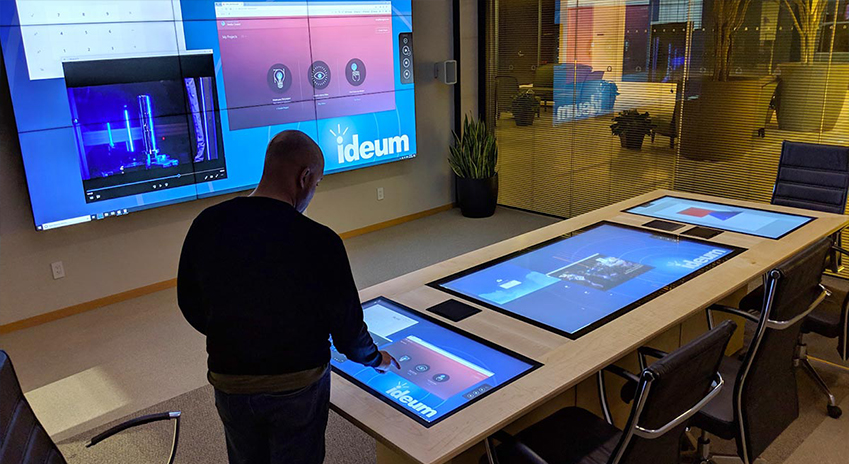

    GreenTouch open frame touchscreen monitor has its unique design and performance,and is mainly used in singing bars, KTVs, self-service inquiry, and self-service sales places.

    Describe

    Our open frame touch monitor is available in 15 to 55 inches display multiple sizes,capacitive touch,which keeps exciting players immerse with captivating play,and designed specifically for the rigors of environments. And they are optimized for different user environments.We provide customized display solutions catering to varying display sizes,installation spaces,and other customer needs.


    Features

    ★ Highly-reliable display solutions for round-the-clock operation.

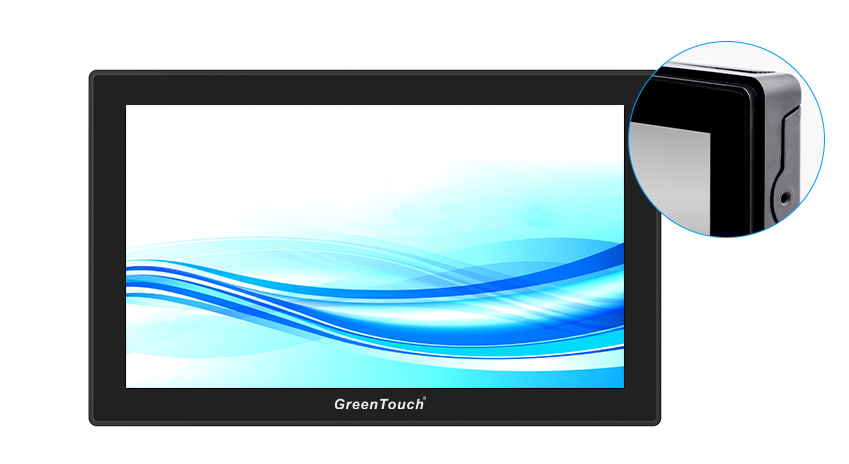

    ★ High definition TFT LCD,pure flat front panel,good visual experience.

    ★ Capacitive flexible touch,adopt A+grade original industrial led screen.

    ★ Front panel is waterproof(IP65),dustproof (IP65) and explosion-proof(IK08).

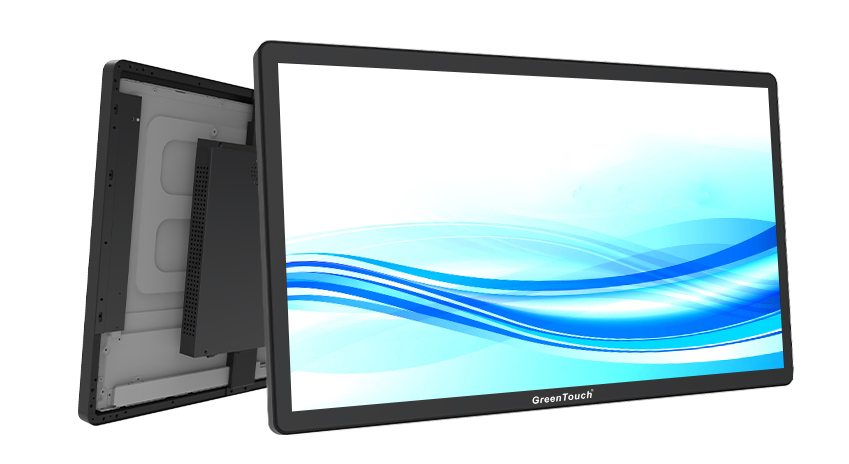

    ★ Industrial plastic front shell,industrial black metal frame,durable and reliable.

    ★ Compatible with Windows,Android,Linux systems and supports 3M protocol.


    Customizable

    ① Product size

    ② Customer Logo

    ③  LCD brightness(300-800 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

    ⑤ Display ports( VGA,DVI,HDMI,DP,USB or more)

    Technical parameter

    Installation

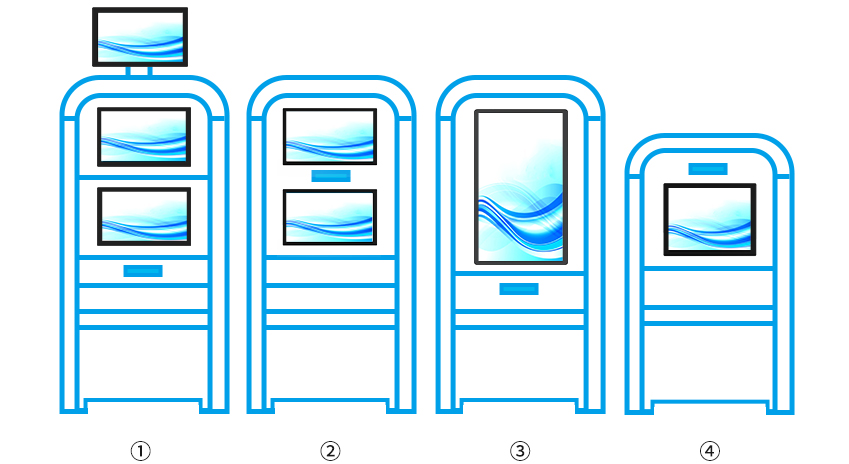

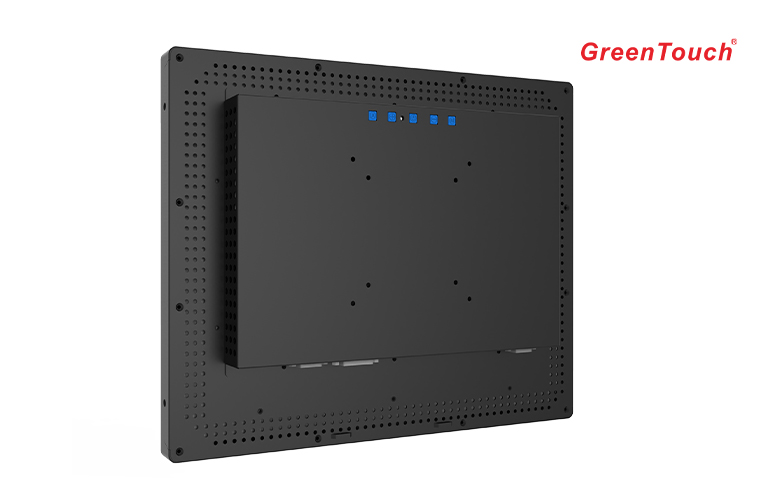

    External bracket and standard vesa mounting hole for embedded or wall mounted installation.







    Environment




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download

    15"

    GT-3M-1502C-CTW

    VGA,DVI

    4:3

    355 x 279 x 46.5mm

    304 x 228mm

    300

    1024 x 768

    Download

    15"

    GT-3M-1502C-CTW-HD

    VGA,DVI,HDMI

    4:3

    355 x 279 x 46.5mm

    304 x 228mm

    300

    1024 x 768

    Download

    15"

    GT-3M-1502C-CTW-HD-DPVGA,HDMI,DP

    4:3

    355 x 279 x 46.5mm

    304 x 228mm

    300

    1024 x 768

    Download

    15.6"

    GT-3M-1562C-CTW

    VGA,DVI

    16:9

    398 x 248 x 46.5mm

    343.5 x 192.8mm

    400

    1920 x 1080

    Download

    15.6"

    GT-3M-1562C-CTW-HD

    VGA,DVI,HDMI

    16:9

    398 x 248 x 46.5mm

    343.5 x 192.8mm

    400

    1920 x 1080

    Download

    15.6"

    GT-3M-1562C-CTW-HD-DP

    VGA,HDMI,DP

    16:9

    398 x 248 x 46.5mm

    343.5 x 192.8mm

    400

    1920 x 1080

    Download

    17"

    GT-3M-1702C-CTW

    VGA,DVI

    5:4

    385 x 317 x 46.5mm

    338.9 x 271.3mm

    250

    1280 x 1024

    Download

    17"

    GT-3M-1702C-CTW-HD

    VGA,DVI,HDMI

    5:4

    385 x 317 x 46.5mm

    338.9 x 271.3mm

    250

    1280 x 1024

    Download

    17"

    GT-3M-1702C-CTW-HD-DP

    VGA,HDMI,DP

    5:4

    385 x 317 x 46.5mm

    338.9 x 271.3mm

    250

    1280 x 1024

    Download
    18.5"

    GT-3M-1852C-CTW

    VGA,DVI16:9457 x 281.5 x 46.5mm408.5 x 229mm2501366 x 768Download

    18.5"

    GT-3M-1852C-CTW-HD

    VGA,DVI,HDMI16:9457 x 281.5 x 46.5mm408.5 x 229mm250 1366 x 768Download

    18.5"

    GT-3M-1852C-CTW-HD-DP

    VGA,HDMI,DP16:9457 x 281.5 x 46.5mm409.8 x 229mm250 1366 x 768Download

    19"

    GT-3M-1902C-CTW

    VGA,DVI5:4430 x 355 x 46.5mm376.3 x 301mm250 1280 x 1024Download

    19"

    GT-3M-1902C-CTW-HDVGA,DVI,HDMI5:4430 x 355 x 46.5mm376.3 x 301mm250 1280 x 1024Downoad

    19"

    GT-3M-1902C-CTW-HD-DPVGA,HDMI,DP

    5:4

    430 x 355 x 46.5mm376.3 x 301mm250 1280 x 1024Download
    21.5"GT-3M-2152C-CTWVGA,DVI

    16:9

    532.2 x 319.4 x 46.5mm479.6 x 270.9mm250 1920 x 1080Download
    21.5"GT-3M-2152C-CTW-HDVGA,DVI,HDMI

    16:9

    532.2 x 319.4 x 46.5mm479.6 x 270.9mm250 1920 x 1080Download
    21.5"GT-3M-2152C-CTW-HD-DPVGA,HDMI,DP16:9

    532.2 x 319.4 x 46.5mm

    479.6 x 270.9mm2501920 x 1080Download
    22"

    GT-3M-2202C-CTW

    VGA,DVI16:10526.8x 350.2 x 50mm473.7 x 296.1mm2501680 x 1050Download
    22"

    GT-3M-2202C-CTW-HD

    VGA,DVI,HDMI16:10526.8 x 350.2 x 50mm473.7 x 296.1mm2501680 x 1050Download
    22"GT-3M-2202C-CTW-HD-DPVGA,HDMI,DP16:10526.8x 350.2 x 50mm473.7 x 296.1mm2501680 x 1050Download
    23.6"

    GT-3M-2362C-CTW

    VGA,DVI16:9581.7 x 350.7 x 50mm521.2 x 293.2mm3001920 x 1080Download
    23.6"

    GT-3M-2362C-CTW-HD

    VGA,DVI,HDMI16:9581.7 x 350.7 x 50mm521.2 x 293.2mm3001920 x 1080Download
    23.6"GT-3M-2362C-CTW-HD-DPVGA,HDMI,DP16:9581.7 x 350.7 x 50mm521.2 x 293.2mm3001920 x 1080Download
    23.8"GT-3M-2382C-CTWVGA,DVI16:9

    586 x 356 x 46.5mm

    527 x 296.4mm2501920 x 1080Download
    23.8"GT-3M-2382C-CTW-HDVGA,DVI,HDMI

    16:9

    586 x 356 x 46.5mm527 x 296.4mm2501920 x 1080Download
    23.8"GT-3M-2382C-CTW-HD-DPVGA,HDMI,DP

    16:9

    586 x 356 x 46.5mm527 x 296.4mm2501920 x 1080Download
    27"GT-3M-2702C-CTW-HDVGA,DVI,HDMI16:9

    655.6 x 396 x 55mm

    597.8 x 336.3mm3001920 x 1080Download
    27"GT-3M-2702C-CTW-HD-DPVGA,HDMI,DP

    16:9

    655.6 x 396 x 55mm597.8 x 336.3mm3001920 x 1080Download
    32"GT-3M-3202C-CTW-HDVGA,DVI,HDMI

    16:9

    749.1 x 452.6 x 64.5mm698.4 x 392.8mm400 1920 x 1080Download
    32"

    GT-3M-3202C-CTW-HD-DP

    VGA,HDMI,DP16:9749.1 x 452.6 x 64.5mm698.4 x 392.8mm4001920 x 1080Download
    43"GT-3M-4302C-CTW-HDVGA,DVI,HDMI

    16:9

    1006.8 x 595.65x 71.5mm940.8 x 529.2mm4001920 x 1080Download
    43"GT-3M-4302C-CTW-HD-DPVGA,HDMI,DP

    16:9

    1006.8 x 595.5 x 71.5mm940.8 x 529.2mm4001920 x 1080Download
    49"GT-3M-4902C-CTW-HDVGA,DVI,HDMI

    16:9

    1141.9 x 672.1 x 71mm1073.7 x 604mm3801920 x 1080Download
    49"GT-3M-4902C-CTW-HD-DPVGA,HDMI,DP16:91141.9 x 672.1 x 71mm1073.7 x 604mm

    380

    1920 x 1080

    Download

    55"

    GT-3M-5502C-CTW-HD

    VGA,DVI,HDMI16:91277.7 x 748.5 x 70mm1209.6 x 680.4mm4001920 x 1080Download
    55"

    GT-3M-5502C-CTW-HD-DP

    VGA,HDMI,DP16:91277.7 x 748.5 x 70mm1209.6 x 680.4mm4001920 x 1080Download
