*Application scene: outdoor/semi-outdoor/indoor
* Display type: active matrix TFT LCD, LED backlight
* Brightness (standard): 1000 cd/m²
* Touch type: capacitive 10-point touch
* Fan: 2
* Interface: VGA，DVI，HDMI，OSD
* Touch Systems: Windows,Android,Linux
* Waterproof and dustproof/explosion-proof: IP65 (front) IK08 (front)
* Product certification: FCC, CE, CB, China RoHS CQC
* Installation method: Supports various installation methods, Embedded is the first
Since its establishment, GreenTouch has been focusing on user experience and constantly developing and upgrading touch products. This 2C high-brightness touch display is a touch solution designed and developed for automatic information systems, games and entertainment, and industrial automation control. Due to the strong outdoor light and high ambient temperature requirements, the screen brightness of this model can reach 1000 nits, and there are 2 built-in low-frequency turbo fans to improve the cooling effect. This model has been advanced and perfected through many processes to create an intelligent product suitable for use in outdoor and indoor complex environments. Whether it is sunlight exposure, rainy and foggy weather, or night light, it can clearly display the content of the screen, suitable for indoor and outdoor information query, self-service, and industrial automation applications.

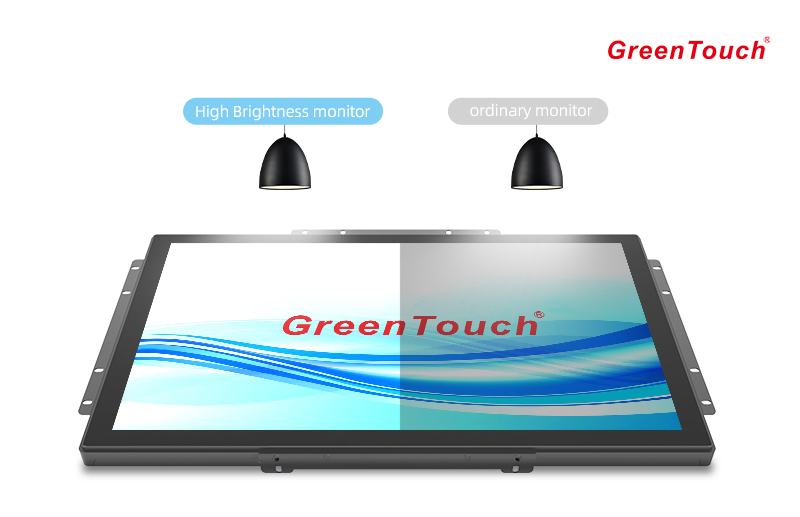

♦ 1000ints high-brightness A-standard LCD screen is used, and the picture is clearly visible under strong outdoor light
♦ Built-in 2 cooling fans, active circulation heat dissipation, prolonging the life of the machine
♦ Pure flat front IP65 waterproof and dustproof, effectively isolates dust and water mist, and prolongs the use time of the LCD screen
♦ The front IK08 explosion-proof grade ensures the normal use of the touch function
♦ Wide temperature and high brightness, strong performance, suitable for indoor and outdoor environments
♦ 10-point capacitive touch, smooth touch without stuttering, realizing human-computer interaction interface
♦ Complies with EMC anti-interference standards, stable operation around the clock

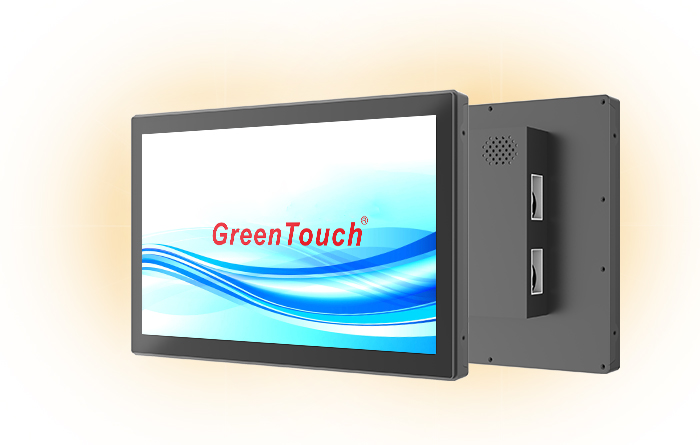

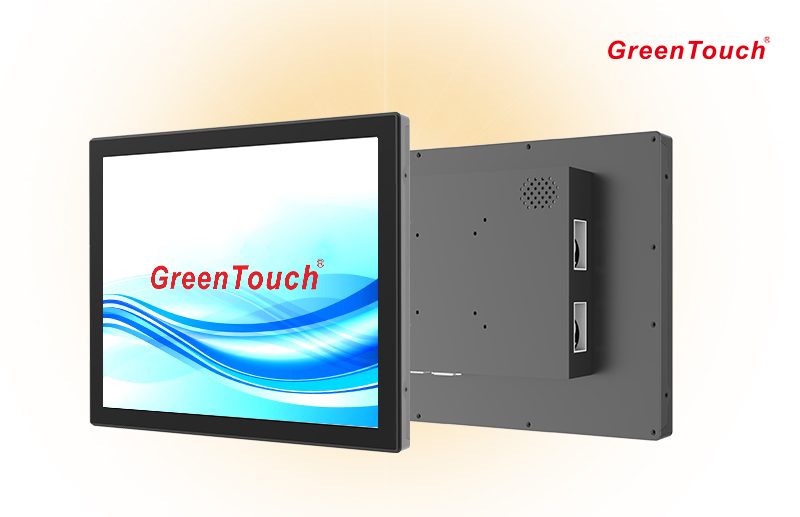

GreenTouch 2C high-brightness touch monitor back shell is made of sheet metal, which is sturdy and durable, and is equipped with porous heat dissipation. There are two turbo fan outlets on the side to achieve low noise and high heat dissipation; the front panel reaches IK08 explosion-proof level, Even if the glass is scratched, the touch function will not be easily affected; the front panel of this model reaches the IP65 waterproof and dustproof level, which meets the needs of indoor and outdoor display applications.

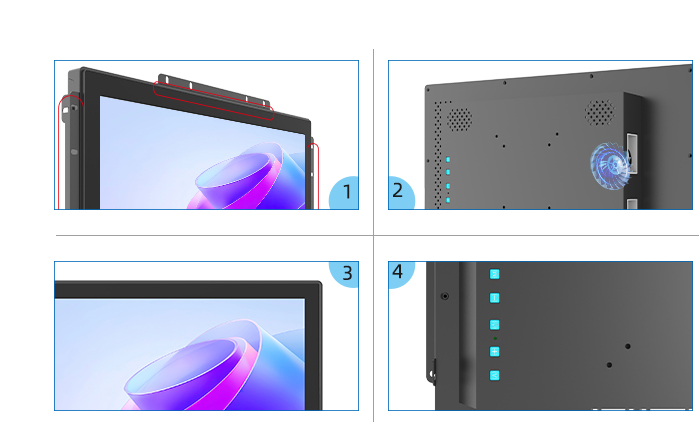

(1) Product frame design
Equipped with side embedded mounting brackets, suitable for all kinds of cabinet equipment

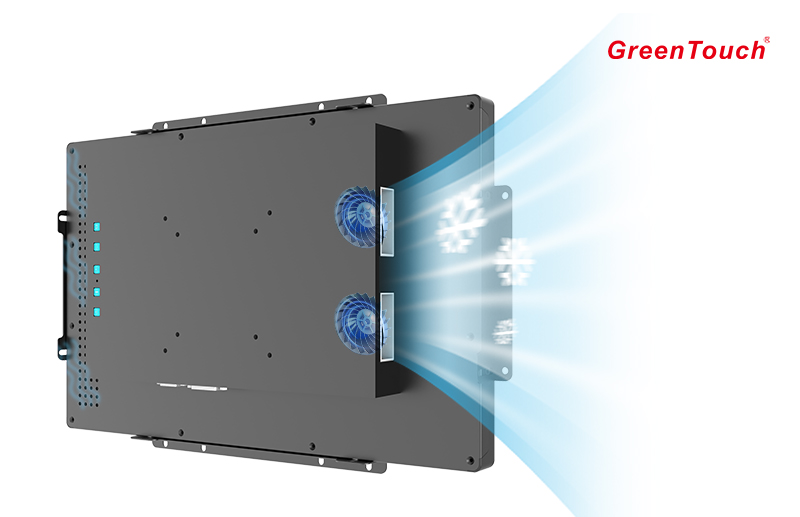

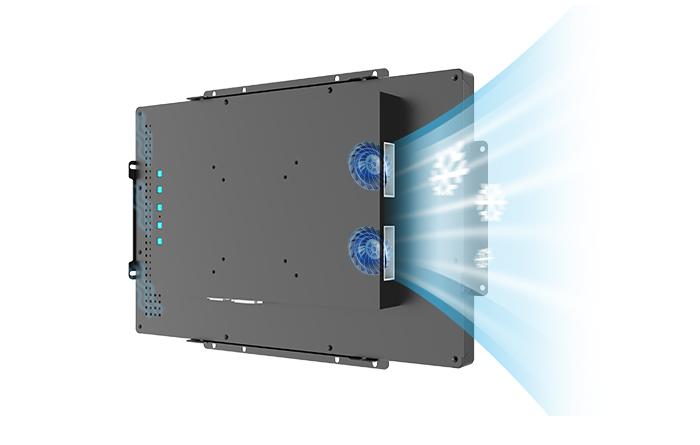

(2) Efficient heat dissipation design
Porous heat dissipation design on the back shell, with 2 built-in fans for efficient heat dissipation

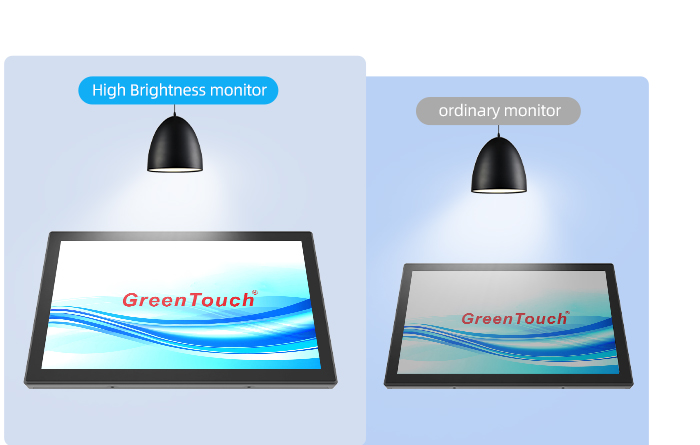

(3) Wide temperature and high brightness LCD screen
Adapt to outdoor and environment with large temperature difference, clear color and long service life

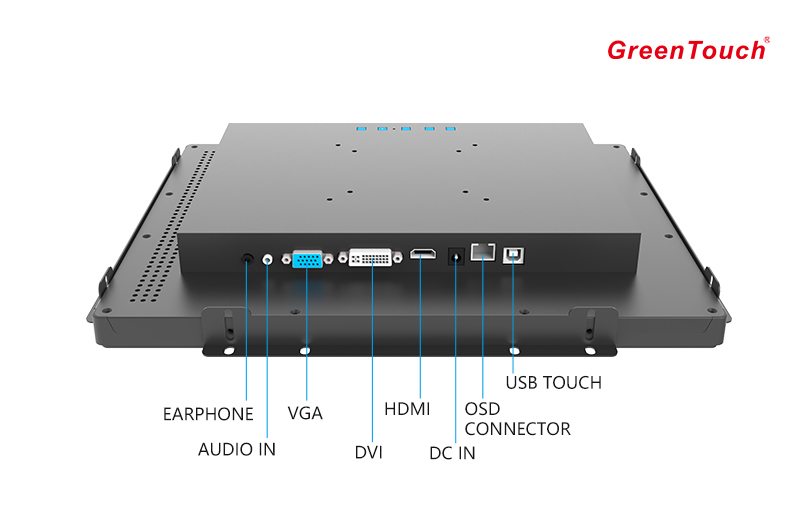

(4) Button panel for easy control
The function key board on the back can quickly enter the menu mode, and it is easy to debug
1. Screen customization
→Customer LOGO, screen size, screen brightness (300-1000 cd/m²) customization
2. Appearance customization
→Installation method, body color, product size, appearance design customization
3. Special environment customization
→ High and low temperature environment, interference environment, other environment customization
| Product Name: | High Brightness Touch Monitor | Series: | 2C series |
| Regular Sizes： | 10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",23.8" | Case/Frame Color: | Iron/Black |
| Display Type: | Active Matrix TFT LCD, LED Backlight | Brightness: | 1000ints |
| Touch Technology: | 10 points capacitor | Touch Interface： | USB |
| Touch Supply Voltage： | 5V | Touch Chip: | Weida |
| Video Input Format: | VGA，DVI，HDMI | OSD: | Digital OSD |
| Touch Support System： | Windows，Android，linux | FAN: | 1 or 2 |
| Temperature: | Operating: 0℃ to 60℃; Storage: -20℃ to 70℃ | Humidity: | Working: 20%～80%; Storage: 5%～95% (non-condensing) |
| Protection function: | IP65 (front waterproof and dustproof)/IK08 (front explosion-proof) | Mounting Options: | Embedded, desktop, cantilever, wall-mounted |
Installation Method

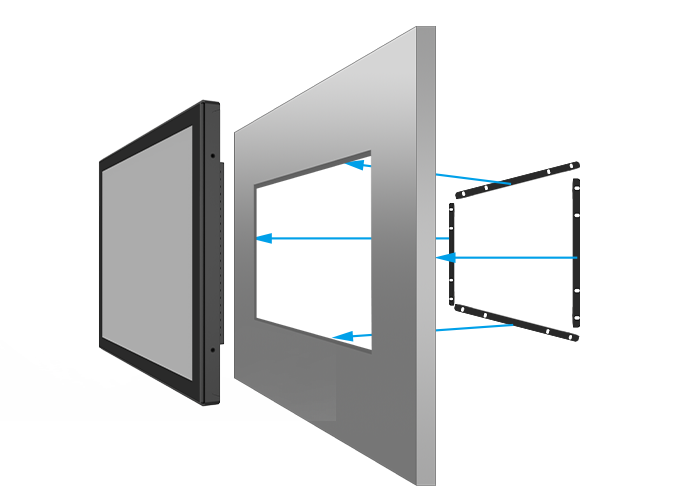

Support a variety of installations, the most popular embedded. The side of the display is equipped with embedded mounting brackets, and the standard VESA holes on the back
support various installations such as embedded, wall-mounted, desktop, and VESA.
|
|
|
|
|
|

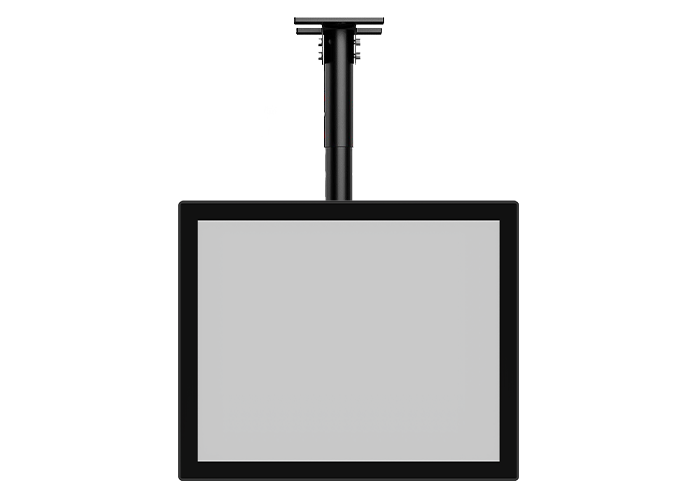

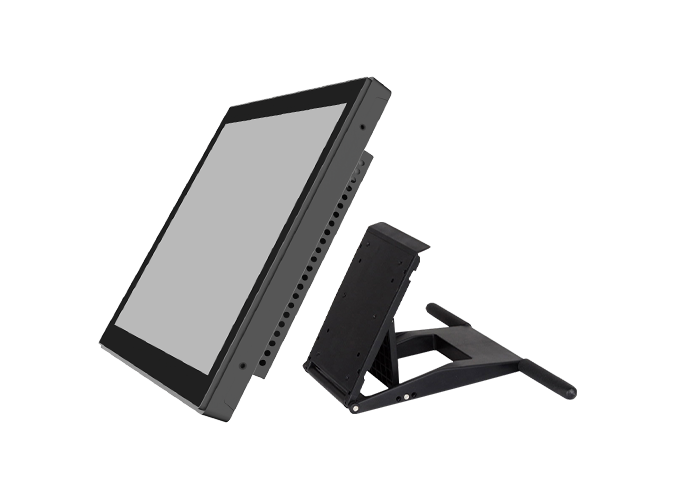

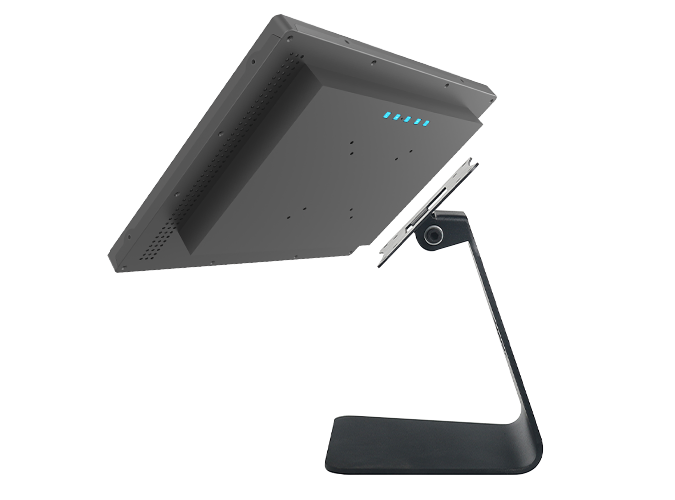

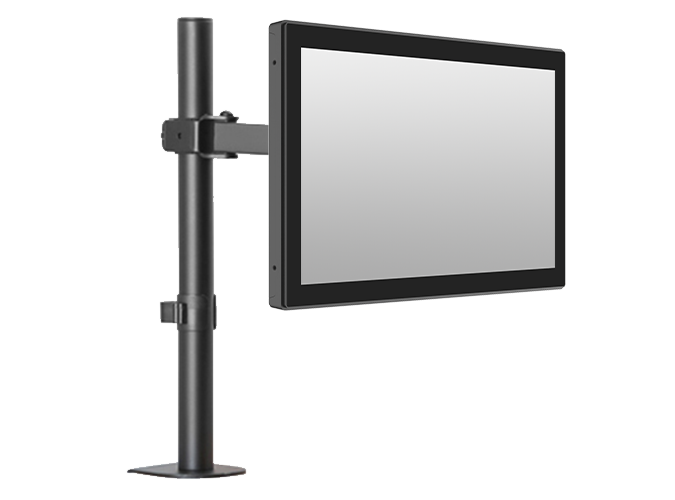

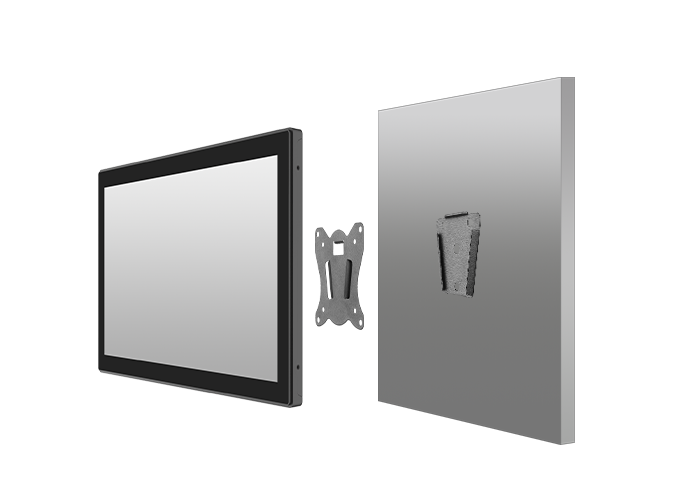

| Embedded | Wall-mounted | Horizontal type | Hanging type | Cantilevered | Desktop |
Application Scenario
 |  |  |

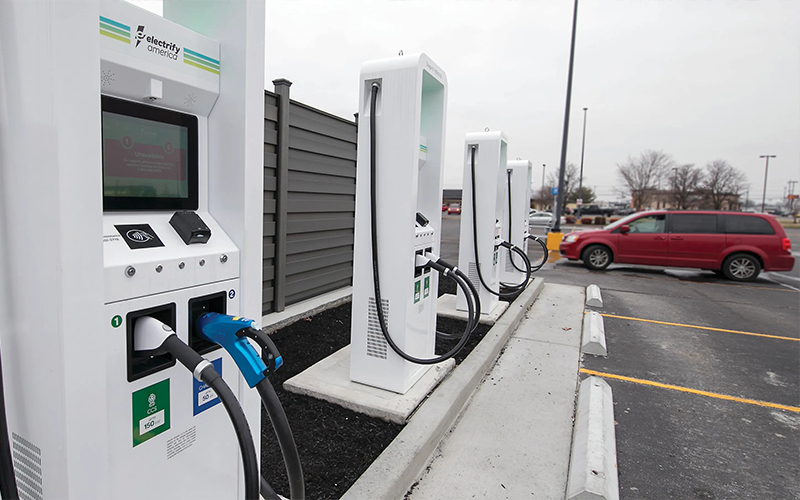

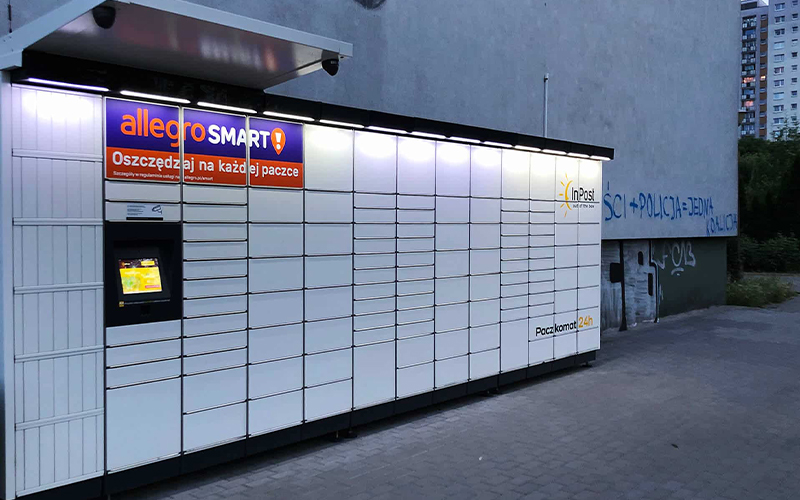

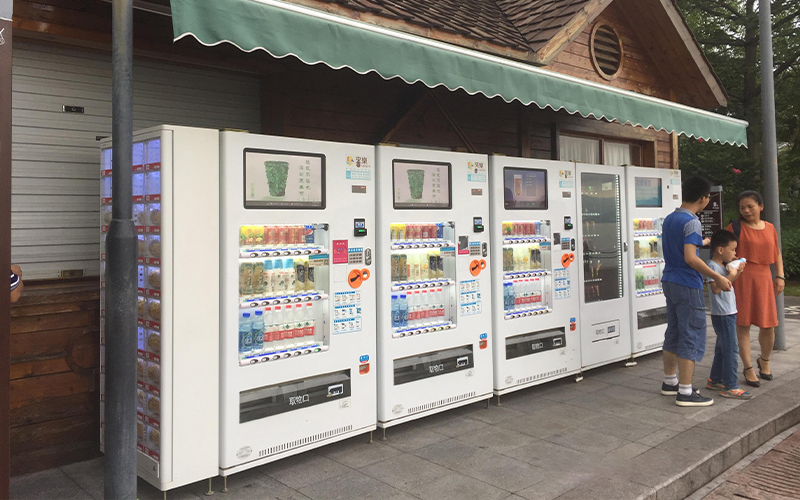

| Smart Express Cabinet | Smart vending cabinet | Smart charging pile |
 |  |  |

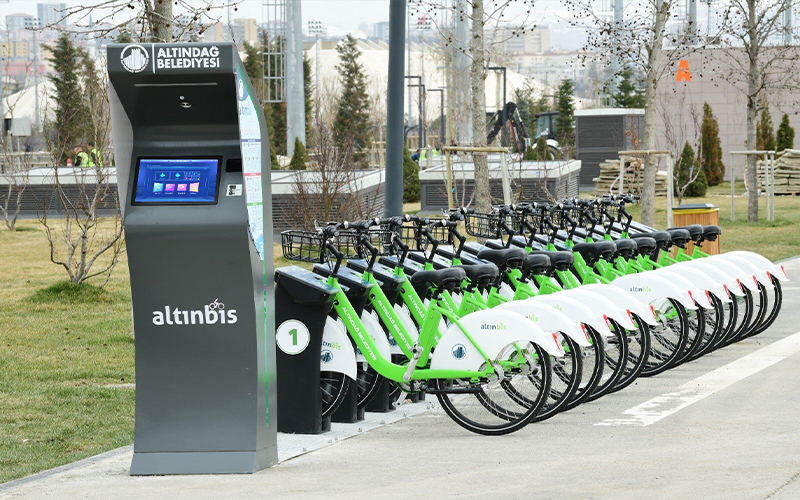

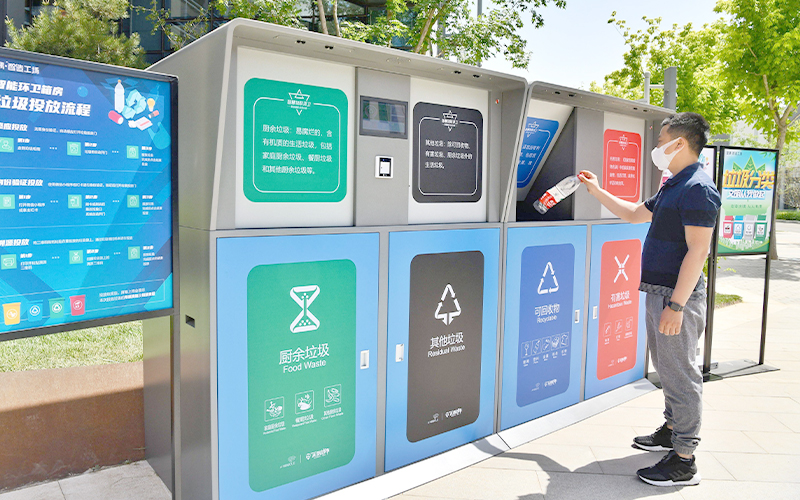

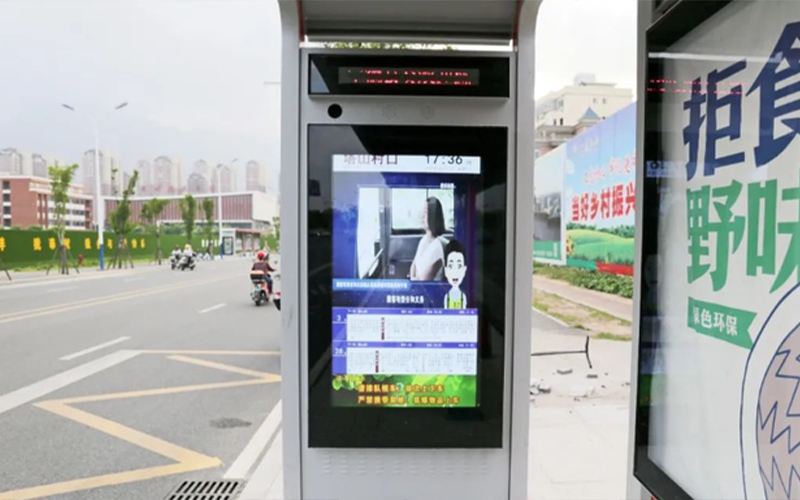

| Smart bus stop sign | Smart parking/pick-up terminal | Smart Environmental Protection Terminal |
| Size | Model | Display ports | Ratio | Display Size (W*H*T) | Active Area Dimensions(H*V) | Brightness (nits） | Resolution @60Hz | Data Download |
| 10.1" | GT-TM2CGL-101-F | VGA,DVI,HDMI | 16:10 | 265 x 180 x 43.5mm | 219 x 138mm | 1000 | 1280 x 800 | |
| 10.4" | GT-TM2CGL-104-F | VGA,DVI,HDMI | 4:3 | 261.6 x 208.8 x 47.5mm | 213 x 160mm | 1000 | 1024 x 768 | |
| 12.1" | GT-TM2CGL-121-F | VGA,DVI,HDMI | 4:3 | 294.4 x 233 x 47.5mm | 247 x 185.5mm | 1000 | 1024 x 768 | |
| 13.3" | GT-TM2CGL-133-F | VGA,DVI,HDMI | 16:9 | 350.8 x 222 x 47.5mm | 294 x 166mm | 1000 | 1920 x 1080 | |
| 15" | GT-TM2CGL-150-F | VGA,DVI,HDMI | 4:3 | 355 x 279.4 x 47.5mm | 305 x 229mm | 1000 | 1024 x 768 | |
| 15.6" | GT-TM2CGL-156-F | VGA,DVI,HDMI | 16:9 | 398 x 248 x 47.5mm | 343.5 x 192.8mm | 1000 | 1920 x 1080 | |
| 17" | GT-TM2CGL-170-F | VGA,DVI,HDMI | 4:3 | 385 x 317 x 47.5mm | 339 x 271mm | 1000 | 1280 x 1024 | |
| 18.5" | GT-TM2CGL-185-F | VGA,DVI,HDMI | 16:9 | 457 x 281 x 47.5mm | 409 x 229mm | 1000 | 1920 x 1080 | |
| 19" | GT-TM2CGL-190-F | VGA,DVI,HDMI | 4:3 | 430 x 355 x 47.5mm | 379 x 304mm | 1000 | 1280 x 1024 | |
| 21.5" | GT-TM2CGL-215-F | VGA,DVI,HDMI | 16:9 | 532 x 319 x 47.5mm | 479.6x 271mm | 1000 | 1920 x 1080 | |
| 23.8" | GT-TM2CGL-238-F | VGA,DVI,HDMI | 16:9 | 586 x 356 x 47.5mm | 528 x 298mm | 1000 | 1920 x 1080 |
