* CPU: Integrated Intel® UHD Graphics
* Cooling System: With fan
* Memory: 2133/2400/2666MHz(Standard) ,up to 64GB RAM
* Storage(Hard Disk): Support M.2 2280 size, SATA & NVME
(PCIE)signals (Default);Option 2242 size
* Decoding Resolution:Support up to 4096/3840x2160
* Operating System: Compatible with Windows 10 64bit,Linux
* Other Functions: GPIO pin;CLR_CMOS pin;CPU-FAN pin;SYS-FAN pin
* Network Support :The motherboard supports 1xGbE RJ45 LAN
interface(1xRealtek 8111H 1000Mbps chip)

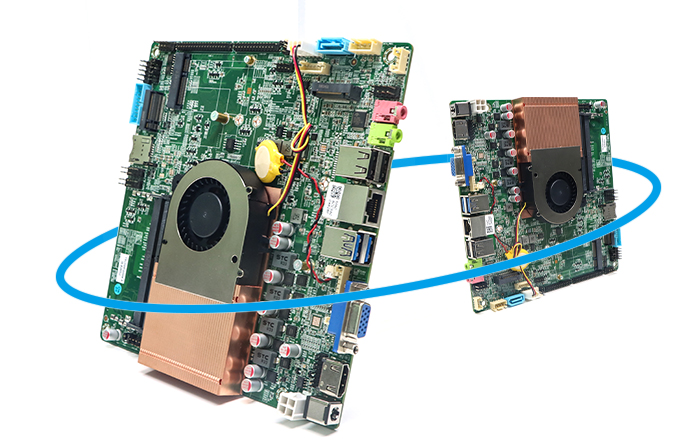

The GT8H-5G motherboard uses Whiskey Lake 8 Core I3/I5/I7 central processor, equipped with Windows system, and has a main frequency of up to 2.1GHz for strong performance. Integrated Intel UHD Graphics ultra-core graphics card, supports single display, dual display/triple display duplication, dual display/triple display expansion, and single display under DOS. It integrates LVDS/EDP/Ethernet/HDMI/WIFI/Bluetooth functions and supports PCI-E 3G/4G modules. It is simple, slim and outstanding. Mainly used in finance, retail, medical, all-in-one machines, advertising machines, industrial computers and other fields, it is your best choice for human-computer interaction and industrial control projects.
♦ High integration: Integrate USB/LVDS/EDP/HDMI/Ethernet/WIFI/Bluetooth into one, simplifying the overall machine design and equipped with fan for active cooling.
♦ High stability: In terms of hardware and software, we add our own independently developed technology to ensure the stability of the product, making the final product unattended 7*24 hours.
♦ Rich expansion interfaces: 8 USB interfaces (3*USB3.1, 5*USB2.0), 6*COM interfaces (default supports RS232; COM1 supports RS422/RS485 optional), which can meet various needs on the market. Peripheral requirements.
♦ High definition: supports up to 4096×2160 decoding and various LVDS/EDP interface LCD displays.
♦ Complete functions: supports horizontal and vertical screen playback, video split-screen, rolling subtitles, timer switch, USB data import and other functions.
♦ Convenient management: Humanized playlist background management software facilitates advertising playback management and control. Playback log to facilitate understanding of playback status
| Product Name: | GreenTouch GT8H,GT9H,GT10H | Series: | GT8H-5G-UA,GT9H-5G-UA,GT10H-5G-UA |
| Memory： | 2xSODIMM 2133/2400/2666MHz DDR4 Memory slots, up to 64GB RAM | CPU Graphics: | Integrated Intel® UHD Graphics / Intel® Iris® Plus Graphics in CPU |
| Display Function: | Support single display, dual/triple display copy, dual/triple display expansion,single display under DOS | Display Function: | The LVDS, EDP pins cannot exist at the same time. By default , LVDS works, EDP doesn't work; Option EDP |
| Ethernet: | Support Wake-on-LAN and PXE function,Option Realtek 8106E 100Mbps chip RJ45 LAN | 5G Module： | By default,the motherboard doesn’t support M.2 KEY-B_5G interface. If you need this interface,please inform us in advance |
| Expansion： | Support PCIE, USB signals (For wifi/Bluetooth/3G/4G LTE/GPS module,etc);Option SATA signal (For MSATA SSD) | 3G/4G/5G/GPS: | Support SIM card. A SIM card is required when using 3G/4G LTE/5G/GPS function |
Storage(Hard Disk): | Support M.2 2280 size, SATA & NVME (PCIE)signals (Default);Option 2242 size | Sound Function: | Integrated Cmedia HS_100B USB HD Audio chip(Default); Do not support Stereo Mix function, Windows Embedded series operating system |
| USB Function： | Rear standard USB3.1 Gen2 interface;Rear standard USB2.0 interfaces | Serial port: | (COM1 pin)Standard RS232(Default); Option RS232/RS422/RS485 by BIOS setting. (9Pin,2x5Pin,2.54mm) |
| Other Functions: | 1xGPIO pin;1xCLR_CMOS pin;CPU-FAN pin;SYS-FAN pin | Operating System: | Compatible with Windows 10 64bit,Linux |
Interface Parameters

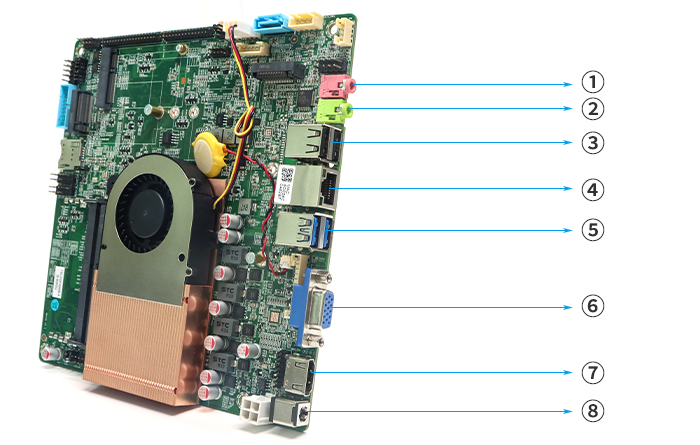

| Interface display | Interface description |

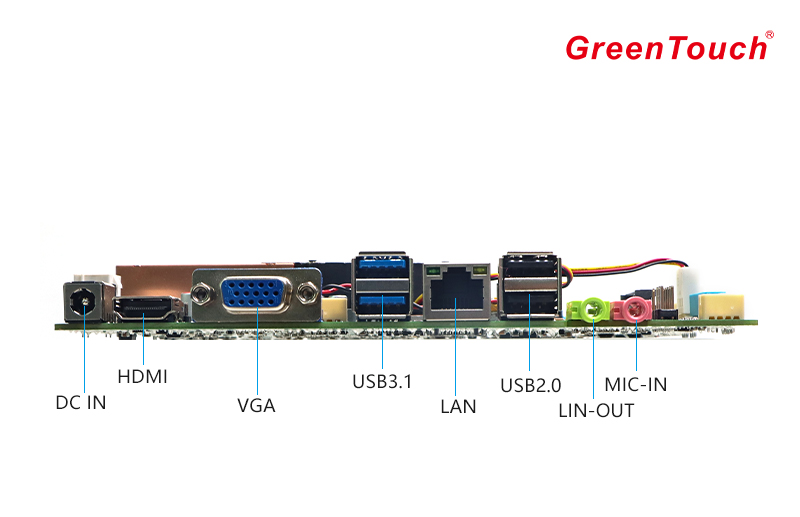

 | ①MIC_IN: Support Microphone input ②LIN_OUT: Support Audio output ③USB2.0: Its maximum transmission bandwidth is 480Mbps(60MB/s) ④LAN: The motherboard supports 1xGbE RJ45 LAN interface(1xRealtek 8111H 1000Mbps chip) ⑤USB3.1: Its maximum transmission bandwidth is 10.0Gbps ⑥VGA: support single display, dual/triple display copy, dual/triple display expansion,single display under DOS ⑦HDMI: support single display, dual/triple display copy, dual/triple display expansion,single display under DOS(supports 4K resolution 4096/3840x2160@60Hz ) ⑧DC IN: power input |

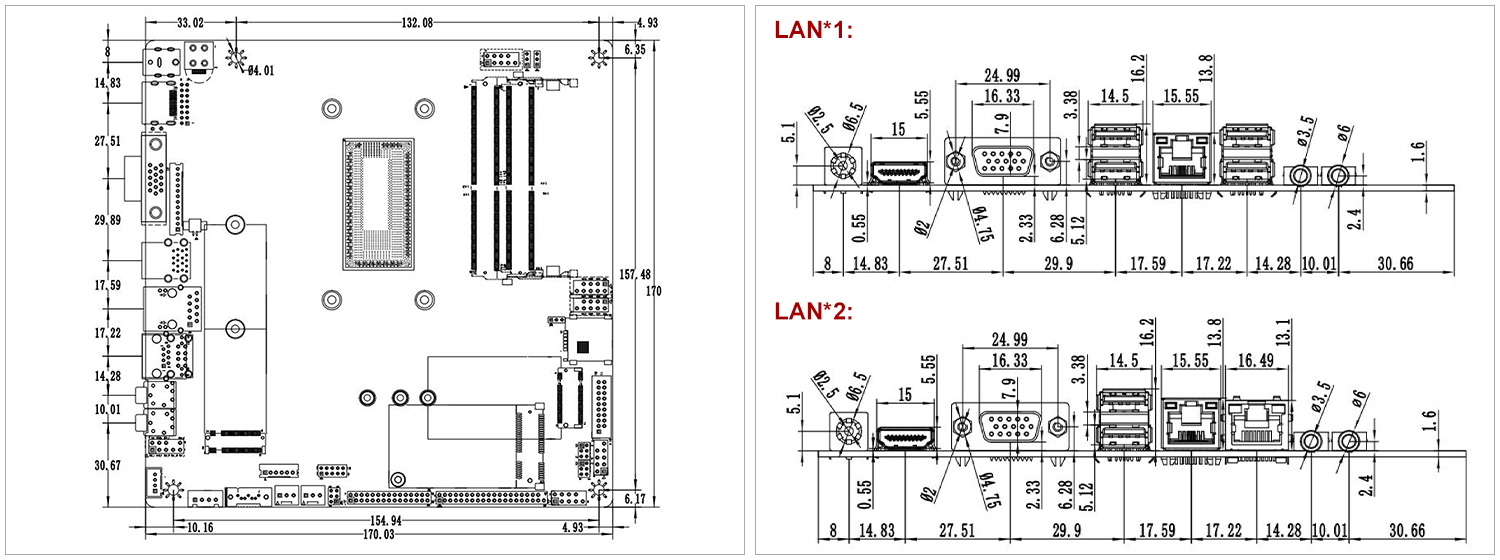

PCB Size Diagram
Application Scenario
 |  |  |
| Industrial automatic control system | Video surveillance system | Internet Security Systems |
 |  |  |
| Medical equipments | Smart transportation | Mall,Supermarket |
