Desktop Touch Computer 10.1 to 23.8 inches

* Display Type: Active Matrix TFT LCD, LED Backlight

* Touch Type:PCAP ,10 Points Touch

* Extra Video Output:1*VGA,1*HDMI

* Interface:4X USB,4XRS232

* Motherboard:Inter I3,I5,I7

* Water-proof/Dust-proof/Explosion-proof:IP65(Front)/IK08(Front)

* Supported OS:Windows,Android,Linux

* Certificates:UL,FCC,CE,CB,HDMI

* Warranty:1 Year

Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

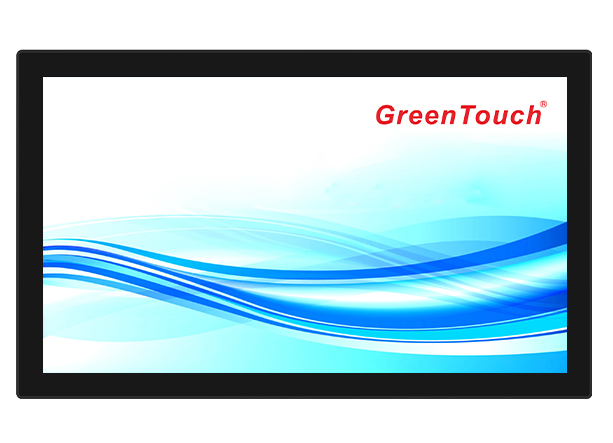

    GreenTouch's self-developed 2C series of open frame touch all-in-one computers can support Windows,Linux operating systems,with excellent functionality and flexibility,and provide you with reliable industrial or commercial-level solutions for your industry.Easy for your automation system integration to achieve simple human-computer interaction,so that the interactive experience seamless docking.The 2C series uses 10-point projection capacitive touch technology,adopts modular design,versatile and powerful,provides a variety of sizes and configuration options, and has cross-environmental use the versatility, sturdiness and durability, can meet the needs of continuous public use.

    Product Overview

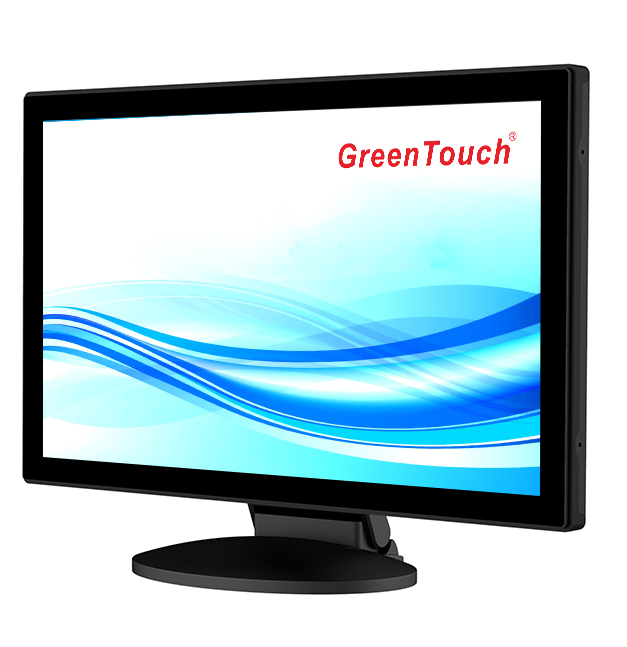

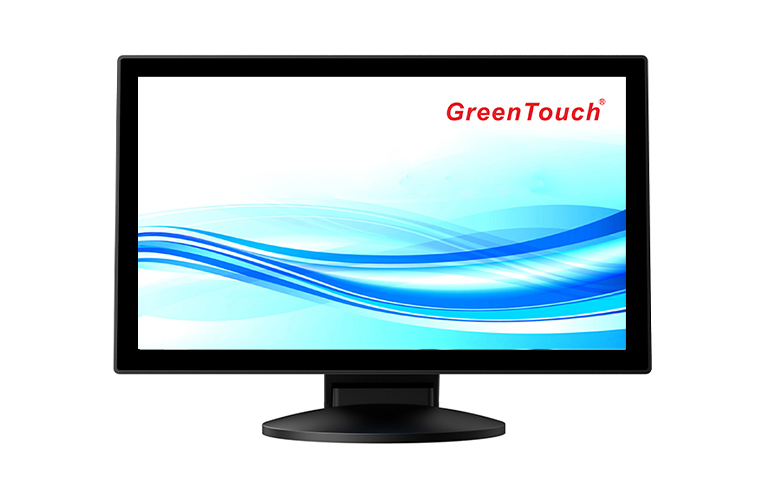

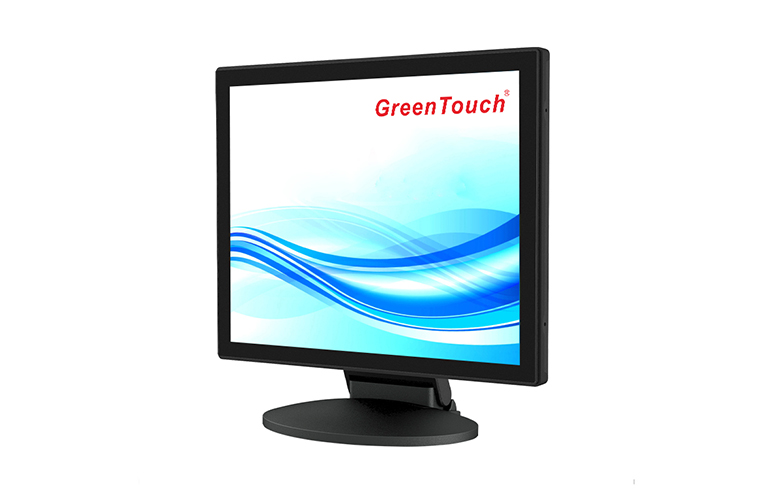

    2C desktop touch all in one PC adopt projected capacitive 10-point touch,10.1"-23.8" optional,sensitive sensing,accurate fixed point,anti-jamming positioning technology,small-strength touch has both sensing, fast and fast response,achieving super positioning and precise tracking.It with perfect image performance,can instantly capture and attract users' attention.We provide one-year warranty for global customers,from product design to production,to software,to product testing,all by our company's professional team,in pursuit of perfect product operation and peripheral after-sales service.


    Product Features

    ♦ Adopt AUO, LG, BOE premium A+ grade original industrial LED screen.

    ♦ Front panel reach waterproof,dustproof IP65 and explosion-proof IK08.

    ♦ Use Intel Celeron J1900 industrial motherboard,optional I3,I5,I7 processors.

    ♦ Using industrial plastic and industrial black metal frame,durable and reliable.

    ♦ Support APP application,Wifi,4G,running 24 hours a day.

    ♦ Dense ventilation holes on the back,efficient heat dissipation,ensure safety。

    ♦ Optional external mounting bracket and standard VESA mounting.

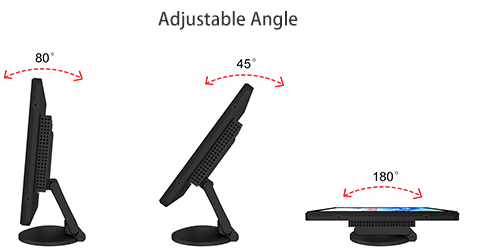

    The back shell of GreenTouch desktop 2C touch all-in-one is equipped with standard 75mm or 100mm VESA mounting holes, which can be adapted to various bases for installation, simple and easy to operate, and supports 180-degree adjustment and flipping of the display.

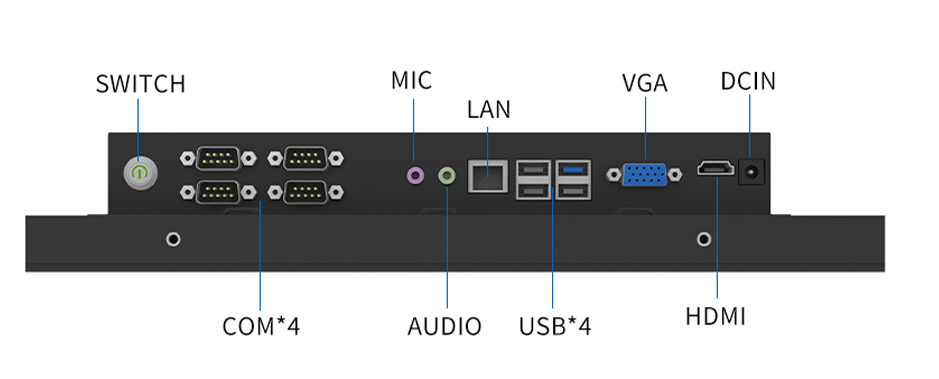

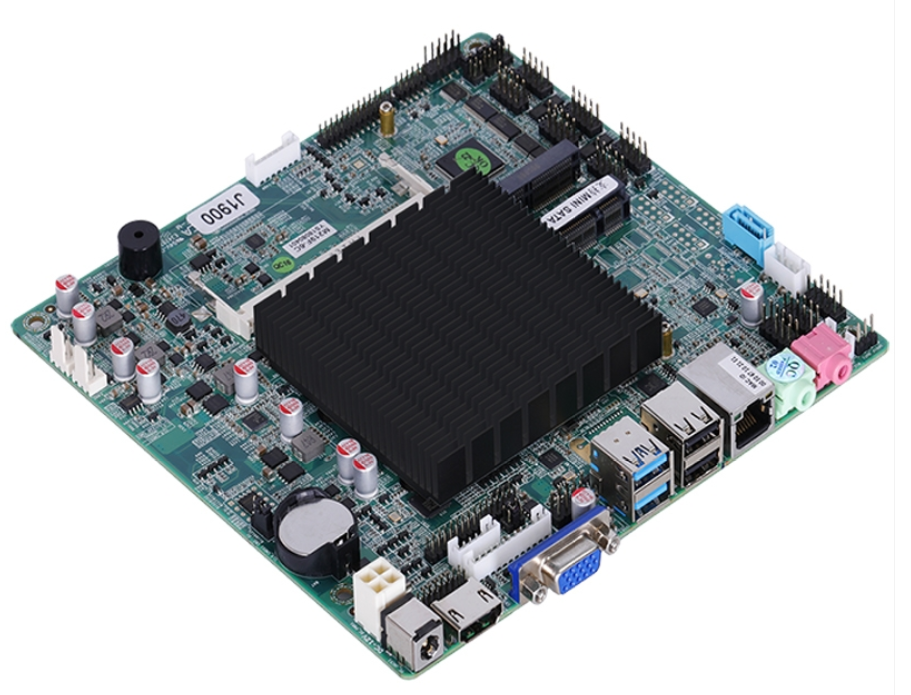

    Display Ports and  Motherboard

    Touch all-in-One 2C is with a range of I/O ports and support a variety of third-party peripherals. The standard ports include four RS-232 serial ports, four USB ports, Gigabit Ethernet interface RJ45 and a group of 3.5MM audio input port and a group of audio output port, a VGA and an HDMI video output port to be easy to increase the second monitor.Using Intel Bay Trail-D chipset,Celeron J1900 and Intel Core series Intel Core I3-U Intel Core I5-U Intel Core I7-U.







    Product Customizable

    ① Product size

    ② Customer Logo

    ③  LCD brightness(350-1000 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

    ⑤ Motherboard,memory,storage,systems optional




    Technical parameter

                        Product Name:

    Desktop Touch All-in-one

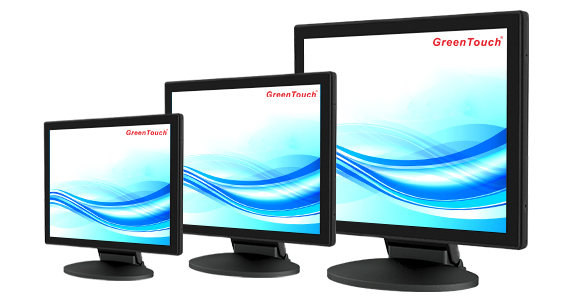

                         Sizes:10.1”,15”,15.6”,17”,18.5”,19”,21.5”,22”,23.6”,23.8”

                   Case Color,Display Type:

     Black,Active Matrix TFT LCD, LED Backlight

                       Color:

    16.7 M

                        Touch Technology:

    Touch Chip:weida、eeti、ilitek      Touch Points:10 points    Touch Supply Voltage:5V        Touch Interface:USB        Touch Systems:Windows,linux

              Motherboard:

    Intel Bay Trail-d , Celeron J1900 @1.99GHz,Intel Core Series Intel Core I3-U,Intel Core I5-U,Intel Core I7-U

                    Graphics:

    Onboard Intel HD graphics

                        Sound Card:Onboard Realtek ALC662HD Audio Decoding

                        RAM:

    Optional GB、4GB、 8GB

                        MSTAT SSD:Optional 32G、64G、128G、256G
                        HDD:Optional Addition of 500G, 1T HDD
                       Wifi: Uilt-in 802.11b / g / n Wireless, External Two 3DB Omnidirectional Antenna

                     Speakers:

    Built-in 2*3W Speakers

                 Extra Video Output:

    1 x VGA; 1 x HDMI

                       USB Interface:

    4 xUSB Type-a

                 Network Card:

    1 Road Onboard Realtek 8111e Gigabit

    Audio Interface:

    1*3.5mm Audio Input;1*3.5mm Audio Output

                 RS232 Interface:

    4*RS232(standard)Interfaces

                       Power:

    External DC, Input Voltage DC: 12V INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) -Type: DC cartridge receptacle; Cartridge ID: 5.5  mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1mm);Cartridge depth: 8.0 mm (± 0.3 mm);

               Power Consumption:

    Depend on Motherboard and the minimum is 25W

                   Supported OS:Support Windows OS(suggest Windows7 up );Linux;Android

          Temperature:

    Operating: 0 ° C to 60 ° C; Storage: -20 ° C to 60

    Humidity:

    Operating: 20% to 80% (non-condensing); Storage: 5%to 95% (non-condensing)

                      Warranty:

    1 Year

                  Mounting Options:

    100mm or 75mm VESA mounting,open bracket mounting

                       Water-proof/Dust-Explosion-proof:

    IP65(front)/IK08(front)

            Surface Treatmen:

    AG ,AR ,AF (Opitonal)

                       Certificates:

    RoHS, FCC, CE, CB,HDMI


    Cover Application


    Information query, industrial automation, self-service, gaming and entertainment industries,etc.

    Specification and download
    Sizes

    Model

    Display PortsRatioDisplay Size(W*H*T)Active Area (H*V)Brtghtness(nits)Resolution @60HzData Download
    10.1"GT-TC-1012C-CTW-PCVGA,HDMI16:10263.8 x 178.8 *45mm216.9 x 135.6mm3301280 x 800Download

    15"

    GT-TC-1502C-CTW-PC

    VGA,HDMI

    4:3

    355 x 279 x 57mm

    304 x 228mm

    300

    1024 x 768

    Download

    15.6"

    GT-TC-1562C-CTW-PC

    VGA,HDMI

    16:9

    398 x 248 x 47mm

    344.2 x 193.6mm

    400

    1920 x 1080

    Download

    17"

    GT-TC-1702C-CTW-PC

    VGA,HDMI

    5:4

    385 x 317 x 57mm

    337.9 x 270.3mm

    250

    1280 x 1024

    Download
    18.5"

    GT-TC-1852C-CTW-PC

    VGA,HDMI16:9457 x 281 x 57mm409.8 x 230.4mm2501366 x 768Download

    19"

    GT-TC-1902C-CTW-PC

    VGA,HDMI5:4430 x 355 x 57mm409.8 x 231mm2501280 x 1024Download
    21.5"GT-TC-2152C-CTW-PCVGA,HDMI

    16:9

    532 x 319 x 57mm476.6 x 268.1mm2501920 x 1080Download
    22"

    GT-TC-2202C-CTW-PC

    VGA,HDMI16:10527.2 x 350 x 60mm473.8 x 296.1mm2501680 x 1050Download
    23.6"

    GT-TC-2362C-CTW-PC

    VGA,HDMI16:9581.8 x 350.8 x 60mm521.3 x 293.2mm3001920 x 1080Download
    23.8"GT-TC-2382C-CTW-PCVGA,HDMI16:9

    586 x 356 x 60mm

    527 x 296.4mm2501920 x 1080Download
