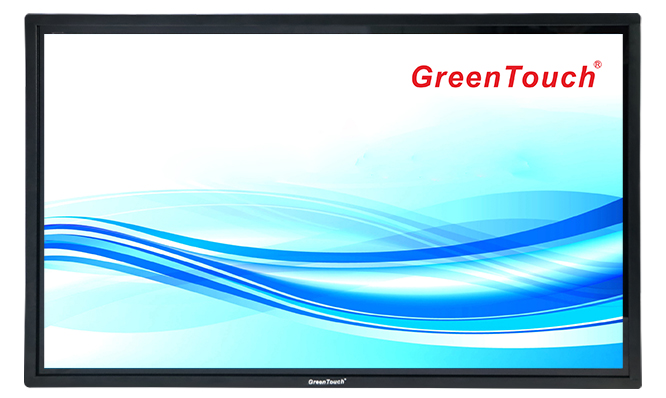

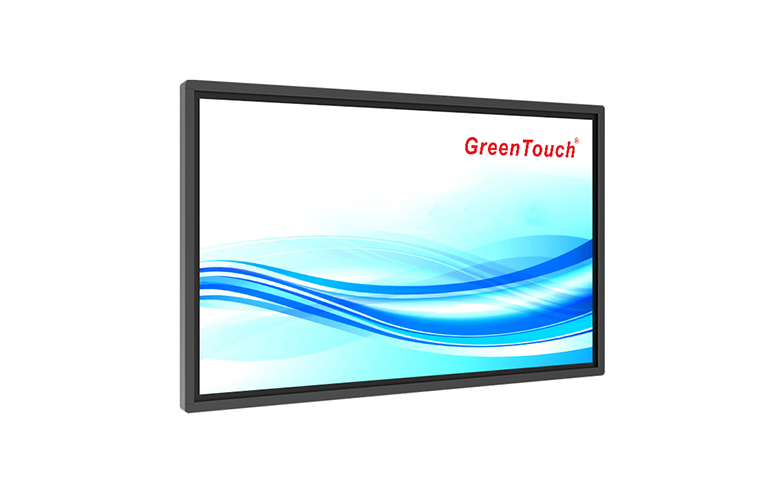

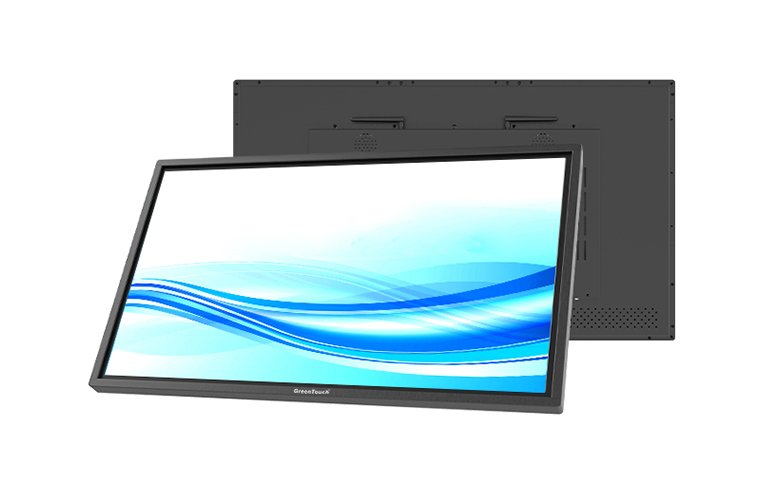

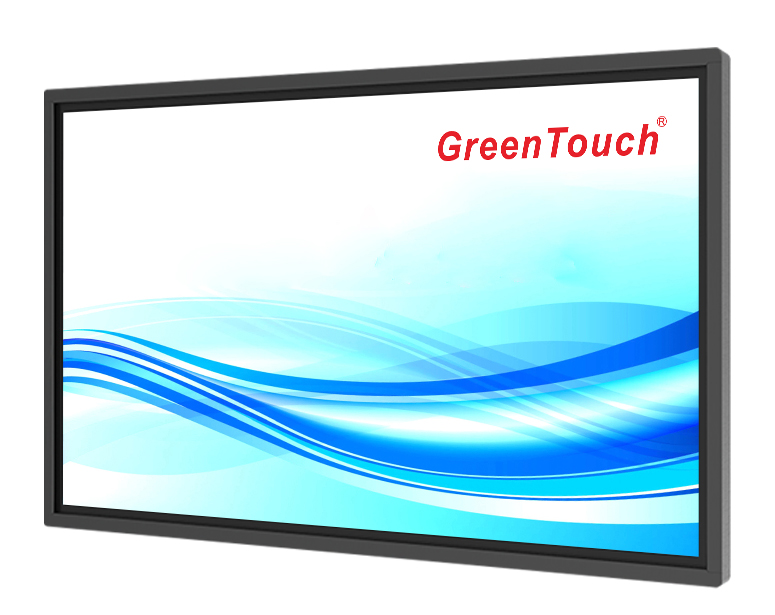

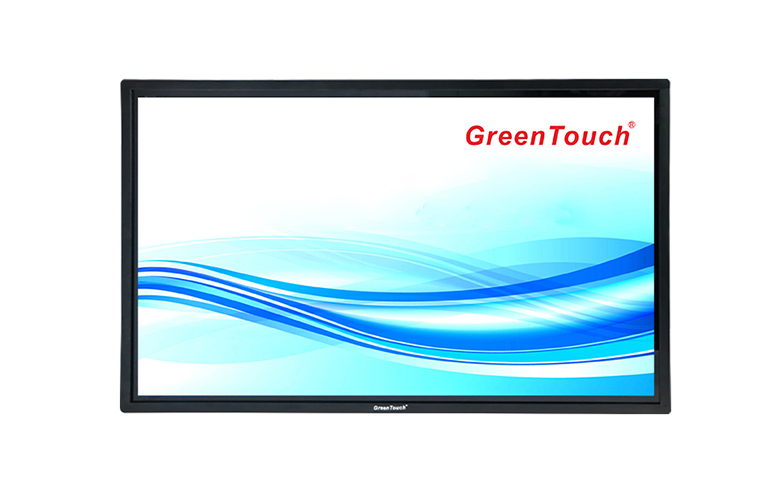

Wall Mounted Touch PC Computer 32 to 55 inches Android

* Display Type: Active Matrix TFT LCD, LED Backlight

* Touch Type:Infrared,20 Points Touch

* Explosion-proof :IK08

* CPU: Rockchip RK3399 64-bit high-performance;Core micro RK3288,the strongest four core,QuanzhiA83T

* Power: Built-in 3C certification power supply, global voltage,AC100-240V, 50/60Hz

* Certificates: FCC,CE,RoHS,CB


Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

    Product Overview

    GreenTouch's self-developed Android version of the open frame touchscreen computer is one of the most versati product lines on the market. It is suitable for a safe and flexible Android system and provides you with reliable commercial or industrial-grade solutions. Easy for your automation system integration to achieve simple human-computer interaction,so that the interactive experience seamless docking.Our 2E touch computers have passed CE, FCC, CB,UL,HDMI certifications, and excellent quality assurance,after-sales service. From product design to production,to software development,to product testing,all the processes are taken care of by our professional team, pursuing the perfect operation of products and satisfying customer service.


    Product Performance

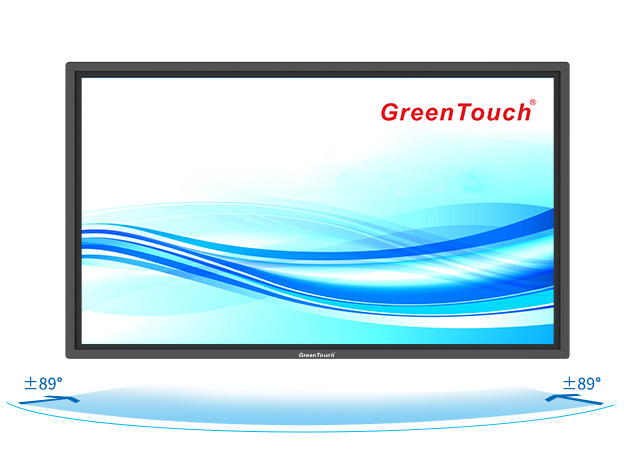

    The four regular sizes of our 2E series touch all-in-one as follows, 32", 43", 49", 55", and adopts 20-point infrared touch technology.They sensitive sensing, accurate fixed point, anti-jamming positioning technology, small-strength touch has both sensing, fast and fast response, achieving super positioning and precise tracking.The clarity, resolution, transparency, touch accuracy, and image vividness of the 2E touchscreen PC are all excellent, which can instantly capture and attract the user's attention.They have passed EMC anti-interference testing and explosion-proof and anti-vibration,can meet the requirements of IK08 and possess good optical stability and touch durability.


    Product Features

    ♦ Adopt AUO,LG,BOE international premium A+ grade original industrial LED screen.

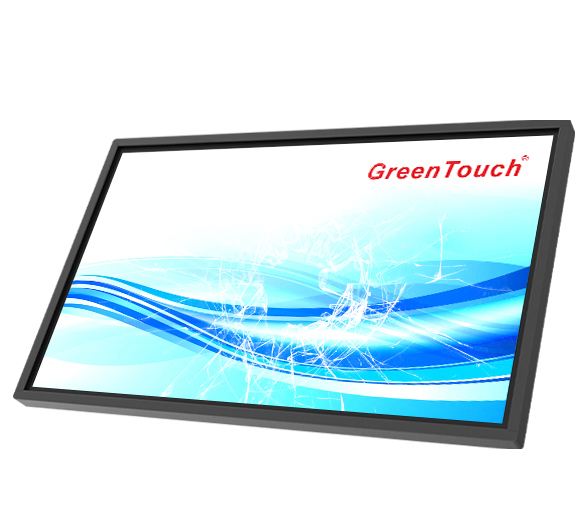

    ♦ Surface touch is adopted 3-5mm tempered glass ,explosion-proof IK08.

    ♦ customized aviation aluminum front shell + high temperature metal back shell,sturdy and durable.

    ♦ Use Core micro RK3288 the strongest four core 1.8GHz industrial motherboard.

    ♦ Support Ethernet, APP application, Wifi, 4G,pass the EMC anti-interference testing.

    ♦ Large size 32"-55", with brackets can be wall-mounted or ground mobile installation.

    ♦ Support for custom,brightness 400-1000 cd/m², surface treatment AG, AR, AF (optional).

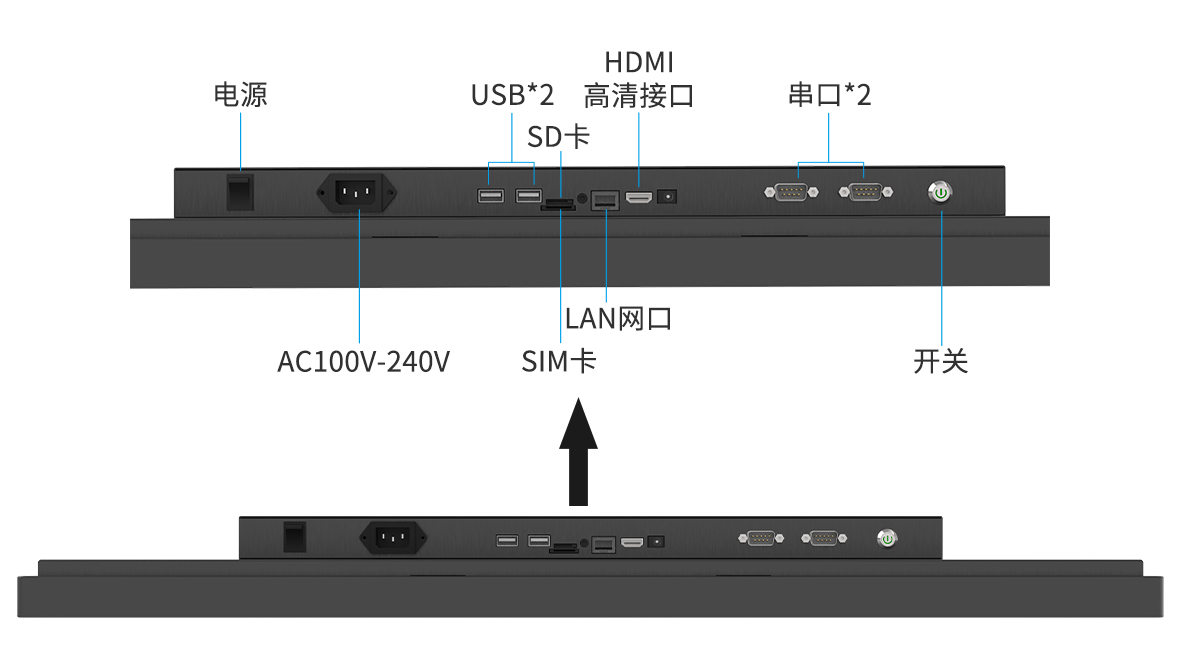

    Installation,Display Ports,Motherboard

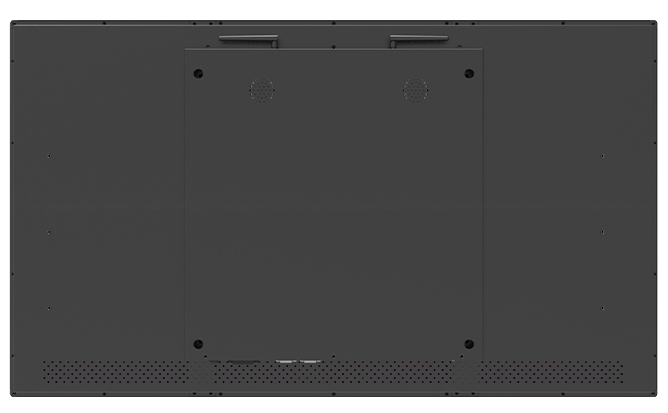

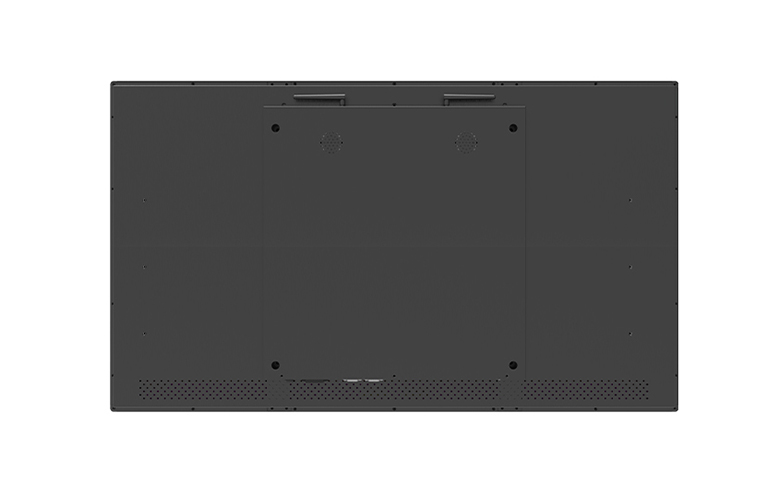

    2E touch screen all in one using high temperature black sheet metal back shell,strong and durable without rust.They optional wall-mounted bracket, horizontal base, removable bracket for installation and use, the installation mode is diversified, simple and easy to operate.2E is with a range of I/O ports and support a variety of third-party peripherals.Optional high-performance Rockchip RK3399 64-bit, Rockchip RK3288 powerful quad-core.






    Technical parameter


    Product Name:Touch All-in-oneSizes:32",43",49",55"
    Case Color,Display Type:Active Matrix TFT LCD, LED BacklightShell Color:Black
    Brightness:400 cd/m²Shell Material:viation aluminum front shell + high temperature black sheet metal back
    Ratio:16:9Resolution(pixel):1920*1080 @60Hz
    Response time:8 msContrast ratio:1200:1
    Color:16.7MHDMI Out:1,Support 1080P@120Hz,4kX2k@60Hz Output
    Net Weight:32":13.5kg,43":15.5kg,49":18.5kg,55":21.5kgMemory:Default 2GB (up to 4GB)
    Touch Technology:Infrared 20 Touch PointsSpeakers:Built-in 2*3W speakers
    Touch supply voltage:5VUSB Interface:2 xUSB HOST
    Touch Interface:USBTouch Systems:Windows,Android,linux
    TF Card:Support TF CardHeadset / Microphone:1 external headphone audio output
    Audio and video output:Support left and right channel output, built-in 8R / 5W power amplifierVideo function:USB camera support
    Operating system:Android  6.0Temperature:Operating: 0 ° C to 60 ° C; Storage: -20 ° C to 60 ° C
    Warranty:1 YearHumidity:Operating: 20% to 80% , Storage: 5% to 95%
    Mounting options:400MMX400MM wall-mounted installation; mobile bracket installation; K-type baseExplosion-proof:IK08
    Surface Treatmen:AG,AR,AF(Optional)Certificates:FCC、CE、CB、RoHS

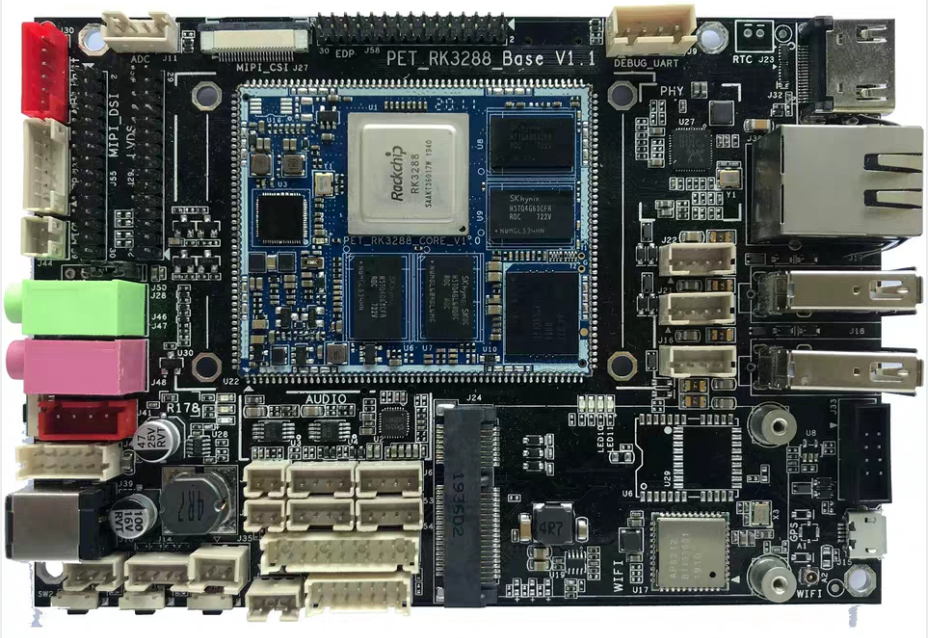

    Motherboard:ZC-329: CPU: Rockchip RK3399 64-bit high-performance CPU, 2.0GHz; dual Cortex-A72 large core + four Cortex-A53 small core 64-bit CPU, built-in low-power MCU Cortex-M0 ZC-328: Core micro RK3288, the strongest four core 1.8GHz Cortex-A17, four core GPUMail-T764 ZC-83E: QuanzhiA83T, Cortex-A7 architecture, main frequency 2.0G
    Built in memory: EMMC8G(Default)/16G/32G/64G(optional) ZC-83E Motherboard: up to 32G
    Wireless:Built in WiFi or WiFi / BT module (optional), 802.11b/g/n, default single WiFi module, external 1 3dB omnidirectional antenna
    Power:External AC, input voltage-AC: 100-240VAC 50HZ-60HZ; input power connector specification (on the all-in-one machine)-type: pin suffix socket





    Product Customizable


    ① Product size

    ② Customer Logo

    ③  LCD brightness(4000-1000 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

    ⑤ Motherboard,memory,storage,systems (optional)



    Product Packaging








    Specification and download

    Sizes

    Model

    Touch TechnologyTouch Points

    Display Size(W*H*T)


    Active Area Dimensions(H*V)


    Net Weight(KG)

    Data Download

    32"

    GT-TC-3202E-IR-Android

    Infrared20

    748.4 x 441 x 68mm

    698.4 x 392.9mm

    13

    Download

    43"

    GT-TC-4302E-IR-Android

    Infrared20

    988.3 x 576.7 x 74.9mm

    940.9 x 529.3mm

    15.5

    Download

    49"

    GT-TC-4902E-IR-Android

    Infrared20

    1118.4 x 649.7 x 77mm

    1073.8 x 604mm

    18.5

    Download

    55"

    GT-TC-5502E-IR-Android

    Infrared20

    1261.2 x 732.5 x 76.8mm

    1209.6 x 680.4mm

    21.5

    Download
