* Display Type: Active Matrix TFT LCD, LED Backlight
* Touch Type：PCAP ,10 Points Touch
* Extra Video Output:1*VGA,1*HDMI
* Interface:2X USB Host
* Motherboard：Core Micro RK3288, The Strongest Four Core 1.8GHz
* Water-proof/Dust-proof/Explosion-proof:IP65(Front)/IK08(Front)
* Supported OS:Android 6.0
* Certificates：UL,FCC,CE,CB,HDMI
* Warranty：1 Year
GreenTouch's self-developed Android version of the open frame touchscreen computer is one of the most versati product lines on the market. It is suitable for a safe and flexible Android system and provides you with reliable commercial or industrial-grade solutions. Easy for your automation system integration to achieve simple human-computer interaction,so that the interactive experience seamless docking.The 2C series uses 10-point projection capacitive touch technology,adopts modular design,versatile and powerful,provides a variety of sizes (10.1 to 55 inches) and configuration options, and has cross-environmental use the versatility, sturdiness and durability, can meet the needs of continuous public use.
GreenTouch's open frame touch all in one 2C series delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product .Designed with reliability from the start.They deliver outstanding image clarity and light transmission with stable,drift-free operation for accurate touch responses.2C Precise small frame design make it easier for customers to install 2C in the cabinet.Designed and built by GreenTouch,the model has a long life cycle period and can supply long-term demands.Even if the future replacement of a new generation of LCD panels, you do not need to do external changes.
♦ Adopt AUO, LG, BOE premium A+ grade original industrial LED screen.
♦ Front panel reach waterproof,dustproof IP65 and explosion-proof IK08.
♦ Use Core micro RK3288 the strongest four core 1.8GHz industrial motherboard.
♦ Using industrial plastic and industrial black metal frame,durable and reliable.
♦ Passed EMC anti-interference testing,running 24 hours a day.
♦ Dense ventilation holes on the back,efficient heat dissipation,ensure safety。
♦ Optional external mounting bracket and standard VESA mounting.
♦ Multi-size 10.1" to 55" optional,support OEM/ODM services.

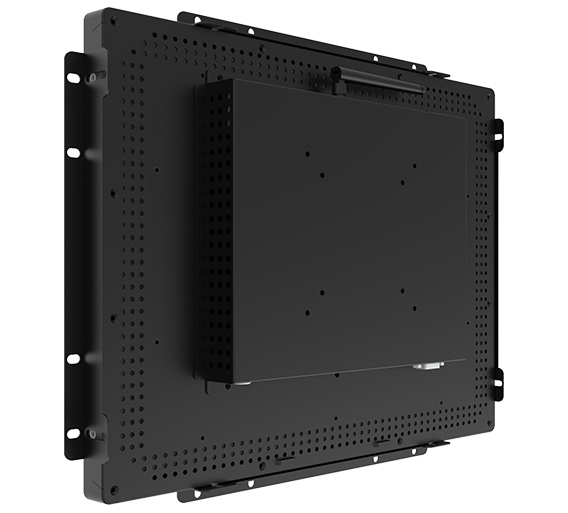

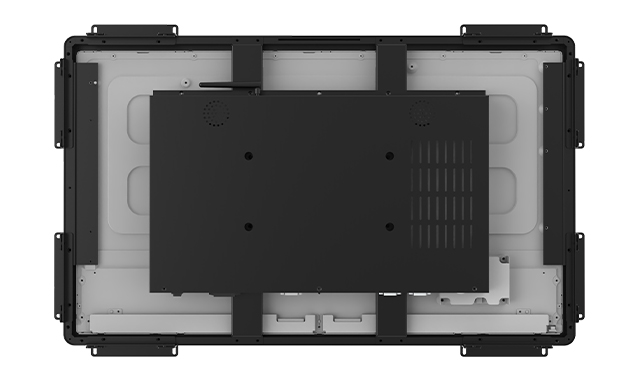

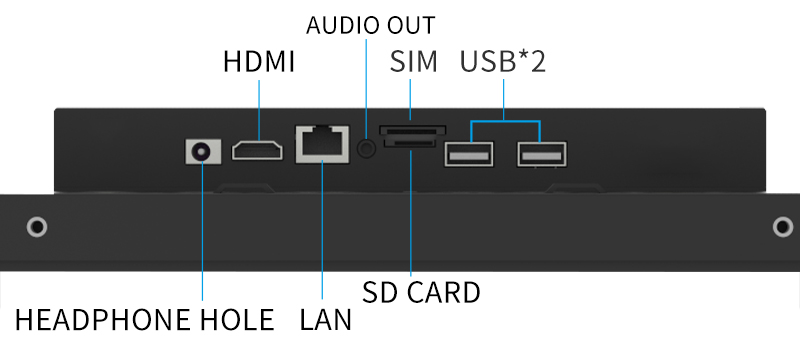

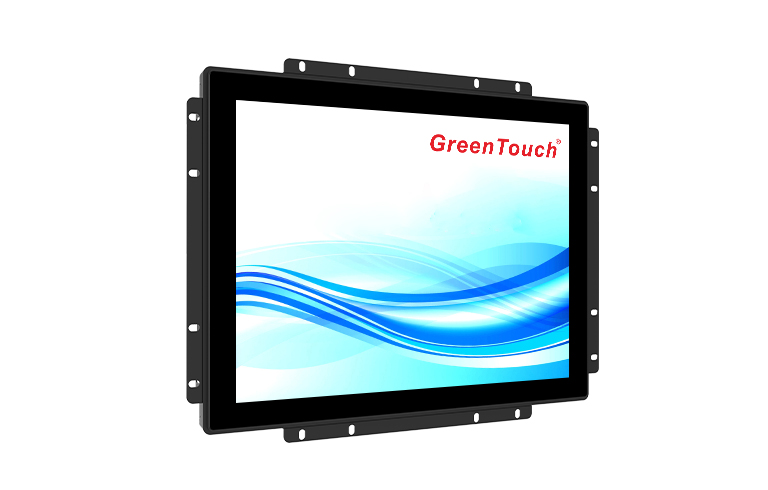

As shown the picture 1,2C touch all-in-one (10.1" to 27") is equipped with external bracket for embedded installation,and the back shell is equipped with a standard VESA (100mm x 75mm) mounting hole for desktop or wall-mounted installation.As shown the picture 2,2C touch screen computer (32" to 55") can equipped with the mounting bracket for embedded,wall mounted or movable base installation.The Android all-in-one PC has a series of output connection ports to support various third-party peripheral devices. Standard ports include 2 standard USB ports, 1 RS-232 serial port, Gigabit wired network card interface and a 3.5MM audio left and right channel output, 1 TF card and locked SIM card holder, 1 HDMI video Output port, easy to add a second guest display.

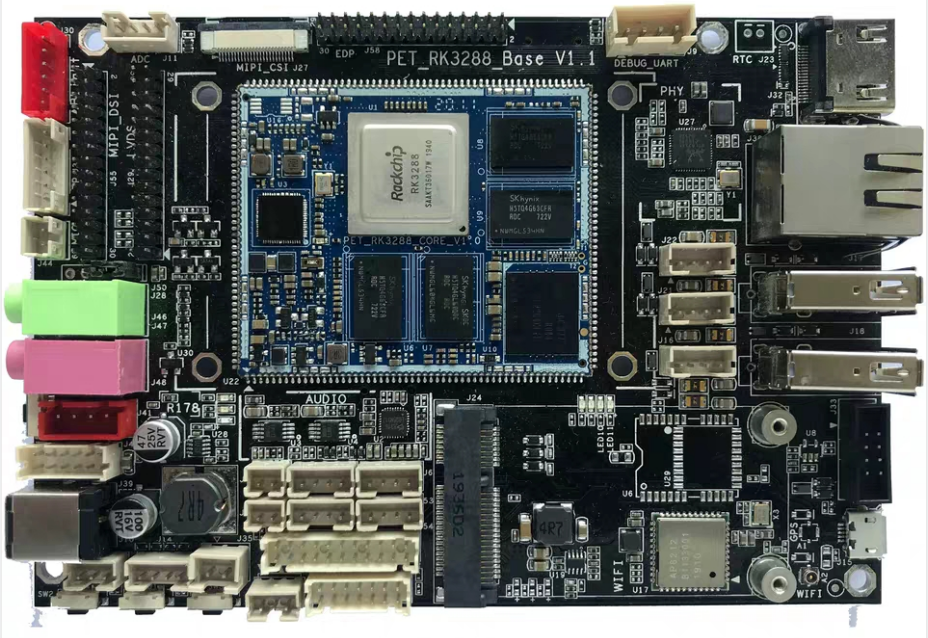

Operating system:Android 6.0,Motherboard:ZC-328: core micro RK3288, the strongest four core 1.8GHz Cortex-A17, four core GPUMail-T764 ZC-83E: Quanzhi A83T, Cortex-A7 architecture, main frequency 2.0G, Memory:Default 2GB (up to 8GB),Built in memory:EMMC8G(Default)/16G/32G/64G(optional) ZC-83E, Motherboard: up to 32G,Network support:3G,Ethernet, WiFi / Bluetooth 4.0, wireless peripheral extension, Wireless:Built in WiFi or WiFi / BT module (optional), 802.11b/g/n, default single WiFi module, external 1 3dB omnidirectional antenna.
① Product size
② Customer Logo
③ LCD brightness（350-1000 cd/m²）
④ Glass of surface treatment AG,AF,AR
⑤ Motherboard,memory,storage,systems optional
| Product Name： | Open Frame Touch All In One | Sizes： | 10.1 to 55 inches |
| Case Color,Display Type： | Active Matrix TFT LCD, LED Backlight | Color: | 16.7 M |
| Touch Technology: | Touch Chip：weida、eeti、ilitek Touch Points：10 points Touch Supply Voltage：5V Touch Interface：USB Touch Systems：Windows,linux,Android | ||
| Motherboard： | ZC-328: core micro RK3288, the strongest four core 1.8GHz Cortex-A17, four core GPUMail-T764 ZC-83E: Quanzhi A83T, Cortex-A7 architecture, main frequency 2.0G | ||
| Operating system: | Android6.0 | Memory: | Default 2GB (up to 4GB) |
| Built in memory: | EMMC8G(Default)/16G/32G/64G(optional) ZC-83E Motherboard: up to 32G | Network support: | 3G,Ethernet, WiFi / Bluetooth 4.0, wireless peripheral extension |
| Wireless: | Built in WiFi or WiFi / BT module (optional), 802.11b/g/n, default single WiFi module, external 1 3dB omnidirectional antenna | ||
| Speakers: | Built-in 2*3W speakers | HDMI Output: | Support 1080P@120Hz,4kX2k@60Hz Out put |
| USB Interface: | 2 xUSB HOST | TF Card: | Sopport TF card |
| Headset / Microphonet: | external headphone audio output | Audio and video output: | Support left and right channel output, built-in 8R / 5W power amplifier |
| Video function: | USB camera support | Power consumption: | Depend on Motherboard and the minimum is 25W |
| Power: | External DC, Input Voltage DC: 12V INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) -Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1mm);Cartridge depth: 8.0 mm (± 0.3 mm); | ||
| Temperature: | Operating: 0 ° C to 60 ° C; Storage: -20 ° C to 60 | Humidity: | Operating: 20% to 80% ; Storage: 5%to 95% |
| Mounting options: | 100mm or 75mm VESA mounting,open bracket mounting | Water-proof/Dust-Explosion-proof: | IP65(front)/IK08(front) |
| Surface Treatmen: | AG ,AR ,AF (Oponital) | Certificates： | RoHS, FCC, CE, CB, CCC,HDMI |
| Sizes | Model | Ratio | Display Ports | Display Size(W*H*T) | Display Size(W*H*T) | Brightness(nits) | Resolution @60Hz | Contrast ratio | Data Download |
| 10.1" | GT-TC-1012C-CTW-Android | 16:10 | VGA,HDMI | 263.8 x 178.8 x 45mm | 246.9 x 135.6mm | 330 | 1280 x 800 | 600:1 | Download |
15" | GT-TC-1502C-CTW-Android | 4:3 | VGA,HDMI | 355 x 279 x 47mm | 304.1 x 228mm | 300 | 1024 x 768 | 1500:1 | Download |
15.6" | GT-TC-1562C-CTW-Android | 16:9 | VGA,HDMI | 398 x 248 x 47mm | 344.2 x 193.6mm | 400 | 1920 x 1080 | 700:1 | Download |
17" | GT-TC-1702C-CTW-Android | 5:4 | VGA,HDMI | 385 x 317 x 47mm | 337.9 x 270.3mm | 250 | 1280 x 1024 | 1000:1 | Download |
| 18.5" | GT-TC-1852C-CTW-Android | 16:9 | VGA,HDMI | 457 x 281 x 47mm | 409.8 x 230.4mm | 250 | 1366 x 768 | 1000:1 | Download |
19" | GT-TC-1902C-CTW-Android | 5:4 | VGA,HDMI | 430 x 355 x 47mm | 376.3 x 301mm | 250 | 1280 x 1024 | 1500:1 | Download |
| 21.5" | GT-TC-2152C-CTW-Android | 16:9 | VGA,HDMI | 532 x 319 x 47mm | 476.6 x 268.1mm | 250 | 1920 x 1080 | 1000:1 | Download |
| 22" | GT-TC-2202C-CTW-Android | 16:10 | VGA,HDMI | 527.2 x 350.2 x 60mm | 473.8 x 296.1mm | 250 | 1680 x 1050 | 1000:1 | Download |
| 23.6" | GT-TC-2362C-CTW-Android | 16:9 | VGA,HDMI | 581.8 x 350.8 x 60mm | 521.3 x 293.2mm | 300 | 1920 x 1080 | 1000:1 | Download |
| 23.8" | GT-TC-2382C-CTW-Android | 16:9 | VGA,HDMI | 586 x 356 x 47mm | 527 x 296.5mm | 250 | 1920 x 1080 | 1000:1 | Download |
| 27" | GT-TC-2702C-CTW-Android | 16:9 | VGA,HDMI | 655.7 x 396 x 55mm | 597.9 x 336.3mm | 300 | 1920 x 1080 | 1000:1 | Download |
| 32" | GT-TC-3202C-CTW-Android | 16:9 | VGA,HDMI | 749.1 x 452.7 x 65mm | 698.4 x 392.9mm | 400 | 1920 x 1080 | 1200:1 | Download |
| 43" | GT-TC-4302C-CTW-Android | 16:9 | VGA,HDMI | 1007.3 x 596.6 x 69mm | 940.9 x 529.3mm | 400 | 1920 x 1080 | 1200:1 | Download |
| 49" | GT-TC-4902C-CTW-Android | 16:9 | VGA,HDMI | 1141.9 x 672.2 x 71mm | 1073.8 x 604mm | 380 | 1920 x 1080 | 1200:1 | Download |
| 55" | GT-TC-5502C-CTW-Android | 16:9 | VGA,HDMI | 1277.7 x 748.5 x 70mm | 1209.6 x 680.4mm | 400 | 1920 x 1080 | 1200:1 | Download |
