* Display Type: Active Matrix TFT LCD, LED Backlight
* Touch Type：PCAP ,10 Points Touch
* Extra Video Output:1*VGA,1*HDMI
* Interface:4X USB,4XRS232
* Motherboard：Inter I3,I5,I7
* Water-proof/Dust-proof/Explosion-proof:IP65(Front)/IK08(Front)
* Supported OS:Windows,Android,Linux
* Certificates：UL,FCC,CE,CB,HDMI
* Warranty：1 Year
GreenTouch's self-developed 2C series of open frame touch all-in-one computers can support Windows,Linux operating systems,with excellent functionality and flexibility,and provide you with reliable industrial or commercial-level solutions for your industry.Easy for your automation system integration to achieve simple human-computer interaction,so that the interactive experience seamless docking.The 2C series uses 10-point projection capacitive touch technology,adopts modular design,versatile and powerful,provides a variety of sizes and configuration options, and has cross-environmental use the versatility, sturdiness and durability, can meet the needs of continuous public use.
GreenTouch's open frame touch all in one 2C series delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product .Designed with reliability from the start.They deliver outstanding image clarity and light transmission with stable,drift-free operation for accurate touch responses.2C Precise small frame design make it easier for customers to install 2C in the cabinet.Designed and built by GreenTouch,the model has a long life cycle period and can supply long-term demands.Even if the future replacement of a new generation of LCD panels, you do not need to do external changes.
♦ Adopt AUO, LG, BOE premium A+ grade original industrial LED screen.
♦ Front panel reach waterproof,dustproof IP65 and explosion-proof IK08.

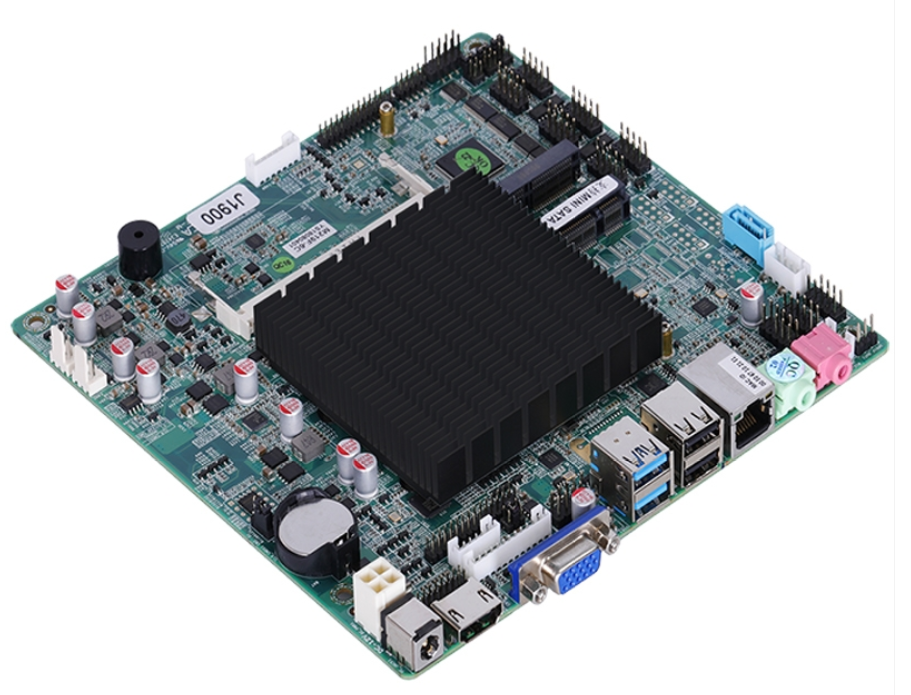

♦ Use Intel Celeron J1900 industrial motherboard,optional I3,I5,I7 processors.
♦ Using industrial plastic and industrial black metal frame,durable and reliable.
♦ Passed EMC anti-interference testing,running 24 hours a day.
♦ Dense ventilation holes on the back,efficient heat dissipation,ensure safety。
♦ Optional external mounting bracket and standard VESA mounting.
♦ Multi-size 10.1" to 55" optional,support OEM/ODM services.

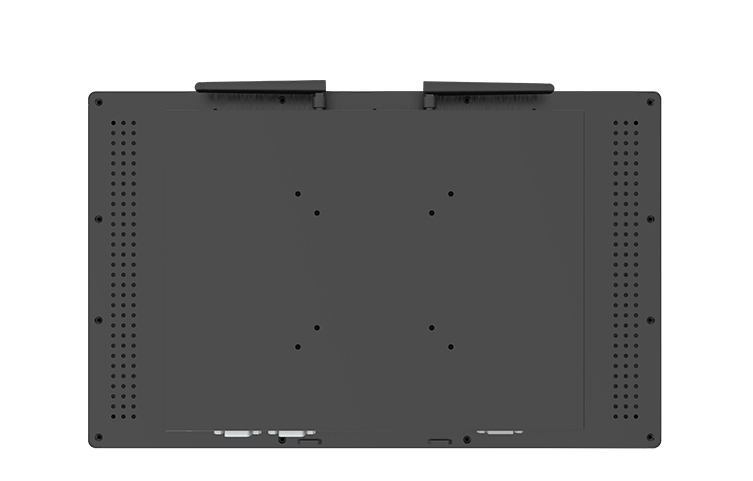

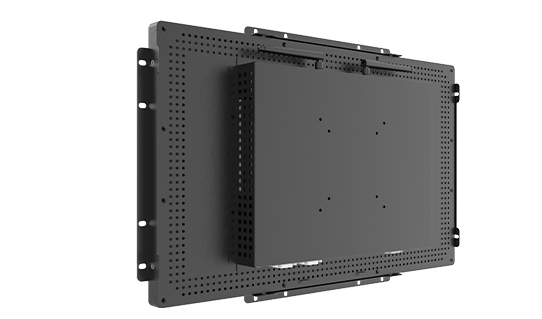

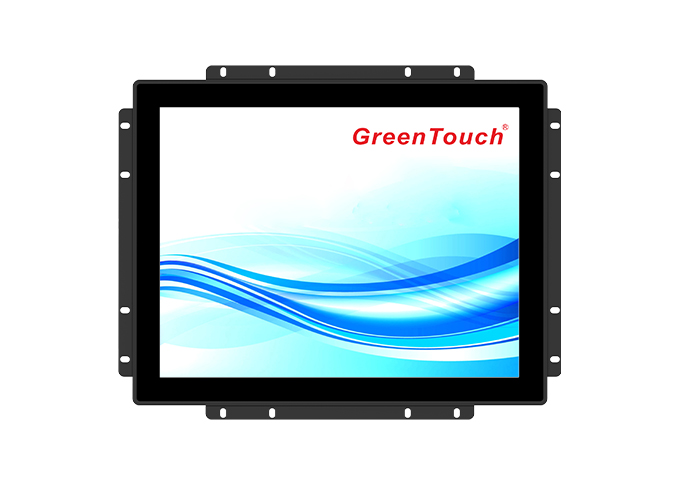

As shown the right picture 1,2C touch all-in-one (10.1" to 27") is equipped with external bracket for embedded installation,and the back shell is equipped with a standard VESA (100mm x 75mm) mounting hole for desktop or wall-mounted installation,these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios.As shown the right picture 2,2C touch screen computer (32" to 55") can equipped with the mounting bracket for embedded,wall mounted or movable base installation.

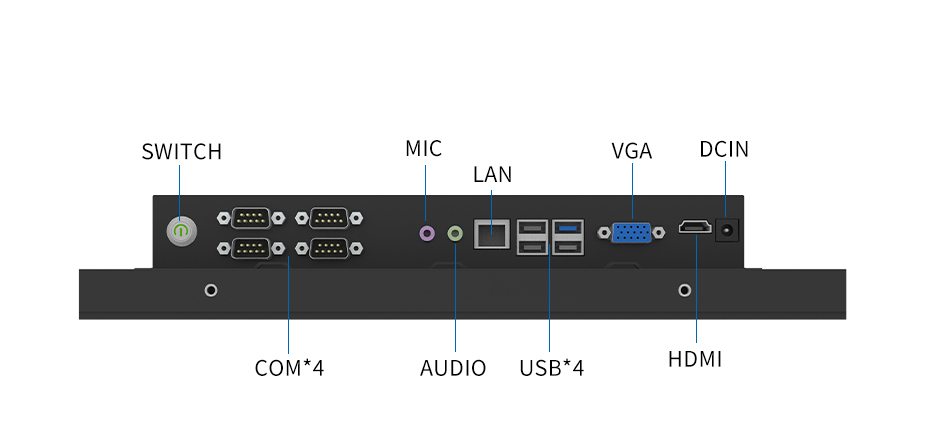

Touch all-in-One 2C is with a range of I/O ports and support a variety of third-party peripherals. The standard ports include four RS-232 serial ports, four USB ports, Gigabit Ethernet interface RJ45 and a group of 3.5MM audio input port and a group of audio output port, a VGA and an HDMI video output port to be easy to increase the second monitor.Using Intel Bay Trail-D chipset,Celeron J1900 and Intel Core series Intel Core I3-U Intel Core I5-U Intel Core I7-U.
① Product size
② Customer Logo
③ LCD brightness（350-1000 cd/m²）
④ Glass of surface treatment AG,AF,AR
⑤ Motherboard,memory,storage,systems optional
| Product Name: | Open Frame Touch All In One | Display Type： | Active Matrix TFT LCD, LED Backlight |
| Sizes： | 10.1",15",15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",55" | Case Color: | Backlight |
| Color： | 16.7 M | Touch Chip： | weida、eeti、ilitek |
| Touch Points： | 10 points | Touch Supply Voltage： | 5V |
| Touch Interface： | USB | Touch Systems： | Windows，linux |
| Motherboard： | Intel Bay Trail-d ， Celeron J1900 @1.99GHz，Intel Core Series Intel Core I3-U，Intel Core I5-U，Intel Core I7-U | Wifi: | Uilt-in 802.11b / g / n Wireless, External Two 3DB Omnidirectional Antenna |
| Sound Card: | Onboard Realtek ALC662HD Audio Decoding | RAM： | Optional 2GB、4GB、 8GB |
| MSTAT SSD: | Optional 32G、64G、128G、256G | HDD： | Optional Addition of 500G, 1T HDD |
| Graphics: | Onboard Intel HD graphics | Speakers: | Built-in 2*3W Speakers |
| Extra Video Output: | 1 x VGA; 1 x HDMI | USB Interface: | 4*USB TYPE-A |
| Network Card: | 1 Road Onboard Realtek 8111e Gigabit | Audio Interface: | 1*3.5mm Audio Input;1*3.5mm Audio Output |
| RS232 Interface: | 4*RS232(standard)Interfaces | Warranty: | 1 Year |
| Power： | External DC, Input Voltage DC: 12V INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) -Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1mm);Cartridge depth: 8.0 mm (± 0.3 mm); | ||
| Power Consumption: | Depend on Motherboard and the minimum is 25W | Temperature: | Operating: 0 ° C to 60 ° C; Storage: -20 ° C to 60 |
| Mounting Options: | 100mm or 75mm VESA mounting,open bracket mounting | Humidity: | Operating: 20% to 80% (non-condensing); Storage: 5%to 95% (non-condensing) |
| Supported OS: | Support Windows OS(suggest Windows7 up );Linux;Android | Water-proof/Dust-Explosion-proof: | IP65(front)/IK08(front) |
| Surface Treatmen: | AG ,AR ,AF (Oponital) | Certificates： | RoHS, FCC, CE, CB,HDMI |
| Size | Model | Ratio | Display Ports | Display Size(W*H*T) | Active Area Dimensions(H*V) | Brightness(nits) | Resolution @60Hz | Data Download |
| 10.1" | GT-TC-1012C-CTW-PC | 16:10 | VGA,HDMI | 263.8 x 178.8 x 45mm | 216.9 x 135.6mm | 330 | 1280 x 800 | Download |
15" | GT-TC-1502C-CTW-PC | 4:3 | VGA,HDMI | 355 x 279 x 57mm | 304.1 x 228mm | 300 | 1024 x 768 | Download |
15.6" | GT-TC-1562C-CTW-PC | 16:9 | VGA,HDMI | 398 x 248 x 47mm | 344.2 x 193.6mm | 400 | 1920 x 1080 | Download |
17" | GT-TC-1702C-CTW-PC | 5:4 | VGA,HDMI | 385 x 317 x 57mm | 337.9 x 270.3mm | 250 | 1280 x 1024 | Download |
| 18.5" | GT-TC-1852C-CTW-PC | 16:9 | VGA,HDMI | 457 x 281 x 57mm | 409.8 x 230.4mm | 250 | 1366 x 768 | Download |
19" | GT-TC-1902C-CTW-PC | 5:4 | VGA,HDMI | 430 x 355 x 57mm | 409.8 x 231mm | 250 | 1280 x 1024 | Download |
| 21.5" | GT-TC-2152C-CTW-PC | 16:9 | VGA,HDMI | 532 x 319 x 57mm | 476.6 x 268.1mm | 250 | 1920 x 1080 | Download |
| 22" | GT-TC-2202C-CTW-PC | 16:10 | VGA,HDMI | 527.2 x 350.2 x 60mm | 473.8 x 296.1mm | 250 | 1680 x 1050 | Download |
| 23.6" | GT-TC-2362C-CTW-PC | 16:9 | VGA,HDMI | 581.8 x 350.8 x 60mm | 521.3 x 293.2mm | 300 | 1920 x 1080 | Download |
| 23.8" | GT-TC-2382C-CTW-PC | 16:9 | VGA,HDMI | 586 x 356 x 57mm | 527 x 296.4mm | 250 | 1920 x 1080 | Download |
| 27" | GT-TC-2702C-CTW-PC | 16:9 | VGA,HDMI | 655.7 x 396 x 55mm | 597.9 x 336.3mm | 300 | 1920 x 1080 | Download |
| 32" | GT-TC-3202C-CTW-PC | 16:9 | VGA,HDMI | 749.1 x 452.7x 65mm | 698.4 x 392.9mm | 400 | 1920 x 1080 | Download |
| 43" | GT-TC-4302C-CTW-PC | 16:9 | VGA,HDMI | 1007.3 x 595.6 x 69mm | 940.9 x 525.3mm | 400 | 1920 x 1080 | Download |
| 49" | GT-TC-4902C-CTW-PC | 16:9 | VGA,HDMI | 1141.9 x 672.2 x 71mm | 1073.8 x 604mm | 380 | 1920 x 1080 | Download |
| 55" | GT-TC-5502C-CTW-PC | 16:9 | VGA,HDMI | 1277.7 x 748.5 x 70mm | 1209.6 x 680.4mm | 400 | 1920 x 1080 | Download |
