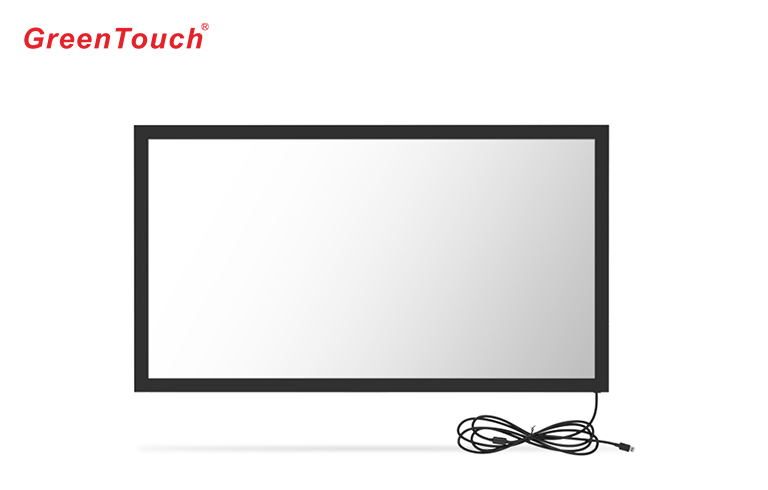

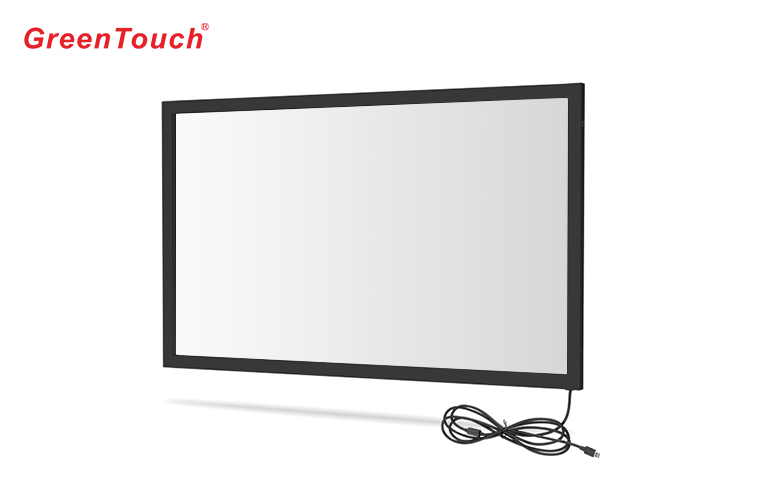

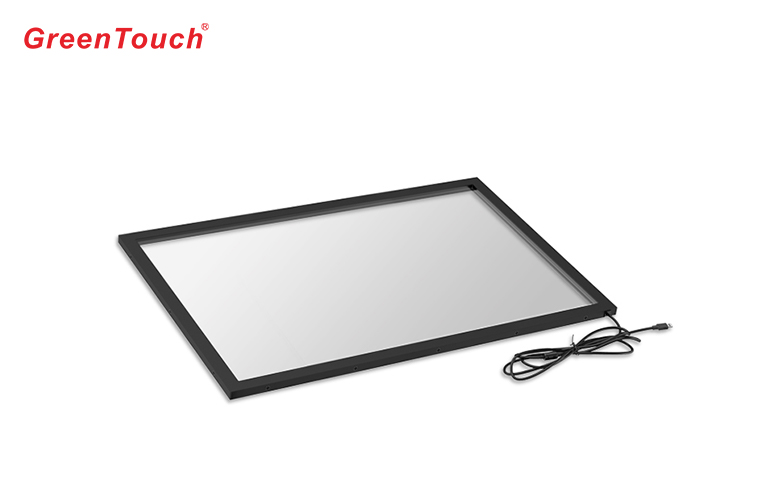

Product Name: Infrared Touch Screen
Regular Size：15"-23.6"
Touch Points：10 Touch Points
Material： Aluminium Frame+Tempered Glass
Interface：USB,Plug And Play
Certificates：CE,FCC,RoHS
Warranty：1 Year
Support Systems：Windows,Android,Linux,Mac

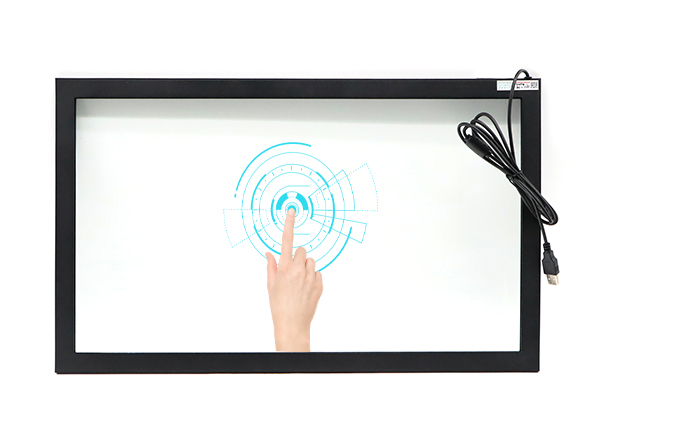

TK series infrared touch screen is an economical product newly developed by GreenTouch.It has own research and development procedures,the latest algorithm,high cost performance,10-point touch and other characteristics,can meet various customization needs.The ir touch screen are assembled in in a standardized assembly line.During the production process,they pass 100% IQC,OQC testing to ensure product quality.
♦ Pure plane structure,excellent craftsmanship,slim design,shell thickness 8mm,streamlined shape.
♦ 3mm tempered glass coverage can deal with violence impact easily,protects liquid crystal device better.
♦ LED tube core,stable performance,high touch precision,long life time.
♦ USB interface,plug and play,easy to install,maintenance free,wear-resistant,Sunlight-proof.
♦ Versatile touch object,super transparency,integrated controller.
♦ Support gesture,operable in various light conditions,indoor and outdoor.

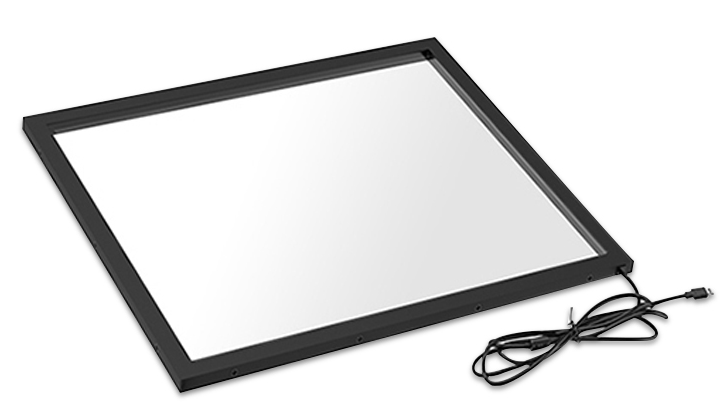

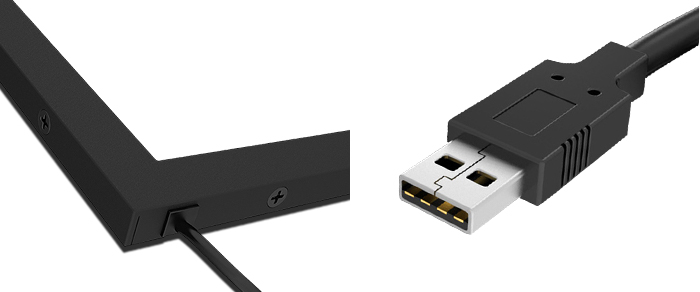

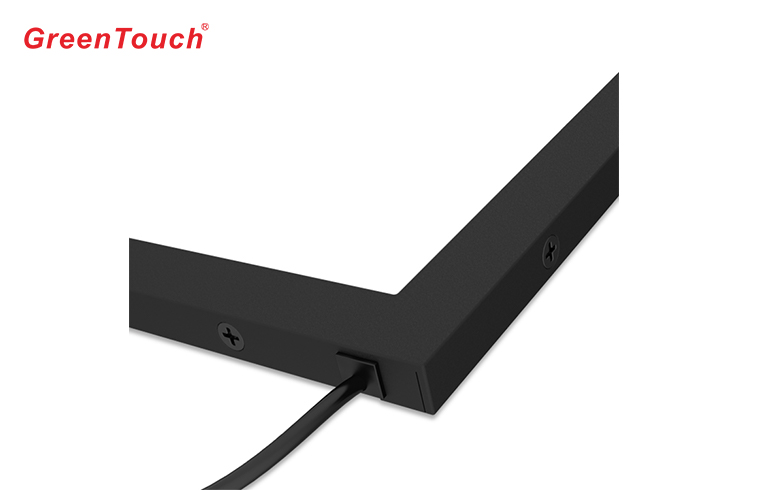

Aluminum alloy shell,strong,durable,not rusty,industrial aluminum alloy stretch forming and surface is made of high temperature black metal powder spraying process,not easy to fall off and lose color.Advanced chip,LED infrared receiving tube,aluminum alloy plug,free of driver.The USB recognition time prompts 3 times,transmission speed 480Mbps.
① Ir touch screen size
② Glass thickness
③ Customer LOGO
④ Glass of surface treatment AG,AF,AR
| Product Name: | Infrared Touch Screen TK Series | Touch Pressure: | Zero |
| Touch Points: | 10 Points | Material: | Aluminium Frame+ Tempered Glass |
| Transparency: | ＞92% | Touch Resolution: | 32768*32768 |
| Input Method: | Finger or Touch Pen | Response Speed: | <10ms |
| Touch Object: | >7mm In Diameter | Operating Voltage: | DC 5V ±5% |
| Operating Current: | <200mA | Interface: | USB,plug an play |
| About Noies: | No Noies | Transmission Speed: | 480Mbps |
| Temperature Operation: | –15°C to 55°C | Temperature Storage: | –40°C to 70°C |
| Durability: | Unlimited Touches | Sunlight-proof: | Support |
| Certificates: | CE,FCC,RoHS | Support Systems: | Windows,Android,Linux,Mac |

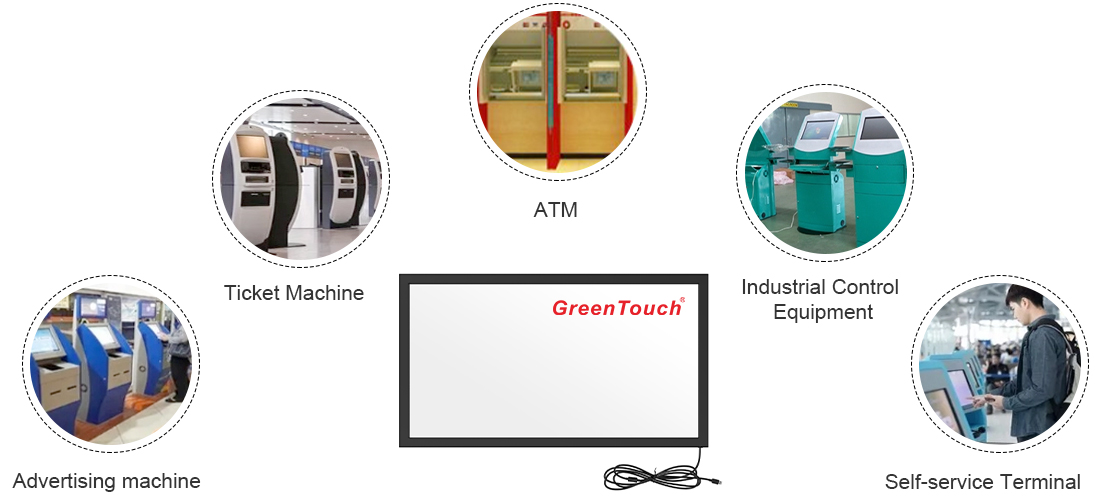

Product Applications
Ticket machines,advertising machines,self-service inquiry machines,bank ATM machines,industrial control equipment,touch tables,etc.

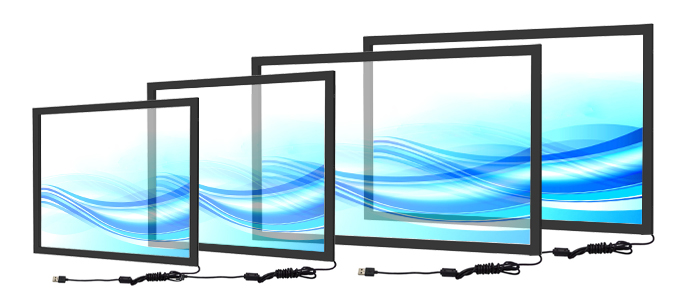

| Sizes | Model | Dimensions | View Area | Proportion | Interface | Drawing Download |
| 15" | GT-IR-TK15.0-1 | 347*272mm | 305*230mm | 4:3 | USB | |
| 15.6" | GT-IR-TK15.6-1 | 388*237mm | 346*195mm | 16:9 | USB | |
| 17" | GT-IR-TK17.0-1 | 382*314mm | 340*272mm | 4:3 | USB | |
| 18.5" | GT-IR-TK18.5-1 | 454*275mm | 412*233mm | 16:9 | USB | |
| 19" | GT-IR-TK19.0-1 | 420*345mm | 378*303mm | 4:3 | USB | |
| 19" | GT-IR-TK19.0-2 | 454*300mm | 412*258mm | 16:10 | USB | |
| 21.5" | GT-IR-TK21.5-1 | 520*311mm | 478*269mm | 16:9 | USB | |
| 22" | GT-IR-TK22.0-1 | 518*340mm | 476*298mm | 16:10 | USB | |
| 23.6" | GT-IR-TK23.6-1 | 565*337mm | 523*295mm | 16:9 | USB |
TK infrared touch screen driver download:
