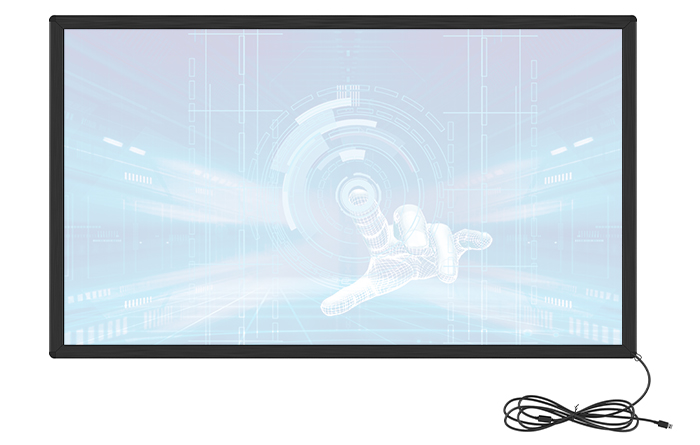

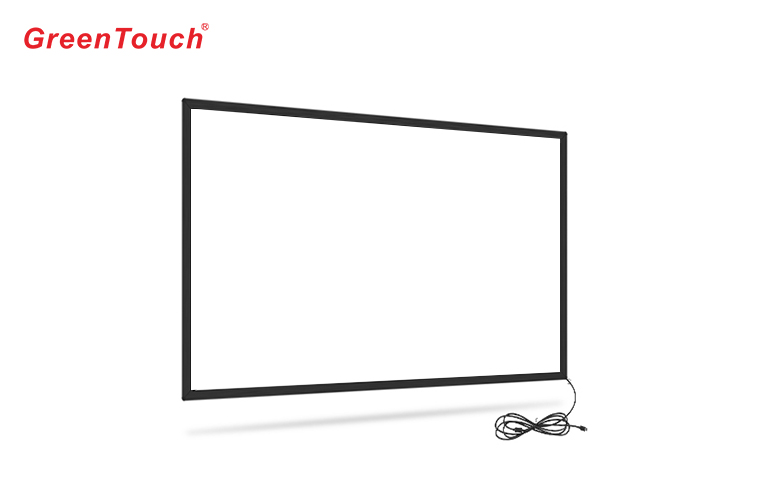

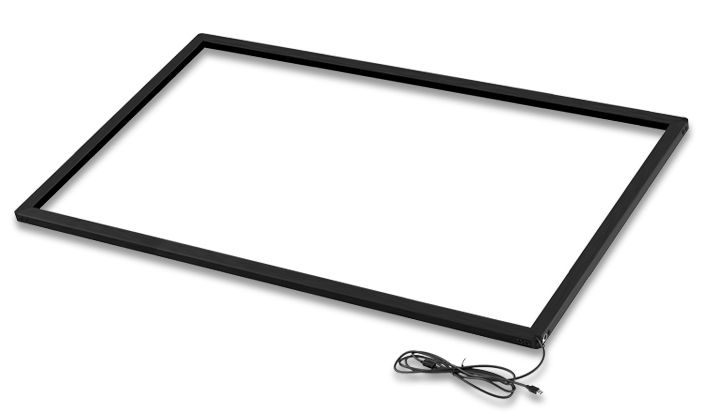

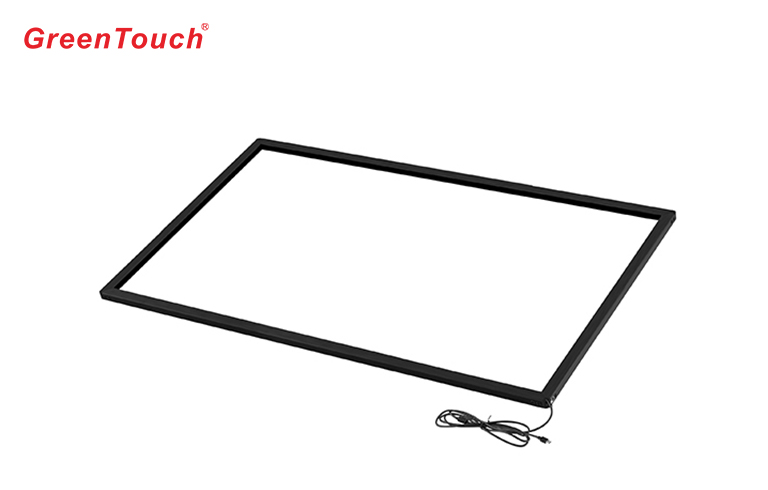

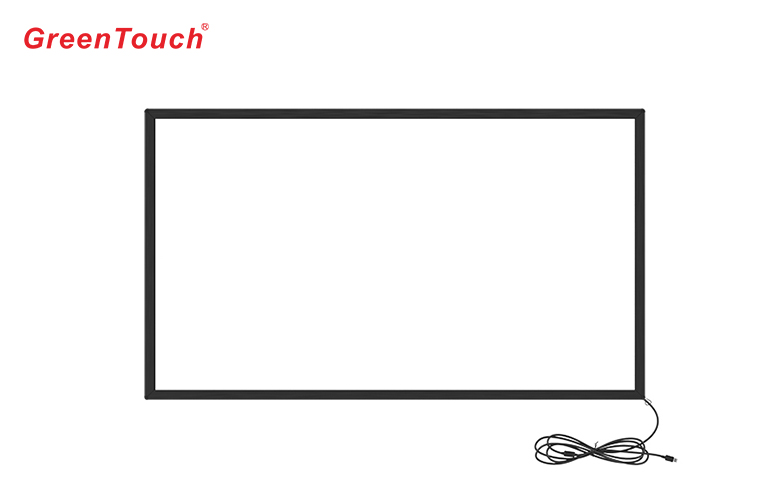

Product Name: Infrared Touch Frame

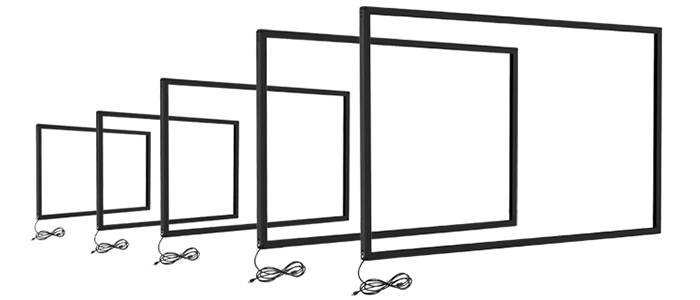

Regular Size：27"-98"
Touch Points：20 Points
Material： Aluminium Frame
Interface：USB,Plug And Play
Certificates：CE,FCC,RoHS
Warranty：1 Year
Support Systems：Windows,Android,Linux,Mac
GreenTouch's TB series infrared touch frame is a high-end,multi-point touch technology with perfect combination of tradition and innovation,they have the features of fast reaction speed,strong anti-environment light ability,good stability and easy integration.With the function of plug and play,without driver,any non-transparent object can change the infrared light.The ir touch screen are assembled in in a standardized assembly line.During the production process,they pass 100% IQC,OQC testing to ensure product quality.
♦ 100% light transmittance(no glass),sensitive operation,no disconnection,no ghosting or drift.
♦ Pure plane structure,excellent craftsmanship,slim design.
♦ LED tube core,stable performance,high touch precision,long life time.
♦ USB interface,plug and play,easy to install,maintenance free,wear-resistant,Sunlight-proof.
♦ Versatile touch object,super transparency,integrated controller.
♦ Support gesture,operable in various light conditions,indoor and outdoor.

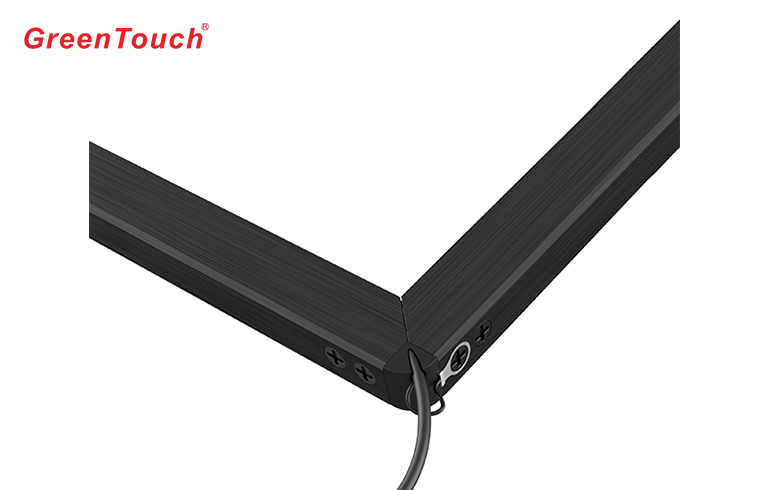

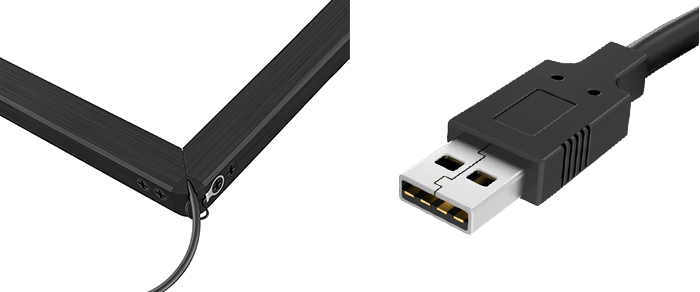

Aluminum alloy shell,strong,durable,not rusty.The surface is made of industrial high temperature black metal powder spraying process,which is not easy to fall off and lose color.Aluminum alloy plug,free of driver.The USB recognition time prompts 3 times,transmission speed 480Mbps.

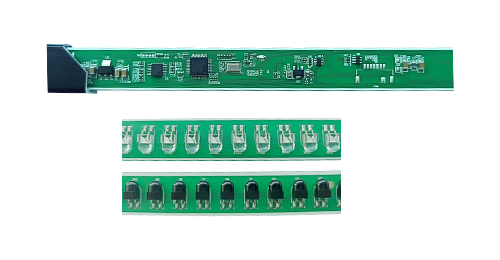

Advanced chip,LED infrared receiving tube,LED life time 60000 hours,LED tube core stable performance high touch precision long life time,even individual LED tube do not work,not affect the usage.
① Ir touch frame size
② Customer Logo
③ 27"-55"+ glass (optional)
④ 27"-55" glass thickness (optional)
| Product Name: | Infrared Touch Frame TB Series | Touch Pressure: | Zero |
| Touch Points: | 20 Points | Material: | Aluminium Frame |
| Transparency: | 100% | Touch Resolution: | 32768*32768 |
| Input Method: | Finger or Touch Pen | Response Speed: | <10ms |
| Touch Object: | >7mm In Diameter | Operating Voltage: | DC 5V ±5% |
| Operating Current: | <200mA | Interface: | USB,plug an play |
| About Noies: | No Noies | Transmission Speed: | 480Mbps |
| Temperature Operation: | –10°C to 50°C | Temperature Storage: | –20°C to 60°C |
| Durability: | Unlimited Touches | Sunlight-proof: | Support |
| Certificates: | CE,FCC,RoHS | Support Systems: | Windows,Android,Linux,Mac |
Product Applications
Game entertainment,advertising display,electronic education,public inquiry,medical service,automatic production,etc
TB infrared touch frame driver download：
TB driver:
Setting Software Download.zip
Installation instruction: download
